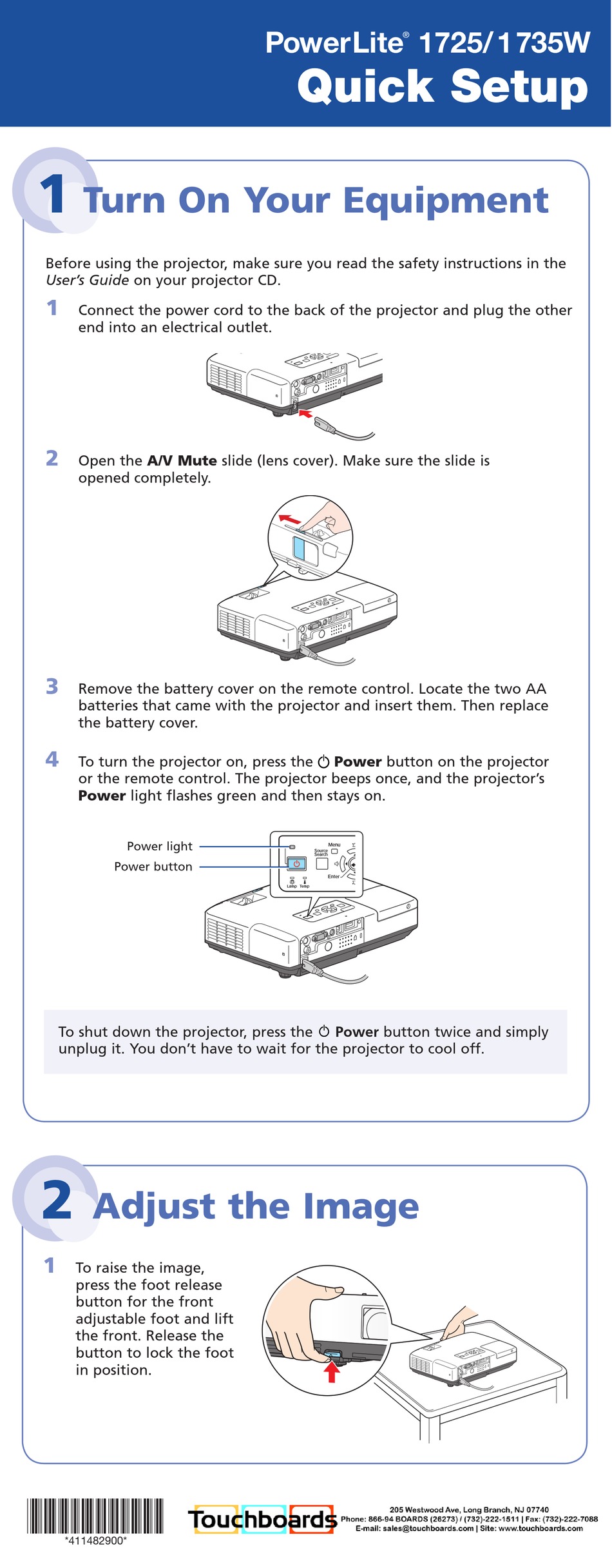

1
Turn On Your Equipment
Before using the projector, make sure you read the safety instructions in the
User's Guide on your projector CD.
1
C onnect the power cord to the back of the projector and plug the other
end into an electrical outlet.
2
O pen the A/V Mute slide (lens cover). Make sure the slide is
opened completely.
3
R emove the battery cover on the remote control. Locate the two AA
batteries that came with the projector and insert them. Then replace
the battery cover.
4
T o turn the projector on, press the Power button on the projector
or the remote control. The projector beeps once, and the projector's
Power light flashes green and then stays on.
Power light
Power button
To shut down the projector, press the Power button twice and simply
unplug it. You don't have to wait for the projector to cool off.
2
Adjust the Image
1
T o raise the image,
press the foot release
button for the front
adjustable foot and lift
the front. Release the
button to lock the foot
in position.
*411482900*
*411482900*
PowerLite
Quick Setup
1725/1735W
®
Advertisement
Related Manuals for Epson PowerLite 1725W
Summary of Contents for Epson PowerLite 1725W
- Page 1 PowerLite 1725/1735W ® Quick Setup Turn On Your Equipment Before using the projector, make sure you read the safety instructions in the User’s Guide on your projector CD. C onnect the power cord to the back of the projector and plug the other end into an electrical outlet. O pen the A/V Mute slide (lens cover). Make sure the slide is opened completely. R emove the battery cover on the remote control. Locate the two AA batteries that came with the projector and insert them. Then replace the battery cover. T o turn the projector on, press the Power button on the projector or the remote control. The projector beeps once, and the projector’s Power light flashes green and then stays on. Power light Power button To shut down the projector, press the Power button twice and simply unplug it. You don’t have to wait for the projector to cool off. Adjust the Image T o raise the image, press the foot release button for the front adjustable foot and lift the front. Release the button to lock the foot...
- Page 2 Turn the focus ring to sharpen the image. Turn the zoom ring to reduce or enlarge the image. Focus Zoom I f your image looks like , you’ve placed the projector off to one side of the screen at an angle. Place it directly in front of the screen, facing the screen squarely. I f your image looks like , press the buttons on the projector to correct it. Choose a Presentation Method How do you want to get images to the projector? • T o connect to a notebook, see “If connecting to a notebook” below. • T o project over a wireless network, see “If projecting wirelessly” on the USB cable (Windows only) VGA computer cable back of this sheet. • T o give a presentation stored on a flash drive, digital camera, or other USB storage device, see the EasyMP Operation Guide on your projector CD.
- Page 3 I f your projector and notebook don’t display an image, do the following: Windows: Hold down the Fn button on the keyboard and press the CRT/LCD or function key. If this doesn’t work, double-click Display in the Windows Control Panel. In Windows Vista , right-click ® on the desktop and select Personalize, then select Display Settings. Make sure both the LCD screen and monitor port are enabled. See your Windows online help for details. Mac OS ® From the Apple menu, select System Preferences, ® then click Display or Displays. Click Detect Display. Select the VGA Display or Color LCD dialog box, click the Arrangement (or Arrange) tab, and make sure Mirror Displays is checked. If projecting wirelessly... Follow the steps in this section to project over an 802.11g, 802.11b, or 802.11a wireless network from a computer running Windows 2000, XP, or Windows Vista, or Mac OS X 10.3 or later. Your computer must have a wireless card or built-in wireless interface. Y ou can also project wirelessly by using the Network Projector function in Windows Vista. See the User’s Guide for instructions. T urn the projector over and unscrew the wireless module cover.
- Page 4 You can use the registration card or CD included with your projector, or register online at www.epson.com/webreg. Epson and EasyMP are registered trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PowerLite and PrivateLine are registered trademarks of Epson America, Inc.
