Epson PowerLite 575W Quick Setup

PowerLite 570/575W/580/585W
®
Quick Setup
Before using the projector, make sure you read the safety instructions in the
online User's Guide.

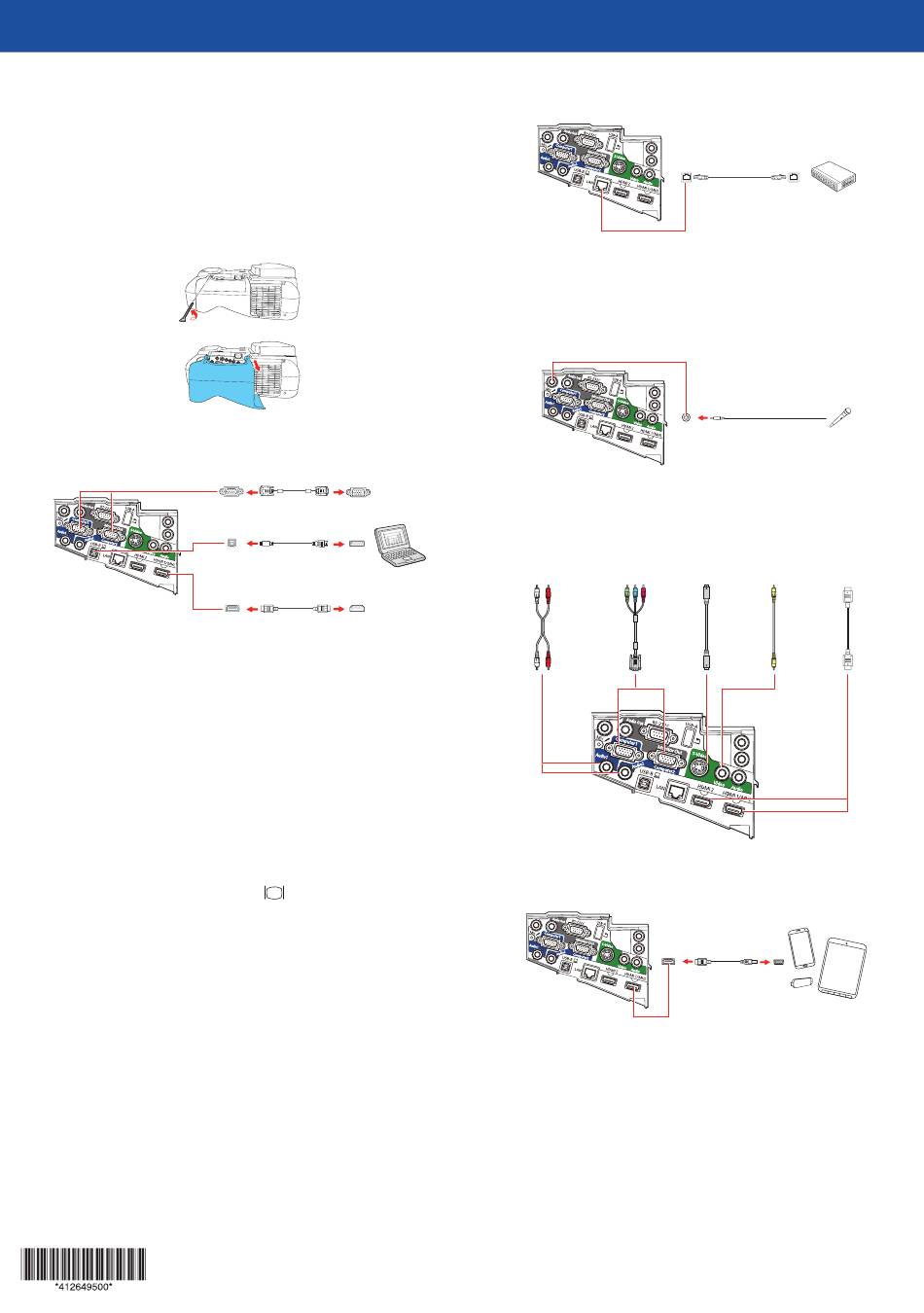

Connect the projector
Before you can connect to the projector, you need to remove the screws and
the cable cover.
Computer
Choose from the following connections. See the sections below or the online
User's Guide for details.
USB port
Connect the square end of a USB cable to the projector's USB-B (square) port.
Connect the flat end of the cable to any USB port on your computer.
Windows ® 2000 SP4 or later: After turning on the projector, follow
the on-screen instructions to install the Epson
(EMP_UDSE.EXE; only on first connection). If the software screen does not
display automatically, open My Computer or Computer, then double-click
EPSON_PJ_UD.
OS X 10.5.8 or higher: After turning on the projector, the setup folder for
USB Display appears in the Finder. Double-click USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software
(only on first connection).
Computer port
Connect one end of a VGA cable to the projector's Computer1 or Computer2
port, and the other end to your computer's
a laptop, switch it to external display (see "Troubleshooting"). You can also
connect an audio cable.
HDMI port
Connect one end of an HDMI cable to one of the projector's HDMI ports and
the other end to an HDMI port on your computer.
External monitor and speakers
You can connect an external monitor and external speakers to your projector
to enhance your presentations. See the online User's Guide for details.
VGA cable
USB cable
HDMI cable
® USB Display software
monitor port. If you are using
Wired network
Connect the projector to your network using an Ethernet cable. See "Project over
a wired network" for more information.
Note: To connect to a wireless network, you must install the optional Epson
Wireless LAN Module (ELPAP07). To purchase the Epson Wireless LAN Module
or other accessories, see "Optional accessories". For more information, see the
online User's Guide.
Microphone
Connect a dynamic microphone to the Mic port, using a 3.5 mm mini-jack cable.
Video device
Connect up to 6 video devices and use the Source Search button on the
projector or remote control to switch between them. For more information on
playing sound through the projector, see the online User's Guide.
Component video
Audio cable to VGA cable
Mobile media device
Connect tablets, smartphones, and other devices that support the MHL™
standard to the HDMI 1/MHL port.
Devices that support an MHL connection include the Samsung™ Galaxy Note II™
and the Roku ® Streaming Stick™. Some devices may require an adapter or may
not require an MHL cable. Not all features or functions may be supported. Check
your device's documentation for more information.
S-Video RCA video cable
cable (composite video) HDMI cable
MHL cable
