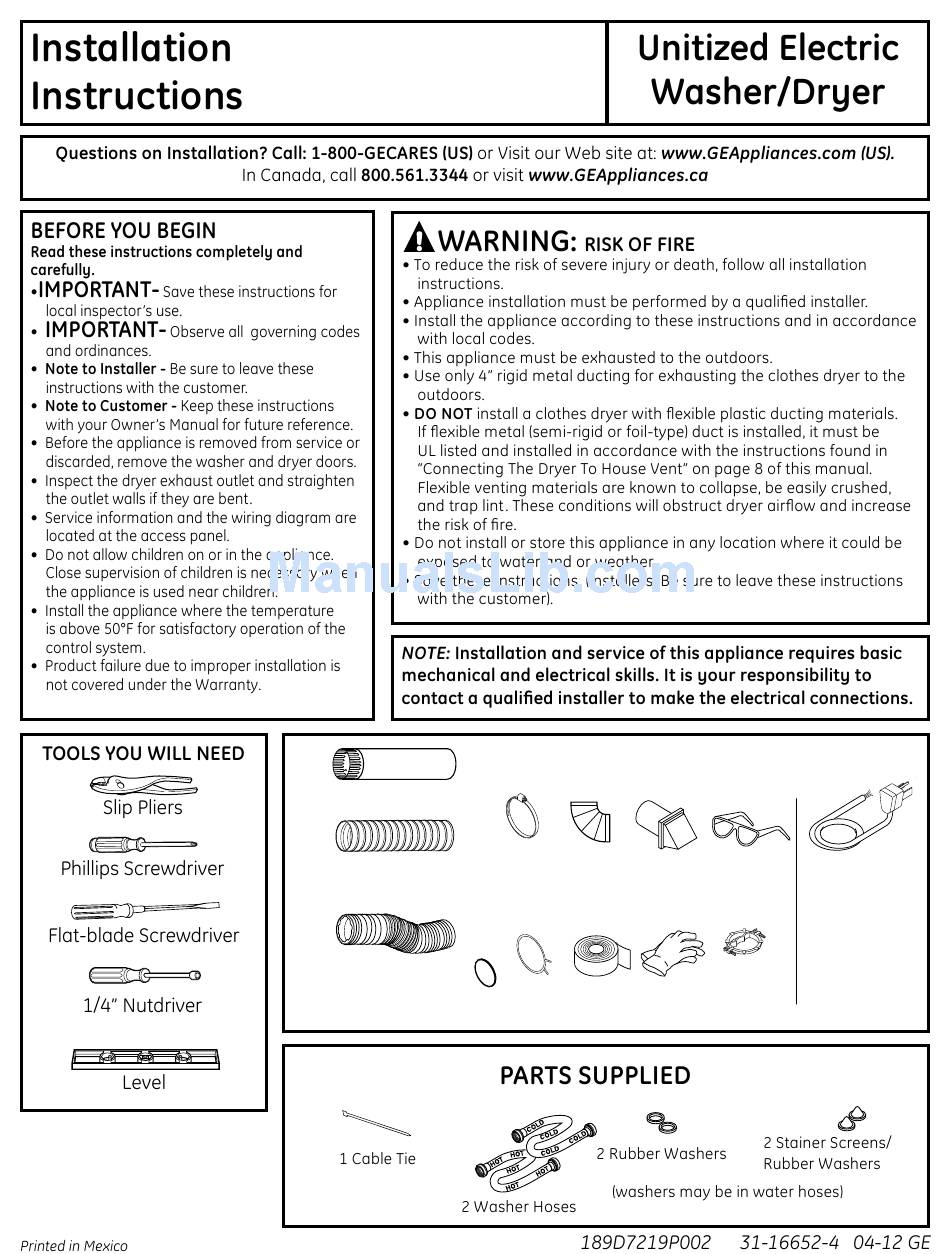

GE GTUN275EMWW Installation Instructions Manual
Unitized electric washer/dryer
Hide thumbs
Also See for GTUN275EMWW:
- Owner's manual (60 pages) ,
- Installation instructions manual (36 pages)
Advertisement
Quick Links
Download this manual
See also:
Owner's Manual
4" DIA. METAL DUCT
(RECOMMENDED)
4" DIA. FLEXIBLE METAL (SEMI-RIGID)
UL LISTED TRANSITION DUCT
(IF NEEDED)
KIT WX08X10077 (INCLUDES 2 ELBOWS)
4" DIA. FLEXIBLE METAL (FOIL TYPE)
UL LISTED TRANSITION DUCT
(IF NEEDED.)
4" COVER PLATE (IF NEEDED)
(KIT WE1M454)
MATERIALS YOU WILL NEED
4" DUCT
4" DIA. METAL
EXHAUST
CLAMPS (2)
ELBOW
HOOD
OR
4" SPRING
CLAMPS (2)
GLOVES
DUCT TAPE
SAFETY
APPLIANCE POWER
CORD KIT
GLASSES
(NOT PROVIDED)
UL RATED
120/240V,30A
WITH 3 OR 4 PRONGS.
IDENTIFY THE PLUG
3/4" STRAIN
TYPE AS PER THE
RELIEF
HOUSE RECEPTACLE
UL RECOGNIZED
BEFORE PURCHASING
LINE CORD.
Advertisement
Related Manuals for GE GTUN275EMWW
Summary of Contents for GE GTUN275EMWW
- Page 1 MATERIALS YOU WILL NEED 4" DIA. METAL DUCT (RECOMMENDED) 4" DUCT 4" DIA. FLEXIBLE METAL (SEMI-RIGID) CLAMPS (2) UL LISTED TRANSITION DUCT (IF NEEDED) KIT WX08X10077 (INCLUDES 2 ELBOWS) 4" SPRING CLAMPS (2) 4" DIA. FLEXIBLE METAL (FOIL TYPE) UL LISTED TRANSITION DUCT (IF NEEDED.) 4"...
- Page 4 WALL INTERNAL DUCT OPENING CHECK THAT EXHAUST HOOD DAMPER OPENS AND CLOSES FREELY. FLOOR...
- Page 5 GREEN GROUND GROUND STRAP SCREW WIRE SCREWS NEUTRAL (White) WIRE 3 #10 AWG MINIMUM COPPER COVER CONDUCTORS OR 120/240V 30A POWER SUPPLY CORD KIT MARKED FOR USE WITH DRYERS & PROVIDED WITH CLOSED LOOP OR SPADE TERMINALS WITH UPTURNED ENDS (NOT SUPPLIED). STRAIN RELIEF BRACKET REMOVE GROUND STRAP...
- Page 6 27” DRYER EXHAUST LENGTH RECOMMENDED MAXIMUM LENGTH Exhaust Hood Types Use only for short Recommended 4" DIA. 4" DIA. 4" No. of 90º Rigid Elbows Metal 56 Feet 44 Feet 34 Feet 24 Feet No. of 90º Elbows run installations 4"...
- Page 7 For straight line installation, connect the dryer exhaust to the external exhaust hood using duct tape or clamp. EXTERNAL DUCT OPENING DUCT TAPE OR DUCT CLAMP 4" METAL DUCT CUT TO PROPER LENGTH DUCT TAPE OR DUCT CLAMP LEVEL FRONT-TO-BACK. 2 LEVELING LEGS LEVEL SIDE-TO-SIDE.
- Page 16 FLOOR...
- Page 17 VIS VERTE DE MISE A FIXATION LA TERRE A LA MASSE NEUTRE (Blanc) 3 # 10 AWG MINIMUM CONDUCTEURS DE PROTECTION CUIVRE OU 120/240V 30A CORDON ELECTRIQUE, KIT MARQUE POUR UTILISATION AVEC SECHEUSES ET FOURNIT AVEC UNE BOUCLE FERMEE OU DES BORNES DE BASE AVEC DES EXTREMITES RETOURNEES (PAS INCLUT).
- Page 19 For straight line installation, connect the dryer exhaust to the external exhaust hood using duct tape or clamp. EXTERNAL DUCT OPENING DUCT TAPE OR DUCT CLAMP 4" METAL DUCT CUT TO PROPER LENGTH DUCT TAPE OR DUCT CLAMP...
- Page 28 FLOOR...
- Page 29 CINTA DE TORNILLO CONEXIÓN VERDE DE A TIERRA CONEXIÓN A TIERRA CABLE DE CARGA TORNILLOS NEUTRO CABLE DE (Blanco) CARGA CABLES ELÉCTRICOS CONDUCTORES DE COBRE TAPA NÚM. 10 AWG DE POR LO MENOS 3 HILOS O KIT DE CABLE DE CORRIENTE DE 120/ 240V 30A MARCADO PARA USO CON SECADORAS Y PROVISTO CON TERMINALES DE BUCLE CERRADO O CON HORQUILLA CON EXTREMOS...
- Page 31 For straight line installation, connect the dryer exhaust to the external exhaust hood using duct tape or clamp. EXTERNAL DUCT OPENING DUCT TAPE OR DUCT CLAMP 4" METAL DUCT CUT TO PROPER LENGTH DUCT TAPE OR DUCT CLAMP...
