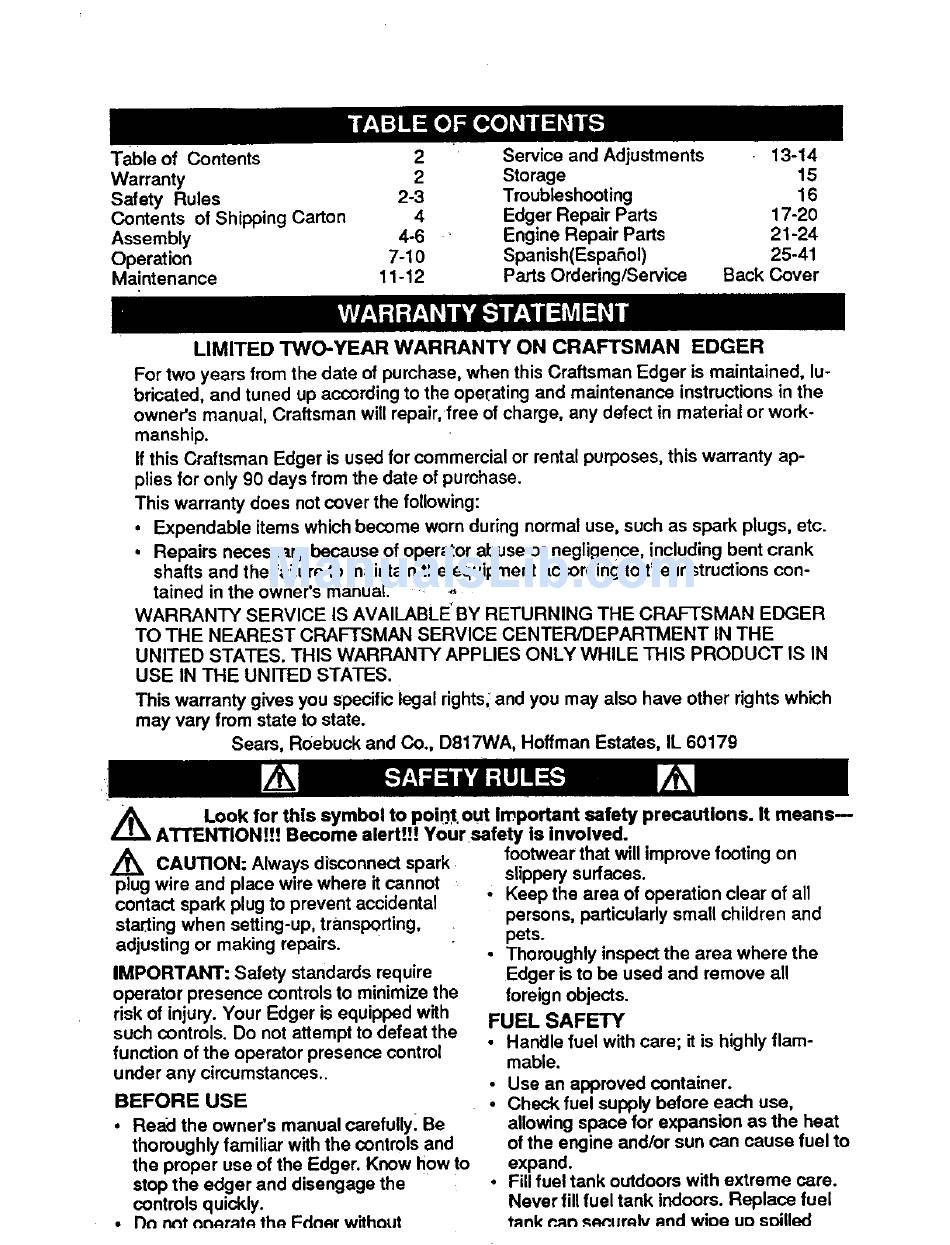

Table of Contents 2
Warranty 2
Safety Rules 2-3
Contents of Shipping Carton 4
Assembly 4-6
Operation 7-10
Maintenance 11-12
Service and Adjustments 13-14
Storage 15
Troubleshooting 16
Edger Repair Parts 17-20
Engine Repair Parts 21-24
Spanish(EspaSol) 25-41
Parts OrderinglService Back Cover
LIMITED TWO-YEAR WARRANTY ON CRAFTSMAN EDGER
For two years from the date of purchase, when this Craftsman Edger is maintained, lu-
bricated, and tuned up according to the operating and maintenance instructions in the
owner's manual, Craftsman will repair, free of charge, any defect in material or work-
manship.
If this Craftsman Edger is used for commercial or rental purposes, this warranty ap-
plies for only 90 days from the date of purchase.
This warranty does not cover the following:
• Expendable items which become worn during normal use, such as spark plugs, etc.
• Repairs necessary because of operator abuse or negligence, including bent crank
shafts and the failure to maintain the equipment according to the instructions con-
tained in the owner's manual _ ,*
WARRANTY SERVICE IS AVAILABLE_BY RETURNING THE CRAFTSMAN EDGER
TO THE NEAREST CRAFTSMAN SERVICE CENTER/DEPARTMENT IN THE
UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN
USE IN THE UNITED STATES.
This warranty gives you specific legal rights,_and you may also have other rights which
may vary from state to state.
Sears, Roebuck and Co., D817WA, Hoffman Estates, IL 60179
_, Look for thls symbol to poin._t,out Important safety precautions. It means--
LL.% ATTENTION hv!Become alertV.!! Your safety is involved.
Z_ CAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug to prevent accidental
starling when setting-up, transporting,
adjusting or making repairs.
IMPORTANT: Safety standards require
operator presence controls to minimize the
risk of injury. Your Edger is equipped with
such controls. Do not attempt to defeat the
function of the operator presence control
under any circumstances.
BEFORE USE
• Read the owner's manual carefully_ Be
thoroughly familiar with the controls and
the proper use of the Edger. Know how to
stop the edger and disengage the
controls quickly.
• I')n nnt nn_rAtA th_ Fdn_r without
footwear that will improve footing on
slippery surfaces.
• Keep the area of operation clear of all
persons, particularly small children and
pets.
• Thoroughly inspect the area where the
Edger is to be used and remove all
foreign objects.
FUEL SAFETY
• Hanldle fuel with care; it is highly flam-
mable.
• Use an approved container.
• Check fuel supply before each use,
allowing space for expansion as the heat
of the engine and/or sun can cause fuel to
expand.
• Fill fuel tank outdoors with extreme care.
Never fill fuel tank indoors. Replace fuel
tRnk P.Rn._l_e_.llrcllv and wioe uo soilled
