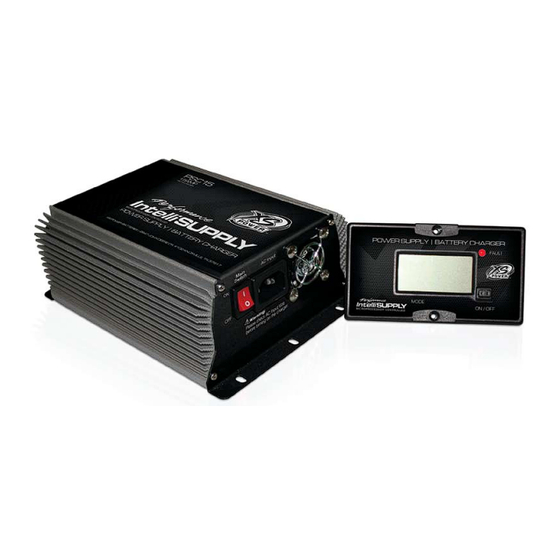

- Page 1 User GUide Microprocessor Controlled Multi-Stage 12V/14V/16V Automatic Power Supply and Battery Charger P/N PSC15 / PSC30 / PSC60 Sleek On-Board Design / Remote LCD Display Three Mode Operation / XS Flex Output Leads / 120V & 230V AC Input...
- Page 2 Xs Power IntellisUPPLY User Guide About Xs Power XS Power designs and manufactures custom charging solutions for street rods, racing applications, and the mobile audio industry. These products include high performance batteries, chargers, and related accessories. Trademarks Trademarks, registered trademarks, and product names are the property of their respective owners and are used herein for identification purposes only.
-
Page 3: Table Of Contents
Contents XS Power IntelliSUPPLY User Guide Chapter 1, Introduction .............. p. 1-6 Quick Start Guide Chapter 1 contains information on safety guidelines, and the features, switches, and indicators on the front panel of the IntelliSUPPLY. Chapter 2, Operation ................ p. 7-11 Chapter 2 explains how to operate the IntelliSUPPLY correctly to charge a performance battery and use the power supply feature. - Page 4 XS Power IntelliSUPPLY User Guide Chapter 1 General safety Precautions WARNING: Before installing and using the charger, read all instructions and cautionary markings on the charger, the batteries, and all appropriate sections of this guide. 1) Do not expose the IntelliSUPPLY to rain, snow, spray, or bilge water. To reduce risk of fire hazard, do not cover or obstruct the ventilation openings.
- Page 5 The wireless remote and digital display makes the IntelliSUPPLY very easy to use. Multi-Stage Charging At the heart of the technology in the XS Power IntelliSUPPLY are the three distinct charging stages and DC power output. During the first stage, called “Bulk” charging, the charger will regulate the current the voltage is allowed to float.
-
Page 6: Chapter 1, Introduction
Front and rear Panel XS Power IntelliSUPPLY User Guide Chapter 1 switches and indicators PsC15 / PsC30 Product introduction WARNING: Before installing and using the PSC unit, read all instructions and cautionary markings on the unit, the batteries, and all appropriate sections of this guide. - Page 7 XS Power IntelliSUPPLY User Guide Chapter 1 Warning : Don't reverse the (+) and (-) of the battery! Or internal damage will result! IMPORTANT: Before charging, read the instructions. Disconnect the PSC unit before making or 12V 14V 16V breaking the connections to the battery.
- Page 8 Location: XS Power IntelliSUPPLY User Guide Chapter 1 Physical requirements requirements For installation IMPORTANT: This product is best mounted in a Horizontal position. If the unit is mounted in a vertical position the Cooling Fan Must Be at the bottom of the unit.
- Page 9 IntellisUPPLY LCd remote XS Power IntelliSUPPLY User Guide Chapter 1 LCd remote display fault indicator battery volt battery capacity ON/OFF switch charging mode charging current power supply DC output volt fault indicator (red lighting) output current ON/OFF switch fault indicator (red lighting)
-
Page 10: Chapter 2, Operation
Operation XS Power IntelliCHARGER User Guide Chapter 2 Charging Lead-Acid Batteries WARNING: Before you start to charge batteries read the “Important Safety Instructions” on page (1) and take all safety precautions when working with batteries. The IntelliSUPPLY has been designed to provide fully automatic recharge of 12V, 14V and 16V AGM and gel-cell batteries. - Page 11 PsC15 specifications XS Power IntelliSUPPLY User Guide Chapter 2 PSC15 MODEL INPUT 120VAC (90~130VAC) Voltage Range 60Hz Frequency Range >=85% Efficiency 1.0 at full load (±5%) Power Factor IEC plug Input Socket OUTPUT Charge Mode Recovery Mode Power Supply Mode...
- Page 12 PsC30 specifications XS Power IntelliSUPPLY User Guide Chapter 2 PSC30 MODEL INPUT 120VAC (90~130VAC) / 230VAC (180~264VAC) Voltage Range 45 ~ 65Hz Frequency Range >=85% Efficiency 1.0 at full load (±5%) Power Factor IEC plug Input Socket OUTPUT Charge Mode...
- Page 13 PsC60 specifications XS Power IntelliSUPPLY User Guide Chapter 2 PSC60 MODEL INPUT 120VAC (90~130VAC) / 230VAC (180~264VAC) Voltage Range 45 ~ 65Hz Frequency Range >=85% Efficiency 1.0 at full load (±5%) Power Factor IEC plug Input Socket OUTPUT Charge Mode...
- Page 14 10) Do not attempt to remove the vent covers on sealed lead-acid batteries such as the XS Power 16V AGM battery. Sealed batteries operate on a slight positive cell pressure. Venting this pressure will ruin the battery.
-
Page 15: Chapter 3, Troubleshooting
Troubleshooting XS Power IntelliSUPPLY User Guide Chapter 3 Chapter 3 will help you identify and remedy the common problems than can occur with the IntelliSUPPLY. Please read this chapter before calling Customer Service. If you cannot solve the problem with the IntelliSUPPLY, record the information asked for on “Information About Your System”... -
Page 16: Appendix A, Specifications
Appendix A XS Power IntelliSUPPLY User Guide Appendix A specifications important: PSC15(15A), PSC30(30A), PSC60(60A) Output – Three amperage output models to choose from and isolated outputs for powering any size load. Specifications are subject to change without notice. Physical specifications - Dimensions ....... -
Page 17: Appendix B, Battery Charging
Appendix B XS Power IntelliSUPPLY User Guide Appendix B Battery Charging Appendix B describes battery charging in more detail. The IntelliSUPPLY charges batteries in a sequence known as multi-stage charging. The charging voltage delivered to the battery depends on the battery’s depth of discharge. -
Page 18: Faqs
FAQ’s XS Power IntelliSUPPLY User Guide Figure B-1 Three-stage charging profile FAQ’s Can I change the clamps on the charger with quick disconnects? Yes. We recommend soldering all electrical connections where possible. Can I run my electric water pump and cooling fan while charging? Yes with a word of caution. - Page 19 Therefore the size of the batteries and their depth of discharge will play a role in the answer here. Given they were all XS Power 16V AGM batteries with a size of 45Ah at 100% discharged, you can charge up to four in parallel in ten hours.
-
Page 20: Warranty
XS Power. There will be no obligations or liability on the part of XS Power for consequential damages arising from the use of the product or any indirect damages with respect to loss of property, revenue, or costs for removal, installation, or reinstallation. -
Page 21: Contact Information
XS Power IntelliSUPPLY User Guide Info/Contact Your system Tell Us About Your system As soon as you unpack your XS Power IntelliSUPPLY, record the following information and be sure to keep your proof of purchase. Serial Number (on back panel) Purchased From Purchase Date If you need to contact Customer Service, please record the following details before calling. - Page 22 8 6 5 . 6 8 8 . 5 9 5 3 x s p o w e r b a t t e r i e s . c o m...
