Black & Decker EASYEDGE BDPE200 Instruction Manual

tm
EasyEdgE
inStruction manual
catalog number
bDpe200
Thank you for choosing Black & Decker! To regisTer your new proDucT go To
www.BlackanDDecker.com/newowner
please reaD Before reTurning This proDucT for any reason.
if you have a question or experience a problem with your Black & Decker purchase,
go to http://www.blackanddecker.com/instantanswers
if you can't find the answer or do not have access to the internet,
call 1-800-544-6986 from 8 a.m. to 5 p.m. esT mon. - fri. to speak with an agent.
please have the catalog number available when you call.
save This manual for fuTure reference.
vea el espanol en la conTraporTaDa.
insTrucTivo De operaciÓn, cenTros De servicio y pÓliZa De garanTÍa.
aDverTencia: lÉase esTe insTrucTivo anTes De usar el proDucTo.
Safety guiDelineS - DefinitionS
It is important for you to read and understand this manual. The information it contains
relates to protecting your Safety and preventing problemS. The symbols below
are used to help you recognize this information.
Danger:
Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
Warning:
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
caution:
Indicates a potentially haz ard ous situation which, if not avoided,
may result in minor or mod er ate injury.
notice:
Used without the safety alert symbol indicates potentially hazardous
situation which, if not avoided, may result in property damage.
Warning: read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in electric shock, fire
and/or serious injury.
Save all WarningS anD inStructionS for future reference
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Save tHeSe inStructionS
1) WorK AreA SAfety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) perSonal Safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) use personal protective equipment. always wear eye protection. Protective equipment such
as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
c) prevent unintentional starting. ensure the switch is in the off position before connecting to
power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energizing power tools that have the switch on invites accidents.
d) remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) if devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
3) poWer tool uSe anD care
a) Do not force the power tool. use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e) maintain power tools. check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool's operation. if damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) use the power tool, accessories and tool bits, etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
4) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
Specific Safety ruleS
• Do not use this paint edger for purposes other than described in this manual. Failure to do so
may result in injury to persons and or property damage.
• Keep hands out of the plunger drive area of the paint edger. Fingers can be pinched
between the plunger drive and the plunger.
• use only with water soluble based paints. Not for use with oil based paints and stains (refer to label
on original paint container). Do not use with paint removers, solvents, or the like. Liquids other than paint
may damage product and result in injury to persons or property damage.
• always read and follow the label on the original paint container and follow all
directions. Failure to do so may result in injury to persons or property damage.
• always use proper eye protection and other safety equipment for skin and respiratory
protection when mixing the paint, and when filling, using, and cleaning the product. Paint and its
fumes can cause personal injury.
• to reduce the risk of injury, always work in a properly ventilated area and wear
appropriate respiratory protection if necessary. Fumes from some paints can be noxious.
• thoroughly clean and rinse product after using with a particular paint. Mixing different paints in
the product may cause personal injury and or result in property damage.
• to reduce the risk of injury, use only recommended accessories.
• When servicing, use only identical replacement parts. Failure to do so may result in personal injury.
The label on your tool may include the following symbols.
V ........................... volts
Hz ......................... hertz
min ........................ minutes
...................... direct current
.......................... Class II Construction
........................ safety alert symbol

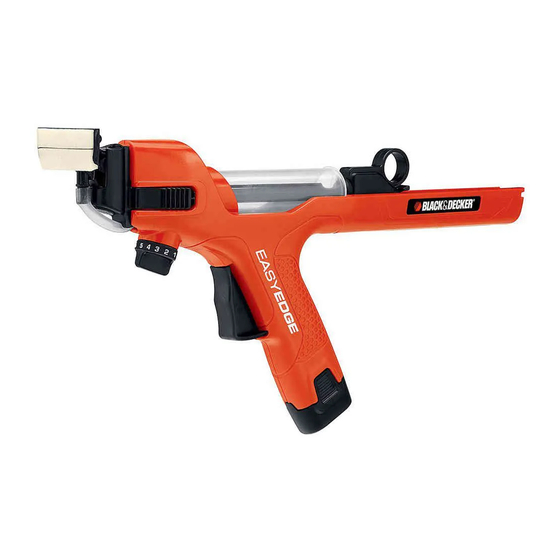

functional DeScription
(figure a)
1. Main Body
2. On/Off Trigger
3. Flow Control Knob
4. Battery Cap
5. Battery Cap Release Tabs
6. Paint Applicator*
7. Paint Applicator Release Tabs
8. Paint Tube*
9. Plunger*
10. Plunger Drive
11. Fill Sleeve
12. Fill Sleeve Locking Tabs
13. Fill Sleeve Paint Can Clips
*Applicator head, Paint tube, Plunger are made of Acetyl, ABS, Polypropylene and Poly Ethylene. Please ensure
your local recycling agencies can recycle these materials together. Parts must be washed before being recycled.
aSSembly
battery inStallation
Warning:
To reduce this risk:
• Carefully follow all instructions and warnings on the battery label and package.
• Always insert batteries correctly with regard to polarity (+ and -), marked on the battery and
the equipment.
• Do not short battery terminals.
• Do not charge batteries.
• Do not mix old and new batteries. Replace all of them at the same time with new batteries of
the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
• Keep batteries out of reach of children.
• Remove batteries if the device will not be used for several months.
"Transporting batteries can possibly cause fires if the battery terminals inadvertently come
in contact with conductive materials such as keys, coins, hand tools and the like. The US
Department of Transportation Hazardous Material Regulations (HMR) actually prohibit
transporting batteries in commerce or on airplanes (i.e. packed in suitcases and carryon
luggage) UNLESS they are properly protected from short circuits. So when transporting
individual batteries, make sure that the battery terminals are
protected and well insulated from materials that could contact
them and cause a short circuit".
• Remove the battery cap (4) by pressing in the battery release
tabs (5) and then sliding the battery cap (4) off the handle.
• Insert 3 fresh 1.5 volt AA batteries into the handle as
shown in figure b.
• Refit the battery cap (4) by sliding it back on to the handle
until it is firmly seated.
note: Always place batteries correctly according to the
polarity (+ and -) as marked on the battery and the tool.
inStalling tHe paint applicator (C)
• Press in the paint applicator release tabs (7).
• Slide the paint applicator into the front of the main body (1)
of the paint edger until it is firmly seated.
• Release the tabs.
note: The paint applicator can not be fitted with the paint
tube in place.
removing tHe paint applicator
• Press in the paint applicator release tabs (7).
• Slide the paint applicator out of the main body (1) of the paint edger.
• Release the tabs (7).
note: The paint applicator can not be removed with the paint tube in place.
inStalling tHe paint tube (D, E)
note: The paint tube can not be attached until the paint applicator has been installed.
• Pull the plunger drive (10) to the back of the main body of
the paint edger and clip it in place as shown in figure D.
• Slide the paint tube (8) forward into the main body of the
paint edger as shown in figure e.
ntoe: Ensure the paint tube is fully seated in the main body
by firmly pressing it forward.
• Pull the plunger drive back and up to release it, then gently
guide the plunger drive's tip into the recess on the top of
the plunger.
note: The plunger drive will not push the plunger until it
has been unclipped from the locked position.
removing tHe paint tube
• Pull the plunger drive to the back of the main body of the
paint edger and clip it in place.
• Pull paint tube backwards and lift the paint tube out of the
main body of the paint edger.
Get other manuals https://www.bkmanuals.com
A ......................... amperes
W ........................ watts
n o ....................... no load speed
........................ earthing terminal
.../min ......................revolutions or
Save tHeSe inStructionS
a
6
7
12
3
2
11
5
13
batteries can explode, or leak, and can cause injury or fire.
.......................alternating current
reciprocations per
minute
8
1 9
4 10
b
c
D
e
