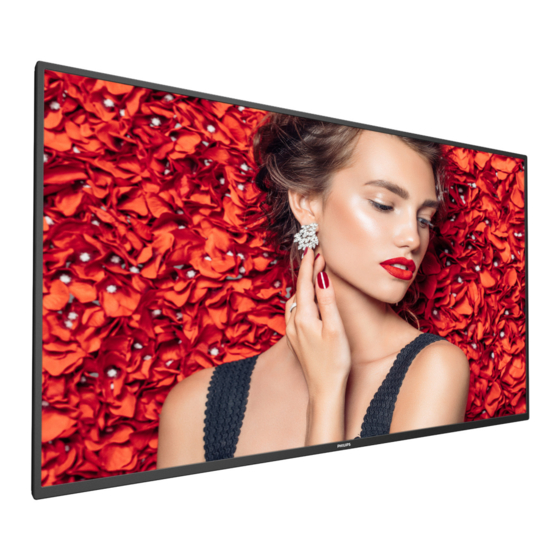

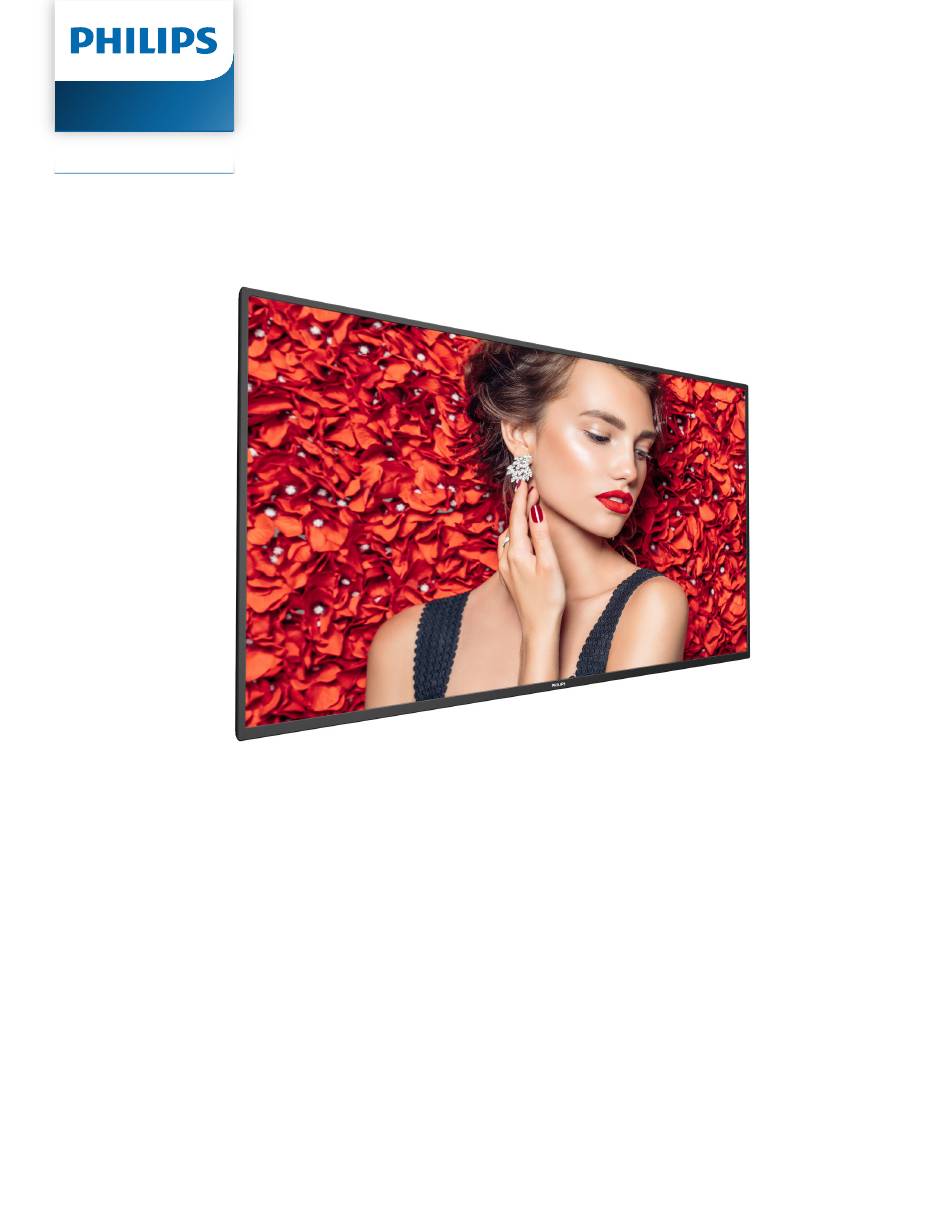

- Page 1 Professional Display Solutions D Line 98BDL4510D User Manual (English) www.philips.com/welcome...
- Page 2 When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •...
- Page 3 98BDL4510D • Only the lifetime of the display stated in this specification is guaranteed if the display is used under the proper operation conditions. IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content.
- Page 4 98BDL4510D ESD Warnings When user close to the monitor may cause the equipment discharge and reboot to the display of main menu while USB media playing. Warning: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference.
- Page 5 98BDL4510D Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
- Page 6 98BDL4510D Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2.
- Page 7 98BDL4510D China RoHS 根据中国大陆《电器电子产品有害物质限制使用管理办法》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 液晶显示屏 电路板组件* 电源适配器 电源线/连接线 遥控器 本表格依据SJ/T 11364 的规定编制。 *: 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 上表中打 “X” 的部件， 应功能需要， 部分有害物质含量超出GB/T 26572规定的限量要求， 但符合欧盟 RoHS法规要求...
- Page 8 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
- Page 9 For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index. page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
- Page 10 98BDL4510D Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
-
Page 11: Table Of Contents
98BDL4510D Table Of Contents 5.2.3. Audio ..........20 5.2.4. Configuration1 menu ....... 20 5.2.5. Configuration2 menu ......21 Unpacking and Installation ........1 5.2.6. Option ..........22 1.1. Transportation and Unpacking ...... 1 Supported Media Formats ........25 1.2. Package Contents ..........4 1.3. -
Page 12: Unpacking And Installation
98BDL4510D Unpacking and Installation 1.1. Transportation and Unpacking Notice for transportation • Always keep the carton in a vertical position. Do NOT place the carton in any other direction. • Do NOT place any object on the carton. • Do NOT apply shock/vibration to the product. •... - Page 13 98BDL4510D Unpacking 1. Remove the strap around the carton. 2. Use a blade to cut the tape on the top and open the carton. 3. Take out the cushions carefully. 4. Remove the plastic carton lockers and the top carton.
- Page 14 98BDL4510D 5. Move the display from the carton by two adults with both hands. • Do not touch the screen of display to avoid • Keep the display vertically when moving it. possible scratches. Move the display by holding the handles. 90°...
-
Page 15: Package Contents
IR Sensor cable * The supplied power cord varies depending on destination. • AC Switch cover • USB cover • Philips logo plate Power Cord RS232 Cable RS232 Daisy Chain Cable IR Sensor Cable Philips logo plate AC Switch Cover x 1 USB Cover x 1 * Differences according to regions. -
Page 16: Mounting On A Wall
98BDL4510D 1.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complies with TUV-GS and /or UL1678 standard in North America. Protective Sheet VESA Grid Table... -
Page 17: Mounting In Portrait Orientation
98BDL4510D 1.5. Mounting in Portrait Orientation This display can be installed in portrait orientation. Rotate the display 90 degrees Clockwise. The “ ” logo should be on the left side when facing the display. 90° 90° 1.5.1. How to remove the logo 1. -
Page 18: Parts And Functions
98BDL4510D Parts and Functions 2.1. Control Panel [ ] button [MENU] button Press this button to turn the display On or turn the Return to the previous menu while the OSD menu is On. display to standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off. -
Page 19: Input/Output Terminals
98BDL4510D 2.2. Input/Output Terminals RJ45 USB 2.0 Service Port PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 RS232 DP IN DP OUT HDMI 2 IN HDMI 3 IN HDMI OUT HDMI 1 IN DVI-I IN 10 11 AC IN AUDIO OUT AC power input from the wall outlet. -
Page 20: Remote Control
98BDL4510D 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby mode. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose NORMAL Network HDMI 1... -
Page 21: Id Remote Control
98BDL4510D 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set the remote control ID if you intend to use this remote ID Mode. The red LED lights up. control on several different displays. -
Page 22: Inserting The Batteries In The Remote Control
98BDL4510D 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Insert batteries with the correct polarity (+) and (-). 3. - Page 23 98BDL4510D USB Cover cover • Use the USB cover and screws to the USB stick. 1. Plug the USB stick. 2. Install the USB cover. 3. Use the screw provided to fix the USB cover. • Maximum USB stick size recommended: 20(W)x10(H)x60(L) mm...
-
Page 24: Ac Switch Cover
98BDL4510D 2.4. AC Switch Cover cover the AC switch. • Use AC Switch Cover to 1. Install the AC Switch Cover. 2. Fix the AC Switch Cover with the screw from accessory pack. -
Page 25: Connecting External Equipment
98BDL4510D Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input RS232 RS232 HDMI 1 IN HDMI 2 IN HDMI 3 IN DVI-I [HDMI IN] HDMI Out DVD / VCR / VCD 3.2. Connecting a PC 3.2.1. Using DVI input [PC LINE IN] PC LINE IN RS232... -
Page 26: Using Dp Input
98BDL4510D 3.2.3. Using DP input RS232 RS232 DVI-I DP IN [DP IN] DP Out 3.3. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.3.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. -
Page 27: Ir Pass-Through Connection
98BDL4510D 3.5. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] NORMAL (DVD / VCR / VCD) SOURCE FORMAT LIST INFO ADJUST OPTIONS ID SET ENTER Remote Control 3.6. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1. -
Page 28: Operation
98BDL4510D Operation 1 / 2 NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 4.1. Play multimedia files from USB device Return aaa1 aaa2 aaa3 1. Connect your USB device to the USB port on the display. xxx1 xxx2 xxx3... -
Page 29: Osd Menu
98BDL4510D OSD Menu 5.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure 5.2.1. Picture menu is shown below. You can use it as a reference for further adjustment of your display. Brightness Picture Contrast 5.1. Navigating the OSD Menu Sharpness Screen Black Level... -
Page 30: Screen Menu
98BDL4510D Smart Picture Clock Phase PQ setting Improves focus, clarity and image stability by increasing or decreasing this setting. PC mode: {Standard} / {Highbright} / {sRGB}. NOTE: VGA input only. Video mode: {Standard} / {Highbright} / {Cinema}. Zoom mode Smart Power PC mode: {Full} / {4:3} / {1:1} / {16:9}/ {21:9}/ {Custom}. -
Page 31: Audio
98BDL4510D NOTE: This function is only available when “Audio Out H position Sync” is on. Moves the horizontal position of the image left or right. Sync. Volume Enable/disable audio out (line out) volume adjustability to V position sync with internal speakers volume, but PD Internal speaker Moves the vertical position of the sound will be forced to be mute. -
Page 32: Configuration2 Menu
Choose from : {Off} / { On} Set the period of time the information OSD is displayed on the upper right corner of the screen. The information OSD Light sensor (requires Philips accessory CRD41 External will display when input signal is changed. Sensor Box) - Page 33 98BDL4510D operated by the remote control. (In primary mode, IR Monitor information key will always be processed regardless the monitor id/ Shows information about your display, including Input group settings). source, Resolution, Model name, SW version, serial number, operation hours and MAC address. •...
- Page 34 98BDL4510D The existing daylight on/off menu should be replaced by • {On Time} - Press [ ] or [ ] button to adjust and the the following menu structure: display will turn on at the specified time. The menu item {Daylight saving} opens the submenu that •...
- Page 35 98BDL4510D suspend. To make sure failover starts from the 1 priority source after powering on, please set the 1 priority source as boot on source too. Power Save Mode 1 [TCP off, WOL on, auto off] Mode 2 [TCP off, WOL on, auto on/off] Mode 3 [TCP on, WOL off, auto on/off] Mode 4 [TCP on, WOL off, no auto on/off] USB Autoplay...
-
Page 36: Supported Media Formats
98BDL4510D Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 1080P@30fps 50Mbps WMV3 1080P@30fps 40Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate Channel Bit Rate MPEG1/2 Layer1 16KHz-48KHz Up to 2 32Kbps-448Kbps MPEG1/2 Layer2 16KHz-48KHz Up to 2... -
Page 37: Input Mode
98BDL4510D Input Mode Timing support: Item Resolution H.Freq. (KHz) V.Freq. (Hz) 720×400 @70Hz DOS 31.469 70.087 640×480 @60Hz DMT 31.469 59.94 640×480 @67Hz MAC 66.667 640×480 @72Hz DMT 37.861 72.809 640×480 @75Hz DMT 37.5 800×600 @56Hz DMT 35.156 56.25 800×600 @60Hz DMT 37.879 60.317 800×600 @72Hz DMT... -
Page 38: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. -
Page 39: Dark Dot Defects
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 40: Cleaning And Troubleshooting
98BDL4510D HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver • Reduce the ambient temperature around the unit Cleaning and Troubleshooting 9.1. -
Page 41: Troubleshooting
98BDL4510D 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back 2. Make sure the power switch is of the display is not switched on. switched on. -
Page 42: Warranty Statement
98BDL4510D Warranty Statement Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Region Warranty Period USA, Canada 3 years China 1 year Asia Pacific 3 years Europe... -
Page 43: Technical Specifications
98BDL4510D Technical Specifications Display: Item Specifications Screen Size (Active Area) 2477 mm / 97.5 inch Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.5622 (H) x 0.5622 (V) [mm] Displayable colors 10 bit（D), 1.06 Billion colors Brightness (typical) 500 cd/m Contrast ratio (typical) - Page 44 98BDL4510D General: Item Specifications Power Input 100 - 240V~, 50/60Hz Power Consumption (Max) 650 W Power Consumption (typ.) 380 W Power Consumption (Standby & Off) <0.5 W Dimensions [W x H x D] 2193.2 x 1248.2 x 97.9 mm Weight 90.5 Kg Gross Weight 125.6 Kg (including small pallet)
- Page 45 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
