Safe and Sound Products Shake 'n' Wake - Extra Loud Alarm Clock Manual

Introduction

Congratulations on purchasing your Shake 'n' Wake™ Extra Loud Alarm Clock from Safe and Sound Products.

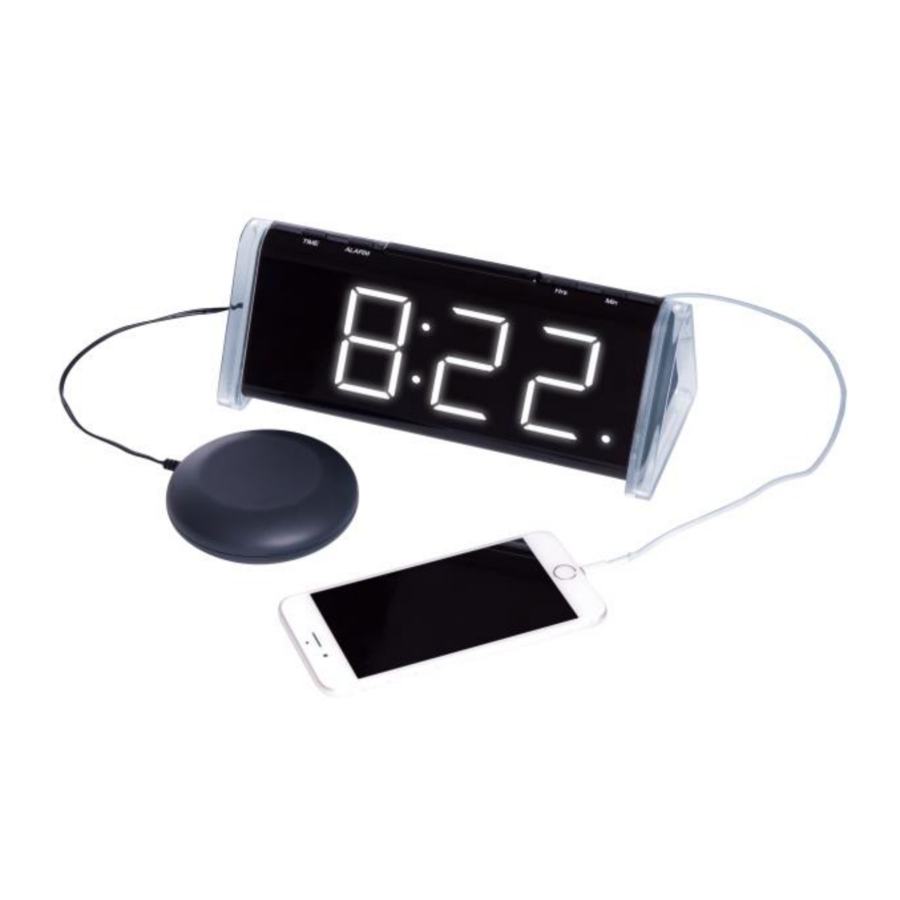

This alarm clock's vibrating pad, flashing lights and extra loud sounder will help to wake even the heaviest sleeper. It also has a jumbo display to help people with poor sight and a USB socket to charge your mobile phone.

Contents

• Extra Loud Alarm Clock
• Vibrating Pad
• UK Mains Power Supply
• User Guide

Overview of the Alarm Clock

Front Panel

1. Time Set Button
2. Alarm Set Button
3. Snooze Button
4. Hour Adjust Button

5. Minutes Adjust Button

Back Panel

6. Alarm Switch
7. Display Dimmer Switch
8. Test Switch
9. Vibrating Pad Port
10. Volume Switch
11. USB Port
12. Audio Tone Switch
13. Power Cable Port
14. LED Side Light Switch

Instructions

Insert the Vibrating Pad jack into the Vibrating Pad Port (9) and insert the power supply jack into Power Cable Port (13). Insert the power supply plug into a socket and switch on.

If keeping the clock by your bed we recommend the vibrating pad is placed under a pillow.

• To set time:
  Press and hold the Time button (1), followed by the Hour button (4) to change the digit, press several times until you reach the desired hour. Do the same for the minutes by pressing the Minute button (5) together with the Time button (1).
• To set alarm:
  Press and hold the Alarm button (2) followed by the Hour (4) and Minutes (5) buttons to the desired time. Set the alarm switch (6) to the on position.
• How to turn off the alarm:
  When the alarm goes off, press the Snooze button (3) to snooze the alarm for approx. 9 minutes. You can continue this process 7 times before the alarm mode turns off. To switch the alarm off straight away, or stop snooze mode, press and hold the Snooze button (3) for 3 seconds.
  The set alarm will then repeat at the desired time the next day.

Other functions

• Test the Alarm
  You can test the alarm mode by pressing the test button (8) to release. When the button is protruding out the test mode will activate. Push the button back in to turn the test off.
• Charge your Mobile Phone
  Insert your mobile phone's USB charger into the USB port (11). Can be used to charge most 5V mobile phones or other electronic devices.
• Adjust the clock display and Alarm Sound
  The brightness of the display can be adjusted by pressing the display dimmer switch (7).
  You can choose the desired volume of the alarm sound by adjusting the volume switch (10) between HI, LO and OFF. The tone of the alarm sound can also be adjusted using the Audio Tone switch (12) between HI, MED and LO.
  The clock's lights can be turned on/off using the LED side light switch (14).
• Power Cut
  In the case of a power cut the clock will memorise the time for up to 72 hours so no need to reset the time and it ensures the alarm remains correct while you are sleeping.
