Specifications*
General
Power Supply
Current Consumption
MD Player
Total Harmonic Distortion
Signal to Noise Ratio
Channel Separation
CONTENTS
1 FEATUERS
DC 12V (11V - 16V)
Test Voltage 14.4V
Negative Ground
Less than 1A ( Illumination ON )
Less than 0.2%
More than 65dB (IHF-A)
More than 52dB (IHF-A)
Page
AUTOMOTIVE ELECTRONICS
MAZDA
CX-BM8190F

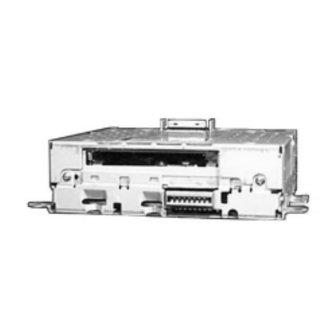

MD PLAYER [Lower Module of MASIC]
PART No. : L134 79 AP0
VEHICLE : MPV
DESTINATION : ALL COUNTRY
(EXCLUDE IN EUROPE)
PRODUCED AFTER
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
● Above specifications comply with EIA standards
2
2 REPLACEMENT PARTS LIST
ORDER No.1101
:Oct.,2001
133.8 × 41.1 × 125.7 (mm)
0.79kg
I0
Page
2
