To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
shown in the figure, it is not locked completely.
CAUTION:
Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION:
Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.

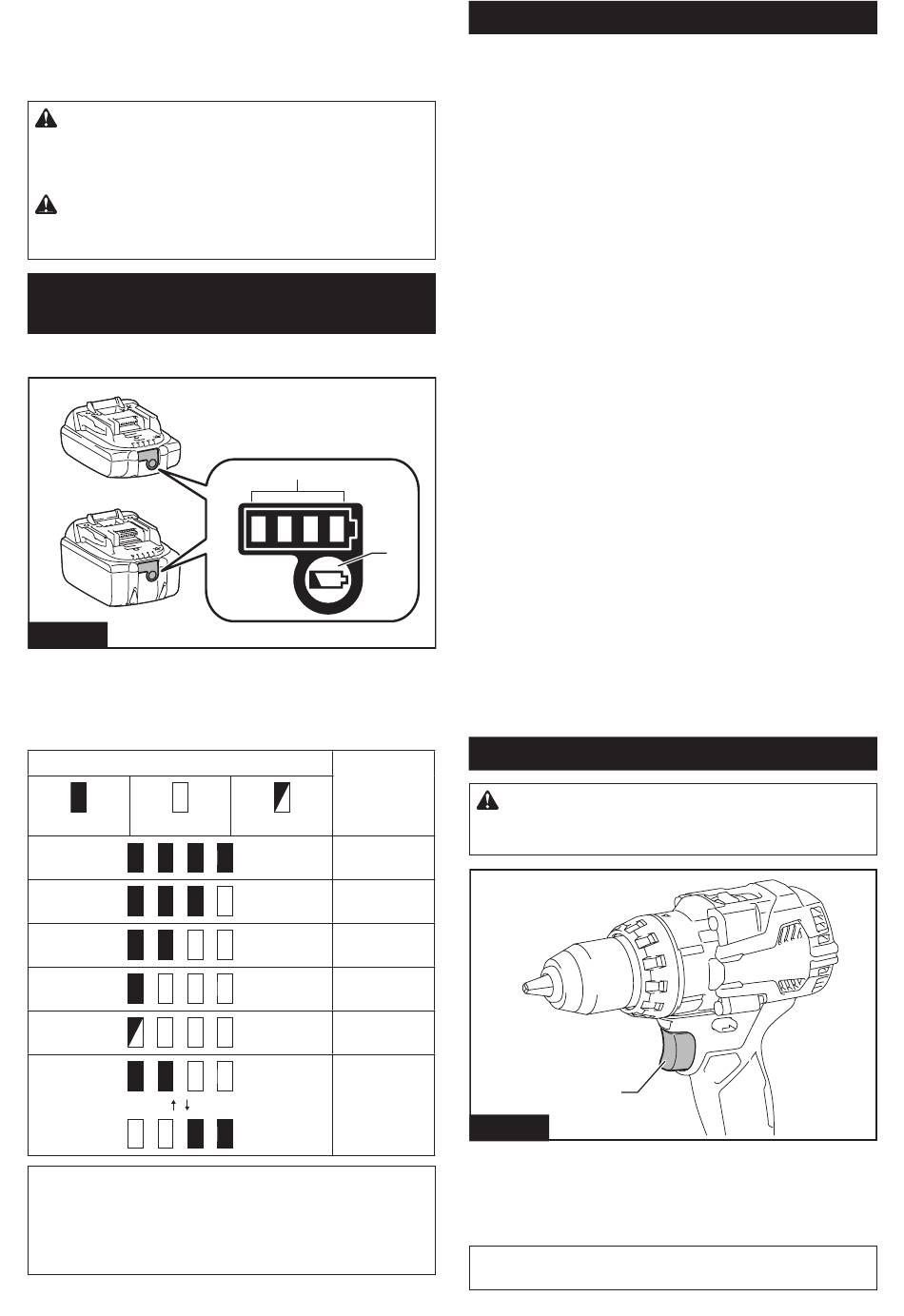

Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
Fig.2
► 1 . Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps
Lighted Off
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
NOTE: The first (far left) indicator lamp will blink when
the battery protection system works.
1
2
Remaining
capacity
Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
Tool / battery protection system
The tool is equipped with a tool/battery protection system. This
system automatically cuts off the power to extend tool and bat-
tery life. The tool will automatically stop during operation if the
tool or battery is placed under one of the following conditions:

Overload protection

This protection works when the tool/battery is operated in a
manner that causes it to draw an abnormally high current. In this
situation, turn the tool off and stop the application that caused
the tool to become overloaded. Then turn the tool on to restart.

Overheat protection

This protection works when the tool or battery is over-
heated. In this situation, let the tool and battery cool
before turning the tool on again.

Overdischarge protection

This protection works when the remaining battery
capacity gets low. In this situation, remove the battery
from the tool and charge the battery.
Protections against other causes
Protection system is also designed for other causes that could
damage the tool and allows the tool to stop automatically. Take
all the following steps to clear the causes, when the tool has
been brought to a temporary halt or stop in operation.
1. Turn the tool off, and then turn it on again to restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the tool and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.

Switch action

CAUTION:
Before installing the battery cartridge into
the tool, always check to see that the switch trigger actuates
properly and returns to the "OFF" position when released.
Fig.3
► 1 . Switch trigger
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
NOTE: The tool automatically stops if you keep pull-
ing the switch trigger for about 6 minutes.
