Panasonic ET-EMF510 Operating Instructions

Thank you for purchasing this Panasonic product.
■ Carefully read through these Operating Instructions and the operating instructions of the
projector to ensure safe and proper operation.
■ Please save this manual for future use.
Attention
Turn the main power off before replacing the air filter unit.
●
Make sure that the projector is stable when attaching the air filter unit, and work in an
●
environment that is safe, even in the event of the air filter unit dropping.
Replacing the air filter unit
1 ) Turn off the projector and disconnect the power plug from the wall outlet.
When the power is to be turned off, be absolutely sure to follow the procedure
●
described in "Switching off the projector" in the operating instructions of the projector.
2 ) Remove the air filter cover.
Remove the air filter cover by turning the air filter cover
●
fixing screw counterclockwise using the Phillips head
screwdriver until it turns freely.
3 ) Remove the air filter unit.
While gently pressing the area near the center of
●
the frame on the lens side (front side) of the air
filter unit toward the inside as shown by the arrow,
disengage the frame from the projector tabs,
and draw it out. Then disengage the frame on
the other side from the tabs, and take out the unit.
After taking off the air filter unit, remove any
●
accumulations of dust and dirt on the area of the
projector where the air filter unit is stowed and on the
air intake of the projector.
Attention
Take care not to touch the radiator fins or other parts when removing the dust and dirt.
●
Operating Instructions
Replacement Filter Unit
ET-EMF510
Model No.
Commercial Use
Air filter cover fixing screw
Air filter cover
Projector tabs
Projector tabs
Area where the air filter unit is stowed
and air intake of the projector

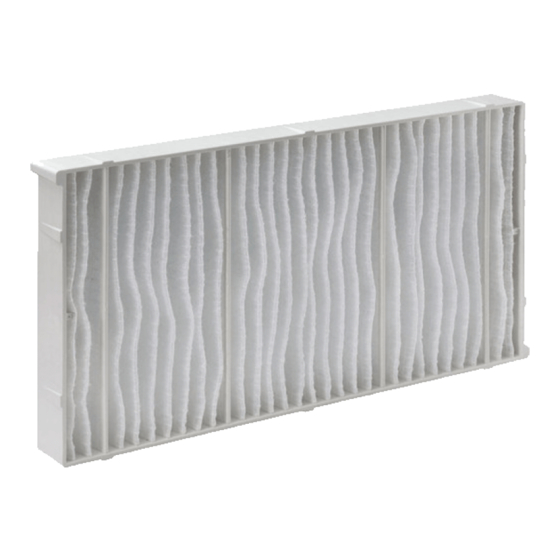

Air filter unit
TQZJ434-2
