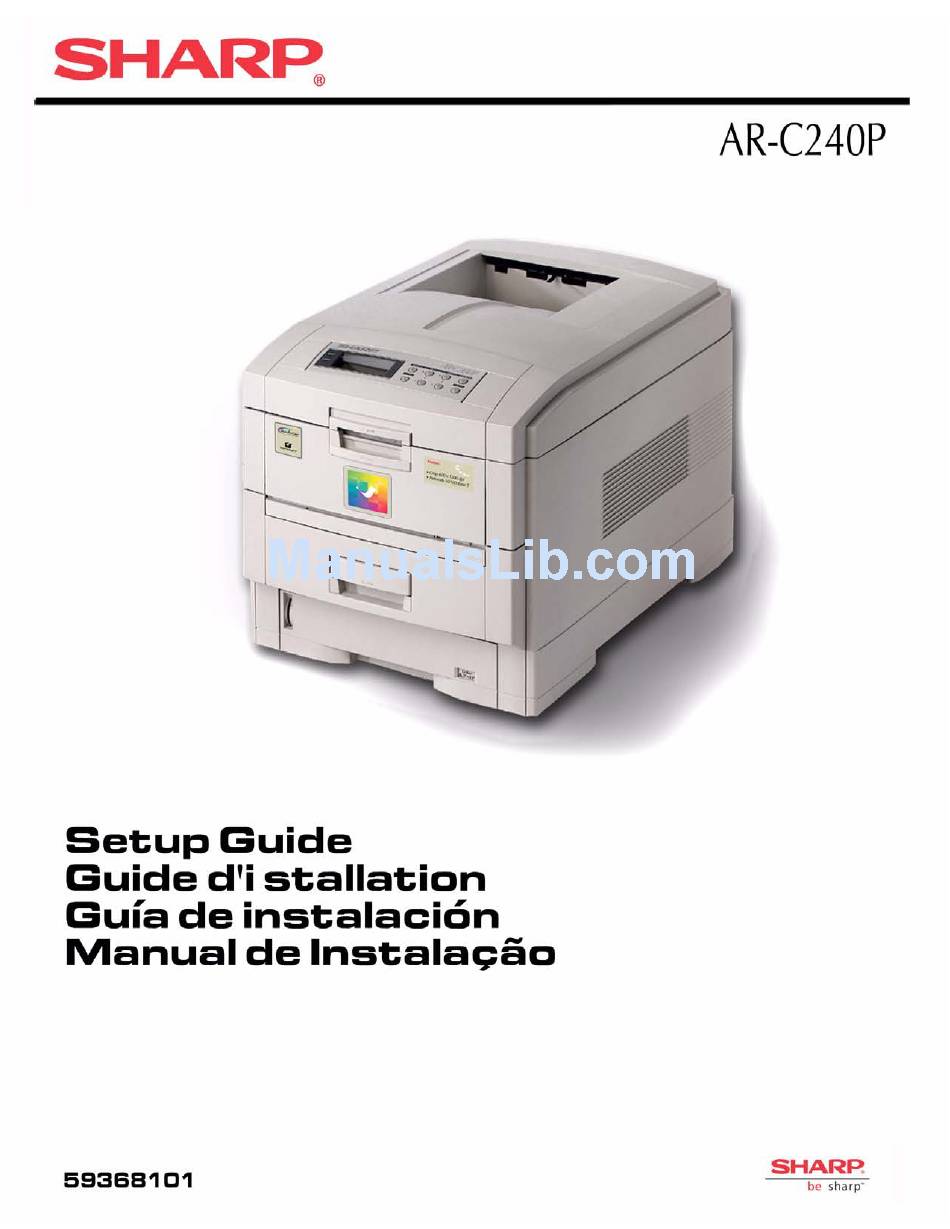

Sharp AR-C240P Setup Manual

Sharp ar-c240p: setup guide
Hide thumbs Also See for AR-C240P:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Sharp AR-C240P

Summary of Contents for Sharp AR-C240P

  • Page 2 (4) Cartucho de toner, (5) Ferrite Core, (6) CDs. Retire a protecção de cartão. (1) Impressora, (2) Saco preto de proteção contra a luz, (3) Cabo de Energia Elétrica, (4) Cartucho de toner, (5) Ferrite Core, (6) CDs. Sharp AR-C240P...
  • Page 3 2. Ouvrez le sac de protectoin en plastique. 1. Retire las piezas de embalaje superiores. 2. Abra la bolsa de plástico de protección. 1. Retire as peças de cima de empacotamento. 2. Abra o saco de plástico de protecção. Sharp AR-C240P...
  • Page 4 40cm 15.75in 20cm 7.875in Select a location. Choisissez l’endroit de l’installation. Seleccione la ubicación. Seleccione o local. Sharp AR-C240P 60cm 23.62in 20cm 7.875in 60cm 23.62 48kg 106lbs 48Kg 106lbs...
  • Page 5 Sharp AR-C240P 48kg 106lbs Lift printer and place on selected location. Soulevez l’imprimante et placez-la à l’endroit choisi. Levante la impresora y colóquela en la ubicación seleccionada. Coloque a impressora no local seleccionado.
  • Page 6 2. Levante la cubierta superior tirando del asa. 3. Retire y guarde el material de embalaje de los cabezales LED. 1. Retire as fitas de transporte. 2. Abra a tampa superior. 3. Retire e guarde os protectores das cabeças de LEDs. Sharp AR-C240P...
  • Page 7 5 minutos bajo la luz ambiental de una habitación. Retire os tambores de imagens. Cuidado! Não exponha o cilindro à luz solar direta e não deixe que fique exposto à luz ambiente por mais de 5 minutos. Sharp AR-C240P...
  • Page 8 Saque la lengüeta de papel de protección de los unidades de imagen. ¡Precaucion! No toque la superficie verde del cilindro de imagen Retire as patilhas protectoras de papel dos tambores de imagens. Cuidado! Não toque a superfície verde do cilindro. Sharp AR-C240P...
  • Page 9 Remove protective sheet, then film. Retirez la feuille de protection puis la pellicule. Retire la hoja de protección y a continuación la película de las unidades de imagen. Retire a folha protectora e a seguir, a película. Sharp AR-C240P...
  • Page 10 Remettez les tambours d’imprssion en place (1). Retirez les composants d’obturation et conservez-les (2). Vuelva a colocar los unidades de imagen (1). Retire y guarde los precintos (2). Volte a instalar os tambores de imagens (1). Retire e guarde as vedações (2). Sharp AR-C240P...
  • Page 11 Sujete el gancho naranja, y luego apriete la ficha para soltario. Deslice el gancho hacia fuera y deséchelo. Segure na presilha laranja, apertando a lingüeta para soltá-la. Retire a presilha deslizando- a para fora e descarte-a. Sharp AR-C240P...
  • Page 12 Shake toner cartridge. Secourez la cartouche de toner. Agite el cartucho de tóner. Abane o cartucho de toner. Sharp AR-C240P...
  • Page 13 Remove sealing tape from toner cartridge. Retirez le ruban adhésif d’étanchéité de la cartouche de toner. Retire la cinta de precinto del cartucho de tóner. Retire a fita de vedação do cartucho de toner. Sharp AR-C240P...
  • Page 14 Installez le côté de la cartouche de toner dans l’ergot de positionnement du tambour de’impression. Ponga el lado izquierdo del cartucho de tóner sobre la clavija de colocación del tambor de imagen. Posicione o lado esquerdo do cartucho de toner na cavilha de posicionamento do tambor de imagens. Sharp AR-C240P...
  • Page 15 Sharp AR-C240P Slide right edge of toner cartridge into image drum. Faites glisser le bord droit de la cartouche de toner dans le tambour d’impression. Introduzca el cartucho de tóner en la unidad de imagen deslizando su borde derecho. Deslize o bordo direito do cartucho de toner no tambor de imagens.
  • Page 16 Lock toner cartridge with colored lever. Enclenchez la cartouche de toner avec le levier de couleur. Bloquee el cartucho de tóner con la palanca de color. Bloqueie o cartucho de toner com a alavanca colorida. Sharp AR-C240P...
  • Page 17 Close top cover. Refermez le capot supérieur. Cierre la cubierta superior. Feche a tampa superior. Sharp AR-C240P...
  • Page 18 Pull out paper tray. Sortez le bac à papier. Saque la bandeja del papel. Retire o tabuleiro de papel. Sharp AR-C240P...
  • Page 19 Set guides to paper size. Réglez les guides suivant le format de papier utilisé. Ajuste las guías al tamaño del papel. Ajuste as guias de acordo com o tamanho de papel. Sharp AR-C240P...
  • Page 20 Load paper. Mettez du papier dedans. Cargue el papel. Coloque o papel. Sharp AR-C240P...
  • Page 21 2. Compruebe que las guías laterales del papel se apoyan en la pila del papel y están fijas en su posición. 1. Certifique-se que as guia a traseira de paper está encostada à pilha de papel e bloqueadas. 2. Certifique-se de que as guias laterais de papel estáo encostada à pilha de papel bloqueada. Sharp AR-C240P...
  • Page 22 Gently replace paper tray. Repoussez le bac à papier doucement à sa place. Vuelva a introducir suavemente la bandeja del papel. Cuidadosamente volte a instalar o tabuleiro de papel. Sharp AR-C240P...
  • Page 23 Insert power cable (1) and then switch on (2). Introduisez le cordon d’alimentation (1) et mettez l’imprimante sous tension (2). Enchufe el cable de alimentación (1) y encienda la máquina (2). Insira o cabo (1) de alimentação e ligue (2). Sharp AR-C240P...
  • Page 24 Si necesita más asistencia o tiene preguntas Visite nuestro sitio web: http://www.sharpusa.com Se precisar de assistência ou tiver perguntas Consulte o nosso site na Web: http://www.sharpusa.com Copyright 2004, Sharp Electronics Corporation and its suppliers Sharp Electronics Corporation., Sharp Plaza., Mahwah, NJ 07430 Tel: (201) 529-8200 http://www.sharpusa.com...

  • Page 25: Ordering Replacement Supplies

    Ordering Replacement Supplies How to Order • Consult the Sharp Authorized Dealer where you purchased your printer. • To find the authorized Sharp servicing dealer closest to you, please visit us on-line at www.SharpUSA.com. Order Numbers Important! Be sure to purchase only consumables designated for this printer.

  • Page 26: Media Settings

    Media Settings Why Change Media Settings? Improper media settings: • cause poor quality printing • cause flaking • can damage the printer Default Media Settings The Default Setting The default media weight setting for all trays (including optional tray 2) is AUTO.
  • Page 27 Media Settings (cont.) Media Settings for Individual Print Jobs If you are printing a job on special media, you can temporarily load the media in a tray and change the media settings for that tray in the driver as you print the job. Ranges for Printer Media Weight Settings Note...
  • Page 28 Changing Default Media Settings: Trays 1, 2, 3 Note : The “…” in these steps indicates that you should keep pressing the button repetitively until you see the display indicated. To Set Transparencies as the Default Media Set the Media Type 1.
  • Page 29 Changing Default Media Settings: Multi-Purpose (MP) Tray To Set Transparencies as the Default Media Note : “…” = keep pressing the button repetitively until you see the display indicated. First, Check/Set the Media Size to Letter ( Default 1. Press …...
  • Page 30 Changing Default Media Settings: Multi-Purpose Tray (cont.) To Set Labels or Heavy Paper as the Default Media : “…” = keep pressing the button Note repetitively until you see the display indicated. First, Check/Set the Media Size ( Default = Letter 1.
  • Page 31 Loading Media: Trays 1, 2 & 3 Media Weight Range: 20 to 54 lb. US Bond (75 g/m Media Size Range: Tray 1 Capacity: 530 sheets of 20-lb. paper Paper: min. 4.13'' x 5.83''; max. 8.5'' x 14'' (Non-standard sizes must be defined in driver before printing.) Transparencies: letter or A4 Trays 2 &...
  • Page 32 Loading Media: Multi-Purpose (MP) Tray Media Weight Range up to 113 lb. Index (203 g/m Media Size Range: min. 3.5" x 5"; max. 8.5" x 14" (Non-standard sizes must Takes: 100 sheets of 20-lb. US Bond paper be defined in driver before printing.) Banners: 8.25 to 8.5"...
  • Page 33 Selecting/Using Paper Important Information! For optimum results make sure that the paper you use conforms to the specifications outlined in the following pages. We do not recommend the following paper types for use in your printer: • Paper with cutouts, perforations, or excessive paper dust. •...

  • Page 34: Specifications

    Rear • Letterhead Media Recommended Weight Papers Setting Auto • Hammermill Laser Printer Radiant White, 24 lb., US Bond Auto • Sharp SF70A, 20 lb. For best results: temperature = 65 to 77°F; humidity = 40 to 65%RH Auto ®...

  • Page 35: Printing Transparencies

    Rear Transparency Any Only ® PostScript Media Recommended Weight Transparencies Setting • Sharp ARC20A (Ignored) • Folex Windows NT 4.0 Document Defaults → Input Slot Option → Media Check = Off. Making Transparencies the Default Print Media Tray 1 If Tray 1 will normally be loaded with...

  • Page 36: Label Parameters

    Selecting/Using Labels Label Parameters Important! Place labels in the MP Tray face up. Caution! Labels must be able to withstand 446°F (230°C) for 0.2 second, including mechanical pressures to 25 psi (1.8 kg/cm Usable Feed Tray Sizes • Letter MP Tray Only •...

  • Page 37: Printing Envelopes

    • Source = MP Tray • Size = COM-10 Important! For the best print results, please order our recommended envelopes from your Sharp's media provider. Never use envelopes with metal clasps, snaps, windows, or V-flap seals: Exit Tray Media Type Media Weight...
  • Page 38 Selecting/Using Thick Media Sample Ream Label: Media Weight, Index (see page 4). Media Weight, Metric: This confirms Index vs. US Bond (see page 4) Caution! To prevent damage to the printer, it is very important to check the printer’s media settings before printing on thick paper.
  • Page 39 Ideas for Using Printer Features : For detailed information on Note these features, see your on-line User’s Guide Secure Print Feature Ideal for printing confidential documents on a network system. Idea! When printing special media, use this feature to prevent documents being sent by other clients on the network from printing on your media: •...

  • Page 40: Secure Print

    Secure Print To print out a secure (confidential) document, you must know: • the document name • your personal password (PIN) To Print a Confidential Document Using the Control Panel : “…” = keep pressing the button Note repetitively until you see the display indicated.

  • Page 41: Proof & Print

    Proof & Print To print a proofed document, you must know: • the document name • your personal password (PIN) To Print a Proofed Document Using the Control Panel Note : “…” = keep pressing the button repetitively until you see the display indicated.
  • Page 42 Printing Built-In Reports Printing the Menu Defaults (MenuMap) Note : “…” = keep pressing the button repetitively until you see the display indicated. To print a list of the current menu settings: 1. Press … INFORMATION MENU 2. Press … PRINT MENU MAP 3.

  • Page 43: Printing Lists Of Fonts

    Printing Built-In Reports (cont.) Printing Lists of Fonts (PCL, PostScript, IBM Proprinter, or Epson FX Emulation) : “…” = keep pressing the button Note repetitively until you see the display indicated. 1. Press … INFORMATION MENU 2. Press … PRINT XXXX* FONTS 3.

  • Page 44: Setting The Power Save Interval

    Setting Power Save Parameters Power Save Power Save sets how long the printer waits before going into standby mode. This saves energy, but the printer requires time to warm up when it receives a print job or if you want to enter the menu and change settings.

  • Page 45: Control Panel Buttons

    Control Panel Buttons MENU Button Printer On Line or Off Line Press to enter the Menu mode. Menu Mode • Press to advance to the next Category in the Menu • Press and hold for 2 seconds or longer to go back to the previous Category.

  • Page 46: Item + Button

    Control Panel Buttons (cont.) ITEM + Button Menu Mode • Press to advance to the next Item in the Menu. • Press and hold to advance through the menu Items quickly. Password (PIN) Mode Press to enter the number 1 in the password ITEM - Button Menu Mode...

  • Page 47: Cancel Button

    Control Panel Buttons (cont.) SELECT Button Menu Mode • Press to engage a new value for an Item (An asterisk appears next to the new setting). • Press to initiate the action indicated on the display (e.g., print MenuMap). Password (PIN) Mode Press to enter the number 3 in the password.

  • Page 48: Control Panel Lights

    Control Panel Lights Ready LED (Green) The printer is on line. The printer is off line. Flashing The printer is receiving data. Attention LED (Red) On: Warning! The printer needs attention, but can continue to operate. The display message indicates the nature of the problem: e.g., PAPER NEAR END Normal.

  • Page 49: Clearing Media Jams

    Clearing Media Jams Jam 370 CHECK DUPLEX 370: PAPER JAM...
  • Page 50 Clearing Media Jams (cont.) Jam 371 CHECK DUPLEX 371: PAPER JAM...
  • Page 51 Clearing Media Jams (cont.) Jam 372 CHECK DUPLEX 372: PAPER JAM...
  • Page 52 Clearing Media Jams (cont.) Jam 380 OPEN FRONT COVER 380: PAPER JAM...
  • Page 53 Clearing Media Jams (cont.) Jam 381 OPEN UPPER COVER 381: PAPER JAM Caution! To avoid damage to the drums: • Be sure to set the toner/drum cradle on a flat surface • Do not touch the shiny green area on the bottom of the drums.
  • Page 54 Clearing Media Jams (cont.) Jam 382 OPEN UPPER COVER 382: PAPER JAM If the sheet is visible: If the sheet is inside: Warning! The fuser may be very hot from printing. : If the sheet is stuck in the fuser, Note skip to the next page.
  • Page 55 Clearing Media Jams (cont.) Jam 382 (cont.) If the sheet is inside and caught in the fuser: Warning! The fuser may be very hot from printing. Caution! To avoid damage to the drums: • Be sure to set the toner/drum cradle on a flat surface •...
  • Page 56 Clearing Media Jams (cont.) Jam 382 (cont.) Jam 383 OPEN UPPER COVER 383: PAPER JAM...
  • Page 57 Clearing Paper Jams (cont.) Jam 390 CHECK MP TRAY 390: PAPER JAM Jam 391 CHECK TRAY 1 391: PAPER JAM...
  • Page 58 Clearing Paper Jams (cont.) Jams 392 and 393 CHECK TRAY 2 392: PAPER JAM CHECK TRAY 3 393: PAPER JAM...

  • Page 59: Changing Toner Cartridges

    Changing Toner Cartridges Toner Cartridge Order #s: • Black = AR-C20TBU • Cyan = AR-C20TCU • Magenta = AR-C20TMU • Yellow = AR-C20TYU Caution! Be sure to purchase only consumables designated for this printer. INSTALL NEW TONER nnn: XXXX TONER EMPTY * nnn : XXXX = 410: YELLOW 411: MAGENTA...
  • Page 60 Changing Toner Cartridges (cont.) Important! TONER LOW disappear from the display. If it doesn’t, try printing a page. If it still doesn’t disappear, reinstall the toner cartridge. message should...

  • Page 61: Error Messages

    Error Messages Some of the more common error messages appear below. For additional error messages, see your on-line User’s Guide. XXX TONER LOW The Problem Appears on the second line of the display to indicate that color toner cartridge is getting low. Note : If you have changed the LOW TONER item in the SYSTEM...
  • Page 62 Error Messages (cont.) SET XXX ON MPTRAY AND PUSH ON-LINE SWITCH The Problem The printer has received a job for printing from the Multi-Purpose Tray and no media is loaded in the tray. What to Do Load the requested media ( the Multi-Purpose Tray, then press ON LINE.
  • Page 63 Error Messages (cont.) CHECK FUSER UNIT 320: FUSER UNIT MISSING The Problem The fuser is not properly installed. What to Do Open the top cover and check the fuser: 1. Press down on the fuser to be sure it is firmly locked in place. The message should disappear.
  • Page 64 Error Messages (cont.) PRESS ONLINE SW INVALID DATA The Problem The hard disk drive is not available and job spooling cannot take place. What to Do Press the ON LINE button.

  • Page 65: Service And Support

    Service & Support Consult the Sharp Authorized Dealer where you purchased your printer. To find the authorized Sharp servicing dealer closest to you, please visit us on-line at www.SharpUSA.com.
  • Page 66 Folex is a registered trademark of Folex imaging. HammerMill is a registered trademark of HammerMill. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and other countries. Copyright 2003, Sharp Electronics Corporation and its suppliers...
