Sharp XL-DV50H Quick Start Manual

MODEL
XL-DV50H

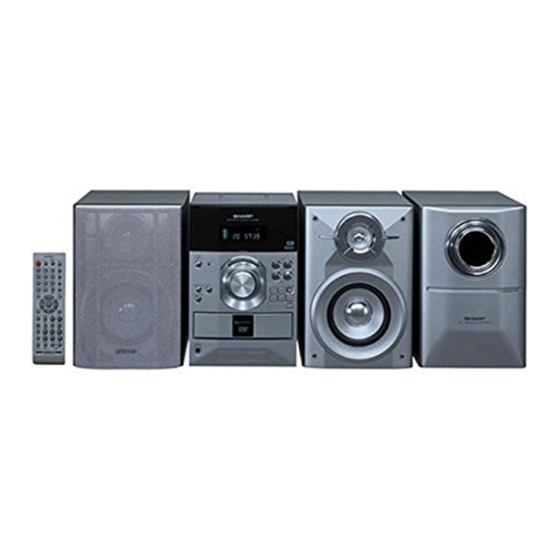

DVD MICRO SYSTEM
This Quick Start Guide will help you to correctly install and oper-
ate your system.
1
Accessories
Remote control × 1
FM aerial × 1
3
System connections
Subwoofer
Downloaded from: http://www.usersmanualguide.com/
AM loop aerial × 1
SCART cable × 1
AC power lead × 1
Front speaker (right)
Plug in with the rising side
facing to the right.
Black
Red
If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/customersupport.
Customers without Internet access may telephone
08705 274277 during office hours (or (01) 676 0648
if telephoning from Ireland).
2
TV connection
Video cable
(commercially
available)
SCART cable
(supplied)
TV
To SCART input
socket
FM aerial AM loop aerial
Wall socket
(AC 230 - 240 V, 50 Hz)
0301
S-video cable
(commercially available)
To video input
socket
To S-video
input socket
Front speaker (left)
TINSZA088SJZZ
04D N HK 1
