Page 1

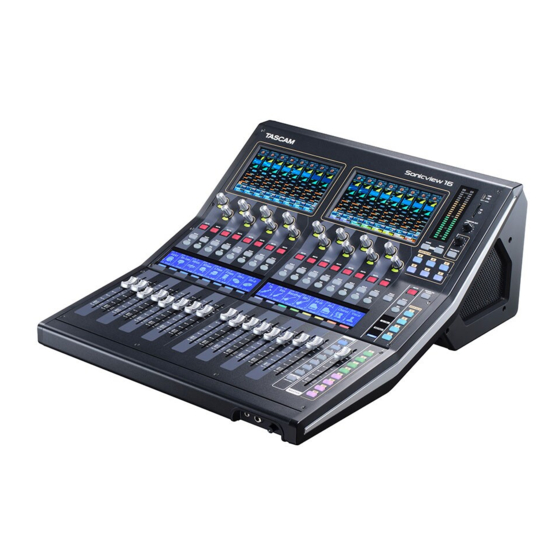

Sonicview 24 数字调音台 有关本设备所有功能的信息, 请参阅参考手册。 您可从TASCAM网站上下载参考手 册的电子版。 用户手册 Please see the Reference Manual for information about all the unit’s functions. You can download the Reference Manual from the TASCAM website. OWNER’S MANUAL Sonicview 16 https://tascam.jp/int/product/sonicview_16/docs Sonicview 24 https://tascam.jp/int/product/sonicview_24/docs 使用说明书发行日期: 2023年8月...
Page 2
TASCAM is a registered trademark of TEAC Corporation. o SDXC Logo is a trademark of SD-3C, LLC. o VST is a trademark of Steinberg Media Technologies GmbH, registered in Europe and other countries. o Audinate®, the Audinate logo and Dante are trademarks of Audinate Pty Ltd.
4 个内部效果器、4 个效果发送总线和 4 个立体声音效反馈通道 输入和输出端口 o 16 个或 24 个麦克风 / 线路输入 o 2 个立体声 RCA 输入 o 16 个模拟线路输出 o 立体声模拟监听输出 o Dante I/O,支持冗余 o 2 个扩展槽 o 32-in/32-out USB 音频接口 内部处理 o 96 kHz/54-bit 浮点运算 TASCAM Sonicview 16/Sonicview 24...
MENU 键 k SENDS ON FADER 键和指示灯 w USER KEYS A–F 和指示灯 l USER KEYS 1–12 和指示灯 e MUTE 键和指示灯 (MASTER) r SOLO CLEAR 键和指示灯 t SOLO 键和指示灯 (MASTER) y SEL 键和指示灯 (MASTER) u L/R 指示灯 TASCAM Sonicview 16/Sonicview 24...
, 模拟输出插孔 ( ST IN 1/ST IN 2 插孔 . Dante PRIMARY 连接器 ) POWER 开关 / Dante SECONDARY 连接器 Q AC IN 连接器 ! 扩展卡插槽 (SLOT 1/SLOT 2) @ WORD THRU/OUT 连接器 # WORD IN 连接器 TASCAM Sonicview 16/Sonicview 24...
Settings 选项。 o 本设备启动后立即出现的主画面在触摸屏上显示一排通道条。 点击 SAVE 按钮,将当前设置保存到内部存储器。 o 按下本设备顶部的 HOME 键 (0),以打开主画面。 使用 POWER 开关 ()) 关闭本设备。 o 这样不仅可显示各种仪表,还能显示和操作多个模块的主要参数。 V 注意 o 点击参数进行选择,并使用 LCD 旋钮 (2) 调整参数。 设备运行时(包括录制、播放、将数据写入 SD 卡或 USB 闪存驱 动器、或保存设置到内部存储器) ,请勿关闭电源或断开电源线。 否则可能会导致正常录制失败,数据丢失以及监听设备突然发出 嘈杂的噪声,进而损坏设备,损害听力或引起其他故障。 TASCAM Sonicview 16/Sonicview 24...
Page 11
Multi Track Recorder o 可以显示和操作所选模块的调音台参数并显示各种仪表。 Save Current Settings o 点击参数进行选择,并使用 LCD 旋钮调整参数。 菜单画面(在右侧触摸屏上显示) 通道模块和触摸屏 o 通道模块的主画面 (Fader/SEL/SOLO/MUTE) 显示在其上方的触 摸屏上。 o MODULE 画面显示在被操作的 SEL 键 (5) 上方的触摸屏上。 o 按下 MENU 键 (q),以打开右侧触摸屏上的菜单画面。可在此画 面上调整各种系统设置。 o 菜单结构如下所示。 有关每个菜单项的详细信息, 请参见参考手册。 TASCAM Sonicview 16/Sonicview 24...
Sends On Fader Mix4 USER KEYS 9 橙色 Sends On Fader Mix5 USER KEYS 10 橙色 Sends On Fader Mix6 USER KEYS 11 橙色 Sends On Fader Mix7 USER KEYS 12 橙色 Sends On Fader Mix8 TASCAM Sonicview 16/Sonicview 24...
Installed battery subjected to extremely low air pressure the apparatus has been exposed to rain or moisture, does may result in an explosion or the leakage of flammable not operate normally, or has been dropped. liquid or gas. TASCAM Sonicview 16/Sonicview 24...
Page 24
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. For China “仅适用于海拔 2000m以下地区安全使用” “仅适用于非热帯气候条件下安全使用” “环境保护使用年限” 产品有毒有害物质或元素的名称及含量 机种 : Sonicview 16/Sonicview 24 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚...
Included items ................ 26 keep it in a safe place for future reference. Conventions used in this manual .......... 26 You can also download this Owner’s Manual from the TASCAM website. Precautions for placement and use ........27 Notes about power supply ............. 27 Beware of condensation ............
A list of SD cards that have been confirmed for use with this Failure to follow these instructions could result in injury. unit can be found on the TASCAM website. Alternatively, please contact TASCAM customer support service. Precautions for placement and use Precautions for use o The operating temperature range of this unit is 0 - 40 °C.
2 stereo RCA inputs o 16 analog line outputs o Stereo analog monitor outputs o Dante I/O that supports redundancy o 2 expansion slots o 32-in/32-out USB audio interface port Internal processing o 96kHz/54-bit floating-point arithmetic TASCAM Sonicview 16/Sonicview 24...
SENDS ON FADER key and indicator e MUTE key and indicator (MASTER) l USER KEYS 1–12 and indicators r SOLO CLEAR key and indicator t SOLO key and indicator (MASTER) y SEL key and indicator (MASTER) TASCAM Sonicview 16/Sonicview 24...
( ST IN 1/ST IN 2 jacks . Dante PRIMARY connector ) POWER switch / Dante SECONDARY connector Q AC IN connector ! Expansion card slots (SLOT 1/SLOT 2) @ WORD THRU/OUT connector # WORD IN connector TASCAM Sonicview 16/Sonicview 24...
Doing so could cause proper recording to fail, recorded data to be lost, and sudden loud noises from monitoring equipment, which might damage the equipment, harm hearing or cause other trouble. TASCAM Sonicview 16/Sonicview 24...
Page 31
Press the MENU key (q) to open the Menu Screen on the right touchscreen. Various system settings, for example, can be adjusted on this screen. o The menu structure is as follows. See the Reference Manual for detailed information about each menu item. TASCAM Sonicview 16/Sonicview 24...
To set the master clock and WORD connectors for the unit, press the MENU key (q) to open the Menu Screen. Then, from the System Setup menu, select the Sync Clock item to open the SYNC CLOCK Screen. TASCAM Sonicview 16/Sonicview 24...
1–40 NAME area on the Home Screen (E area in “Setting various parameters on the Home Screen” on page 31) to open the MODULE (OVERVIEW) Screen. Then, tap the OUTPUT button above the DIRECT OUT TRIM volume area to open the DIRECT TASCAM Sonicview 16/Sonicview 24...
(USER KEYS, FOOTSWITCH, GPIO IN and GPIO OUT). These functions can be assigned to each control on the USER USER KEYS 10 Orange Sends On Fader Mix6 DEFINED CONTROLS Screen. USER KEYS 11 Orange Sends On Fader Mix7 TASCAM Sonicview 16/Sonicview 24...
When the button is off ( ), tapping the bus selection button will automatically close this window. i When the button is on ( ), tapping a bus selection button will not close this window. TASCAM Sonicview 16/Sonicview 24...
Page 36
MODULE screen, and use the touchscreen (1) and LCD knobs (2) to set various parameters. Faders The 16 channel faders of Sonicview 16 and the 24 channel faders of the Sonicview 24 show the SEND levels to the following buses.
), tapping a bus selection Tap the desired screen selection button at the top of the button will not close this window. MODULE screen, and use the touchscreen (1) and LCD knobs (2) to set various parameters. TASCAM Sonicview 16/Sonicview 24...
Faders FX settings The 16 channel faders of Sonicview 16 and the 24 channel faders of the Sonicview 24 show the SEND levels to the o Tap the FX area (A area in “Setting various parameters following buses. on the Home Screen” on page 31) at the top of the...
Storing and recalling snapshots If these measures do not solve the problem, please contact the store where you purchased this unit or TASCAM customer Press the MENU key (q) to open the Menu Screen. support service.
A list of SD cards that have been confirmed for use with this unit can be found on our web site. Access this list from the product page of this product on the TEAC Global Site (https:// teac-global.com) or contact the TASCAM customer support service. File System...
Detailed specifications are provided in the Reference Manual. Power consumption Sonicview 16: 65W Sonicview 24: 85W External dimensions Sonicview 16: 472.0 x 228.1 x 554.4 mm Sonicview 24: 690.8 x 228.1 x 554.4 mm (width × height × depth) Weight Sonicview 16: 13 kg...
Page 43
HOW YOU CAN GET WARRANTY SERVICE < Europe > Your unit must be serviced by an authorized TASCAM service station in This warranty gives you specific legal rights and you may also have other This product is subject to the legal warranty regulations of the country the United States.
