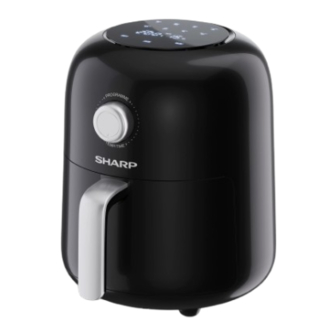

- Page 1 User manual AF-GS404A Air Fryer *Product images are for illustration purpose only. Actual product may vary.
- Page 2 Dear Customer, Thank you for having purchased this SHARP product. We would like to inform you that your warranty rights are in the European warranty card. You can download them from www.sharpconsumer.uk/support/ or contact your retailer where you purchased your device. You can also obtain the copy of the warranty rights via the electronic or conventional mail after submitting your request to service.gb@sharpconsumer.eu (UK) | service.ie@sharpconsumer.eu (IE) or calling the number...
- Page 3 1. In the European Union If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling.
-
Page 4: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ....................................... 3 SPECIFICATIONS ........................................6 AIR FRYER AND ACCESSORIES ................................... 7 CONTROL PANEL ........................................8 BEFORE USING YOUR AIR FRYER ..................................8 OPERATION INSTRUCTIONS ....................................9 Automatic Cooking ......................................9 Manual Cooking ......................................10 Cook From Frozen ......................................11 Pre-Heat ..........................................12 DIAL CONTROL ........................................13 MAINTENANCE WHILE IN USE ..................................13... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS When using an electrical appliance, basic safety precautions should always be followed, including the following: • Children should be supervised to ensure that they DO NOT play with the appliance. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning... - Page 6 • DO NOT use appliance for other than its intended use. • DO NOT use outdoors. • If any advice is required regarding this product, contact your Sharp Help Line • Only hold the appliance by the correct handles and use such heat protection measures such as gloves or potholders.
- Page 7 • Wear protective insulated gloves when touching hot surfaces or hot air fry basket, inner pot, and food. • When using this appliance, provide adequate space above and on all sides for air circulation. ALWAYS ensure that the inner pot is properly closed before operating. •...
-
Page 8: Specifications
• When operating the air fryer, keep at least 100mm of space on all sides to allow for adequate air circulation. KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE 30 cm 10 cm 10 cm 10 cm 85 cm SPECIFICATIONS Model name GS404A... -
Page 9: Air Fryer And Accessories
AIR FRYER AND ACCESSORIES Please familiarize yourself with the following Air Fryer functions and accessories prior to fi rst use: Inner pot: Place the frying basket onto the inner pot, and then put the inner pot into the air fryer. Frying basket: Place the food in the frying basket and then put the frying basket into the inner pot to cook. -
Page 10: Control Panel
CONTROL PANEL 1. Auto Cook buttons – Automatic cooking programs, select from 8 options. 2. Temperature/Time – Use this button to control the temperature and time manually. 3. Start/Cancel – Start the operation of the Air Fryer or cancel/pause operation. 4. -
Page 11: Operation Instructions
OPERATION INSTRUCTIONS Your Air Fryer has several modes of operation: Automatic cooking – select one of the 8 pre-programmed cooking options. Manual cooking – set the temperature and time manually. Cook from Frozen – Cook from frozen (Vegetables, Pizza, and Fries only). Pre-Heat –... -
Page 12: Manual Cooking
4. Select the desired food by pressing the auto cook button on the control panel. The default temperature and time will blink in the LED display. a. If needed, press the "TEMP/TIME" button once, and then rotate the JOG DIAL to set the desired cooking temperature. -
Page 13: Cook From Frozen
Some suggested cooking options are shown below. Initial Food Cooking Tem- Food Weight Cooking Time Shake/Turn Over Comments Temperature perature Frozen fries (thick) 300 to 700 12 to 16 Frozen Frozen fries (thin) 300 to 700 12 to 20 DIY Fries (0.7cm x 7/8cm) 300 to 800 18 to 30 Add oil: 1/2 spoon... -
Page 14: Pre-Heat
Pre-Heat To ensure that your Air Fryer is at the correct temperature for cooking your food, there is a pre-heat function which can be used before auto and manual cooking functions. Just press the pre-heat button once before selecting any other function. -
Page 15: Dial Control
This Air Fryer contains no user serviceable parts. Do not try to repair it yourself. In the unlikely event of failure, contact the SHARP Call Centre using the details at the start of this User Manual. CLEANING INSTRUCTIONS CAUTION: To protect against electrical shock, DO NOT IMMERSE THE AIR FRYER IN WATER OR ANY OTHER LIQUIDS. -
Page 16: Troubleshooting
Air Fryer. Add slightly more oil for a crispier result. Should you still have issues, please contact the SHARP Call Centre using the details at the start of this User Manual. EN – 14 EN – 14... - Page 17 EN – 15 EN – 15...
- Page 18 EN – 16 EN – 16...
- Page 20 Sharp Consumer Electronics Poland sp. z o.o. Ostaszewo 57B, 87-148 Łysomice, Poland SHARP CORPORATION 1 Takumi-cho, Sakai-ku Sakai City, Osaka 590-8522, Japan SDA/MAN/0285 V8 www.sharpconsumer.eu...
