Summary of Contents for AEG DUA2.1

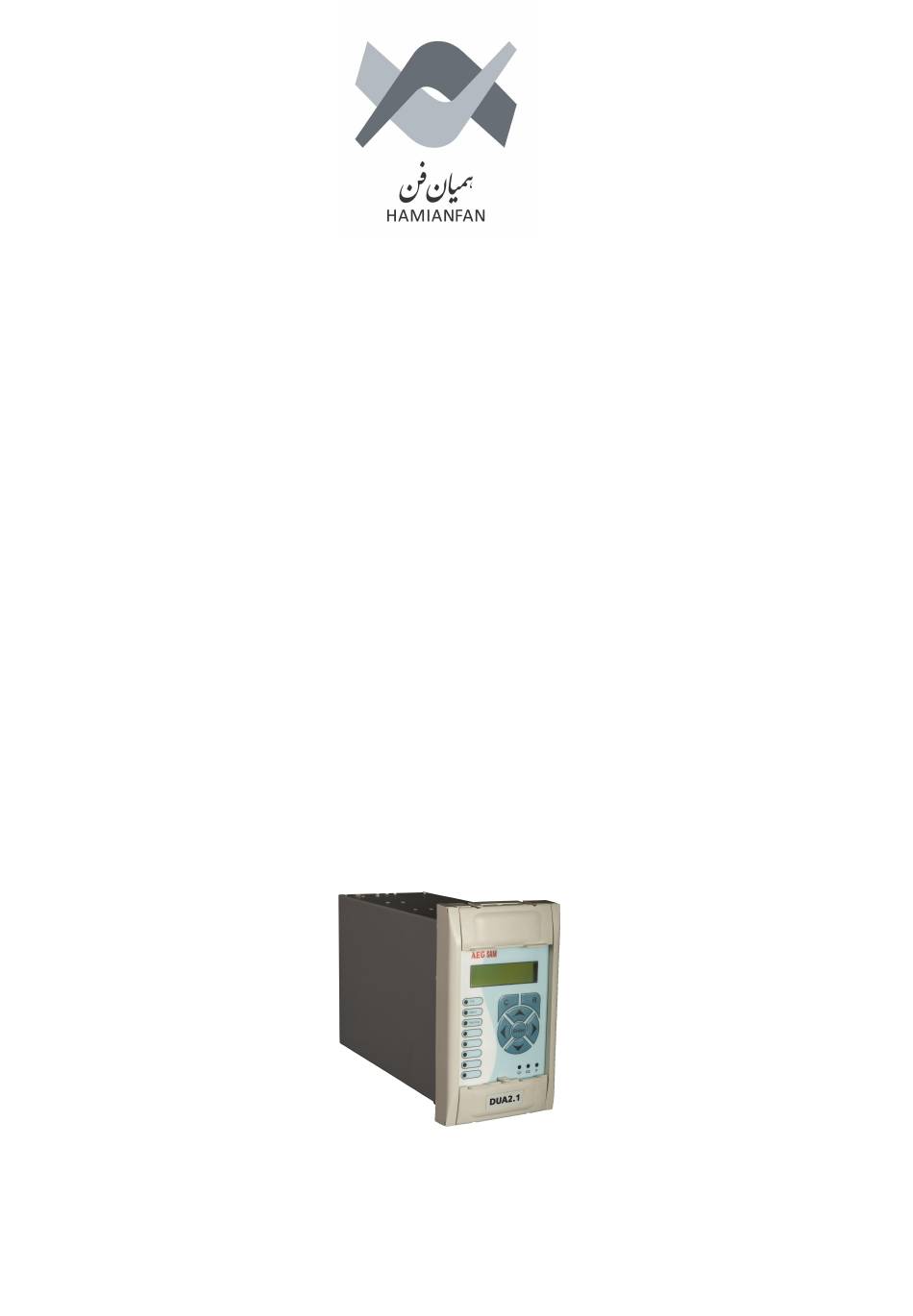

- Page 1 Numerical Voltage Protection Relay HF9024 (DUA2.1) Technical Guide and user manual...
- Page 2 Technical Guide and user manual Contents HF9024 NUMERICAL Voltage Relay CONTENTS Introduction Handling, Installation and Case Dimensions User Guide Menu Content Tables Technical Data and Curve Characteristics Application Guide...
- Page 3 Introduction HF9024 CONTENTS 1. INTRODUCTION 2. HOW TO USE THIS MANUAL 3. INTRODUCTION TO THE HF9024 4. MAIN FUNCTIONS...
- Page 4 Introduction HF9024 1. INTRODUCTION The Voltage relay type HF9024 is a numerical relay .
- Page 5 Introduction HF9024 2. HOW TO USE THIS MANUAL This manual provides a description of HF9024 functions and settings. The goal of this manual is to allow the user to become familiar with the application, installation, setting and commissioning of the relay. This manual has the following format: HF9024 Introduction...
- Page 6 Introduction HF9024 HF9024 3. INTRODUCTION TO THE RELAY The HF9024 relay provide comprehensive Voltage fault protection for utilities networks, industrial plants and networks as well as for other applications where Voltage protection is required. In addition to its protective functions, each relay offers control and recording features.
- Page 7 Introduction HF9024 4. MAIN FUNCTIONS The following table shows the functions available for HF9024 relay. PROTECTION FUNCTIONS OVERVIEW HF9024 Configuration depending on the number and type of voltage transformers Phase-to-neutral or phase-to-phase voltage protection Phase under voltage (AND/OR logic) ...
- Page 8 Handling, Installation and Case Dimensions HF9024 HANDLING, INSTALLATION AND CASE DIMENSIONS...
-
Page 9: Table Of Contents
Handling, Installation and Case Dimensions HF9024 CONTENTS 1. GENERAL CONSIDERATIONS 1.1 Receipt of relays 1.2 Electrostatic discharge (ESD) 2. HANDLING OF ELECTRONIC EQUIPMENT 3. RELAY MOUNTING 4. UNPACKING 5. STORAGE 6. DIMENSIONS 7. Communication 7.1 RS232 Port 7.2 RS485 port 8. -
Page 10: General Considerations
Handling, Installation and Case Dimensions HF9024 1. GENERAL CONSIDERATIONS 1.1 Receipt of relay Protective relay, although generally of robust construction, require careful treatment prior to installation on site. Upon receipt, relay should be examined immediately to ensure no damage has been sustained in transit. If damage has been sustained during transit a claim should be made to the transport contractor and HAMIANFAN should be promptly notified. -
Page 11: Handling Of Electronic Equipment
Handling, Installation and Case Dimensions HF9024 2. HANDLING OF ELECTRONIC EQUIPMENT A person’s normal movements can easily generate electrostatic potentials of several thousand volts. Discharge of these voltages into semiconductor devices when handling electronic circuits can cause serious damage, which often may not be immediately apparent but the reliability of the circuit will have been reduced. -
Page 12: Relay Mounting
Handling, Installation and Case Dimensions HF9024 3. RELAY MOUNTING The relay is dispatched either individually or as part of a panel/rack assembly. Modules should remain protected by their metal case during assembly into a panel or rack. For individually mounted relays an outline diagram is supplied in following of this chapter showing the panel cut-outs and hole centers. -
Page 13: Unpacking
Handling, Installation and Case Dimensions HF9024 4. UNPACKING Care must be taken when unpacking and installing the relay so that none of the parts is damaged or the settings altered. The relay must only be handled by skilled personnel. The installation should be clean, dry and reasonably free from dust and excessive vibration. -
Page 14: Storage
Handling, Installation and Case Dimensions HF9024 5. STORAGE If relay is not to be installed immediately upon receipt they should be stored in a place free from dust and moisture in their original cartons. Where de-humidifier bags have been included in the packing they should be retained. The action of the de-humidifier crystals will be impaired if the bag has been exposed to ambient conditions and may be restored by gently heating the bag for about an hour, prior to replacing it in the carton. -
Page 15: Dimensions
Handling, Installation and Case Dimensions HF9024 6. CASE DIMENSIONS The relay is available in a 4U metal case for panel or flush mounting. Weight: 1.8 Kg External size : Height case 152 mm Front panel 177 mm Width case 97 mm Front panel 103 mm Depth case 226 mm Front panel + case 252 mm... -
Page 16: Communication
Handling, Installation and Case Dimensions HF9024 7. Communication 7.1 RS232 Port In the bottom of the front panel, there is a RS232 port, The communication with a computer through the RS232 allows access to the relay all information and setting. It makes the access and changes of any information, setting and configuration. - Page 17 User Guide HF9024 User Guide...
- Page 18 User Guide HF9024 CONTENTS 1. PRESENTATION OF HF9024 RELAY 2. USER INTERFACE 2.1 LCD display and keypad description 2.1.1 LCD display 2.1.2 Keypad 2.2 LEDs 2.3 Description of the two areas under the top and bottom flaps 3. PASSWORD 3.1 Password protection 3.1.1 Password entry 3.1.2 Changing the password 3.1.3 Change of setting invalidation...
-
Page 19: Presentation Of Hf9024 Relay
User Guide HF9024 1. PRESENTATION OF HF9024 RELAY This relay is fully numerical relays designed to perform electrical protection and control functions. HF9024 relay is powered either from a DC or an AC auxiliary power supply. Using the front panel, the user can easily navigate through the menu and access data, change settings, read measurements, etc. -
Page 20: User Interface
User Guide HF9024 USER INTERFACE HF9024 relay from panel allows the user to easily enter relay settings, display measured values and alarm and to clearly display the status of the relay. 2 × 16 alphanumerical backlit display 2 buttons to read and Clear alarms messages Trip led Alarm led... -
Page 21: Lcd Display And Keypad Description
User Guide HF9024 LCD display and keypad description 2.1.1 LCD display In the front panel, a liquid crystal display (LCD) displays settings, measured values and alarms. Data is accessed through a menu structure. The LCD has two lines, with sixteen characters each. A back-light is activated when a key is pressed and will remain lit for five minutes after the last key press. -
Page 22: Description Of The Two Areas Under The Top And Bottom Flaps
User Guide HF9024 LED 3 Color: YELLOW Label: Warning LED 3 indicates internal alarms of the relay. W hen the relay detects a « non-critical » internal alarm (typically a communication failure), the LED starts blinking continuously. When the relay detects a fault that is considered as «... -
Page 23: Password Entry
User Guide HF9024 Password entry The input of the password is requested as soon as a modification of a parameter is made for any one of the six/eight menus and the submenus. The user enters each one of the 4 characters and then validates the entire password with enter keypad. - Page 24 User Guide HF9024 MENU The menu of HF1021relay is divided into main menus and submenus. Default display By default, the LCD displays the current value measured. As soon as an alarm is detected by the relay, that information is considered as more important and the alarm message is then displayed instead of the default value.
- Page 25 Ratings Voltage Nominal voltage Operating range 57 – 130V 0.5 to 200V ph - ph ph - ph Duration Thermal withstand (Vn = 57V … 130V) Continuous 260V ph - ph 10 seconds 300V ph - ph Auxiliary Voltage Nominal ranges 48… 150 Vdc Frequency Nominal value 50Hz Operating range 40 –...
- Page 26 Logic inputs All the logic inputs are optically-isolated and independent :HF 9024 relay has 2 logic inputs. Energization of the logic inputs is realised with a DC or ACauxiliary voltage. Auxiliary voltage: 48-150VDC/32-100VAC Logic input recognition time = 5 ms Output Relay Contacts The output contacts ofHF9024 RELAY are AgCdO dry contacts.
- Page 27 BURDENS Voltage circuits REFERENCE VOLTAGE (VN) VN = 57 – 20 0V <0,25 VA VN = 220 – 480V <0,36 VA Auxiliary supply Nominal* : 3W * Nominal is with 50% of the optos energised and one relay per card energised Optically-isolated inputs Reference voltage Current (per logic input)
- Page 28 PROTECTION SETTING RANGES UNDERVOLTAGE (ANSI CODE 27) Threshold settings (secondary values) Nominal voltage range : 57 – 130V > V<= Voltage Set 0.5…130.0V V<<= Voltage Set 0.5…130.0V V<<<= Voltage Set 0.5…130.0V Time delay settings Each voltage element is associated to an independent time delay.
- Page 29 Inverse Time Delay Characteristic The inverse characteristic is defined by the following formula : ⎛ ⎞ ⎜ ⎟ ⎜ ⎟ ⎜ ⎟ − ⎜ ⎟ ⎝ ⎠ where : = operating time in seconds = time Multiplier Setting = applied input voltage = relay setting voltage NOTE : this equation is only valid for...
- Page 30 OVERVOLTAGE (ANSI CODE 59) Threshold settings (secondary values) Nominal voltage range : 57 – 130V > V>= Voltage Set 0.5…200.0V V>>= Voltage Set 0.5…260.0V V>>>= Voltage Set 0.5…260.0V Time delay settings Each voltage element is associated to an independent time delay.
- Page 31 Inverse Time Delay Characteristic The inverse characteristic is defined by the following formula : ⎛ ⎞ ⎜ ⎟ ⎜ ⎟ ⎜ ⎟ − ⎜ ⎟ ⎝ ⎠ where : = operating time in seconds = time Multiplier Setting = applied input voltage = relay setting voltage NOTE : this equation is only valid for ratio >...
- Page 32 Time delay settings Each voltage element is associated to an independent time delay. Each measuring element time delay can be blocked by the operation of a user defined logic (optical isolated) input (see “Blocking logic1” or “Blocking logic2” functions). Element Time delay type 1st stage Definite Time (DT) or IDMT...
- Page 33 COMMUNICATIONS FRONT PORT (RS232) Front port Communication Parameters (Fixed)Protocol Modbus RTU Address To be specified in the « COMMUNICATIONS » menu of therelay Messages format IEC60870FT1.2 Baud rate 19200 bits/s Parity Without Stop bits Data bits REAR PORT (RS485) Rear port settings Setting options Setting available for:...
- Page 34 VT RATIOS The primary and secondary rating can be independently set foreach set of VT inputs, for example the residual VT ratio can bedifferent to that used for the phase voltages. Voltage ranges Primary Secondary 57 – 130V 0,1 – 100kV 57 –...
- Page 35 *Link terminals 30 and 32 if the relay is connected at ogramable input2 the end of the RS485 bus Date: 9 9 / 10 / 27 Page 1/1 Drawn By: Revision: V 002 Checked By: HF9024 (DUA2.1) Approved By: Araghi...
- Page 36 *Link terminals 30 and 32 if the relay is connected at ogramable input2 the end of the RS485 bus Date: 9 9 / 10 / 27 Page 1/1 Drawn By: Revision: V 002 Checked By: HF9024 (DUA2.1) Approved By: Araghi...
