Samsung DB10D - LCD Display Quick Setup Guide
- User manual (161 pages) ,
- Quick setup manual (2 pages) ,
- Quick setup manual (2 pages)
Advertisement

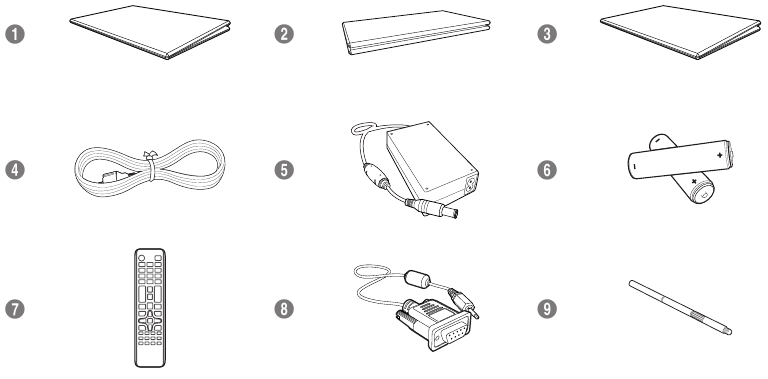

Checking the Components
- Quick setup guide
- Warranty card (Not available in some locations)
- Regulatory guide
- Power cord
- DC power adapter
- Batteries (Not available in some locations)
- Remote Control
- RS232C-Stereo cable
- STAND-BAR

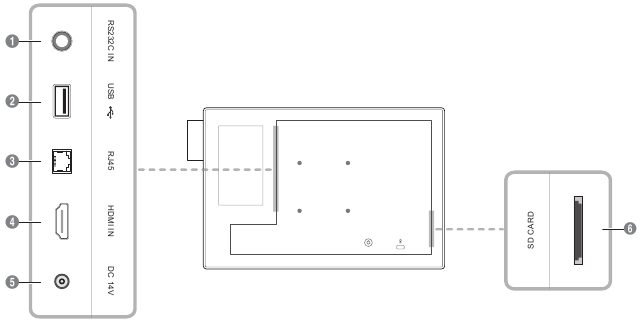

Reverse Side
- Connects to MDC using an RS232C-Stereo cable.
- Connect to a USB memory device.
- Connects to MDC using a LAN cable.
- Connects to a source device using an HDMI cable.
- Connects to the DC power adapter.
- Connect to an SD memory card.

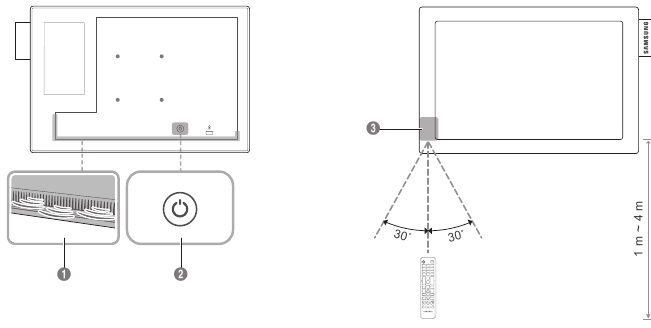

Control Panel
- Speaker
- Use this button for turning the Display on and off.
- Remote sensor
Press a button on the remote control pointing at the sensor on the front of the product to perform the corresponding function.- Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.

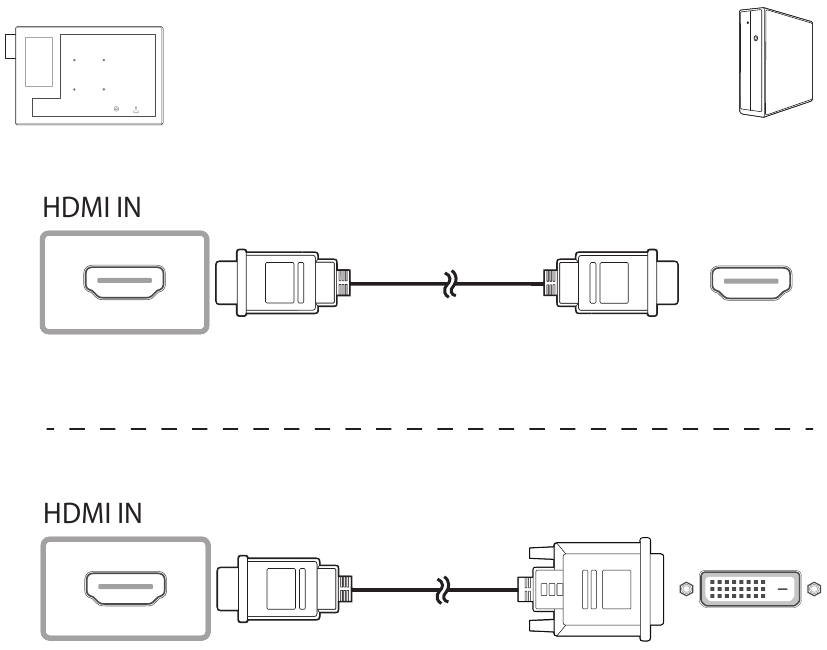

Connecting to a PC
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.

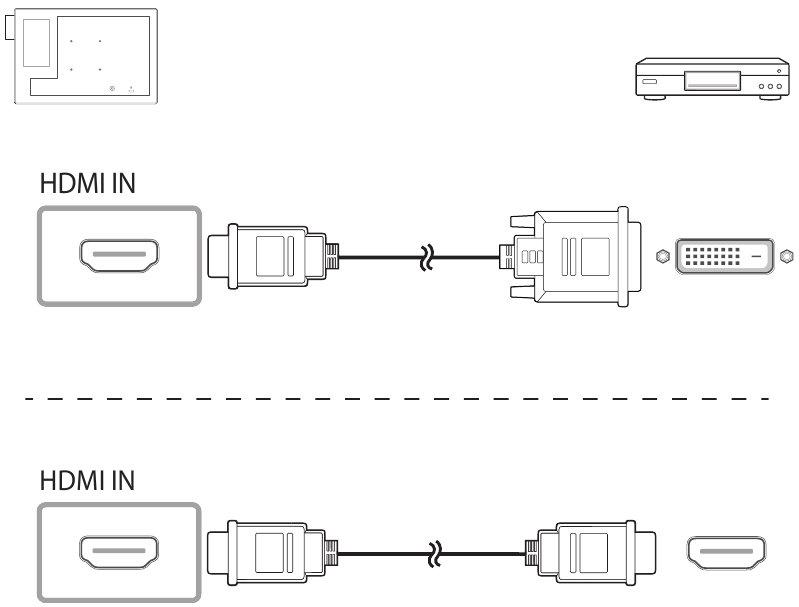

Connecting to a Video Device

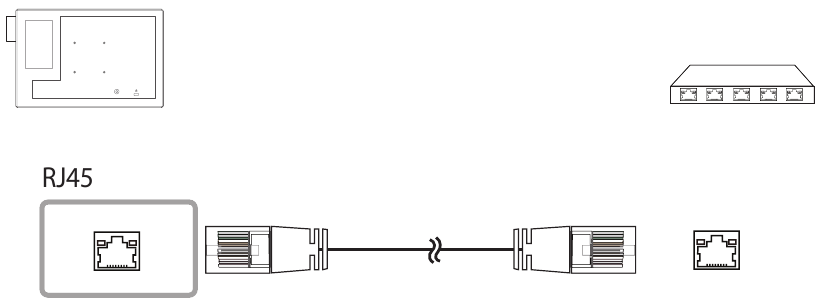

Connecting the LAN Cable
Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair

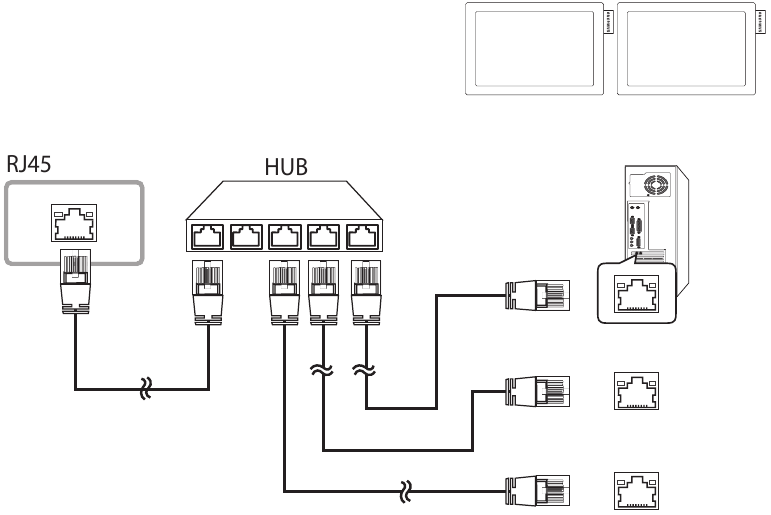

Connecting to MDC
For details on how to use the MDC programme, refer to Help after installing the programme.
The MDC programme is available on the website.
Specifications
| Model Name | DB10D | |
| Panel | Size | 25 cm |
| Display area | 21.7 cm (H) x 13.56 cm (V) | |
| Dimensions (W x H x D) | 24.68 x 16.52 x 2.49 cm | |
| Weight | 0.6 kg | |
| Synchronization | Horizontal Frequency | 30 ~ 81 kHz |
| Vertical Frequency | 48 ~ 75 Hz | |
| Resolution | Optimum resolution | 1280 x 800 @ 60 Hz |
| Maximum resolution | 1920 x 1080 @ 60 Hz | |
| Maximum Pixel Clock | 148.5 MHz (Analogue, Digital) | |
| Power Supply | AC 100 to 240 VAC, 60 / 50 Hz ± 3 Hz Refer to the label at the back of the product as the standard voltage can vary in different countries. | |
| Environmental considerations | Operating | Temperature: 0°C ~ 40°C (32°F ~ 104°F) Humidity: 10% ~ 80%, non-condensing |
| Storage | Temperature: -20°C ~ 45°C (-4°F ~ 113°F) Humidity: 5% ~ 95%, non-condensing | |
- Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems.
Two-way data exchange between the monitor and PC system optimizes the monitor settings.
Monitor installation takes place automatically. However, you can customize the installation settings if desired. - Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may appear brighter or darker on the panel. This does not affect product performance.
- This device is a Class A digital apparatus.
(For India Only)
This product is RoHS compliant.
For more information on safe disposal and recycling visit our website www.samsung.com/in or contact our
Helpline numbers -1800 40 SAMSUNG (1800 40 7267864) (Toll-Free) / 1800 5 SAMSUNG (1800 5 7267864) (Toll-Free)
PowerSaver
| PowerSaver | Normal Operation | Power saving mode (SOG Signal: Not Support the DPM Mode) | Power off | ||
| Rating | Typical | Max | |||
| Power Consumption | 17 W | 18 W | 18.7 W | 0.5 W | 0.5 W |
- The displayed power consumption level can vary in different operating conditions or when settings are changed.
- SOG(Sync On Green) is not supported.
- To reduce the power consumption to 0, disconnect the power cord.
Disconnect the power cable if you will not be using the product for an extended period of time (during vacation, etc.).
Troubleshooting Guide
| Issues | Solutions |
| The screen keeps switching on and off. | Check the cable connection between the product and PC, and ensure the connection is secure. |
| No Signal is displayed on the screen. | Check that the product is connected correctly with a cable. |
| Check that the device connected to the product is powered on. | |
| Not Optimum Mode is displayed. | This message is displayed when a signal from the graphics card exceeds the product's maximum resolution and frequency. |
| Refer to the Standard Signal Mode Table and set the maximum resolution and frequency according to the product specifications. | |
| The images on the screen look distorted. | Check the cable connection to the product. |
| The screen is not clear. The screen is blurry. | Adjust Coarse and Fine. |
| Remove any accessories (video extension cable, etc) and try again. | |
| Set the resolution and frequency to the recommended level. | |
| The screen appears unstable and shaky. | Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product. Then, change the screen settings if required by referring to the Additional Information on the product menu and the Standard Signal Mode Table. |
| There are shadows or ghost images left on the screen. | |
| The screen is too bright. The screen is too dark. | Adjust Brightness and Contrast. |
| Screen colour is inconsistent. | Go to Picture and adjust the Colour Space settings. |
| White does not really look white. | Go to Picture and adjust the White Balance settings. |
| There is no sound. | Check the volume. |
| The volume is too low. | Adjust the volume. |
| If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software programme. | |
| The remote control does not work. | Make sure that the batteries are correctly in place (+/-). |
| Check if the batteries are flat. | |
| Check for power failure. | |
| Make sure that the power cord is connected. | |
| Check for any special lighting or neon signs switched on in the vicinity. |
Contact SAMSUNG WORLD WIDE
Web site: www.samsung.com/displaysolutions
- Download the user manual from the website for further details.
| Country/Area | Customer Care Centre |
| AUSTRALIA | 1300 362 603 |
| BANGLADESH | 09612300300 08000300300 (Toll free) |
| CAMBODIA | +855-23-993232 1800-20-3232 (Toll free) |
| HONG KONG | 3698 4698 |
| INDIA | 1800 40 SAMSUNG (1800 40 7267864) (Toll-Free) 1800 5 SAMSUNG (1800 5 7267864) (Toll-Free) |
| INDONESIA | 021-5699-7777 0800-112-8888 (Toll Free) |
| JAPAN | 0120-363-905 |
| LAOS | +856-214-17333 |
| MACAU | 0800 333 |
| MALAYSIA | 1800-88-9999 +603-7713 7420 (Overseas contact) |
| MYANMAR | +95-1-2399-888 |
| NEPAL | 16600172667 (Toll Free for NTC Only) 9801572667 (Toll Free for Ncell users) |
| NEW ZEALAND | 0800 726 786 |
| PHILIPPINES | 1-800-10-726-7864 [PLDT Toll Free] 1-800-8-726-7864 [Globe Landline and Mobile] 02- 422-2111 [Standard Landline] |
| SINGAPORE | 1800 7267864 | 1800-SAMSUNG |
| SRI LANKA | 011 SAMSUNG (011 7267864) |
| TAIWAN | 0800-32-9999 0809-00-5237 (B2B / Dealer) |
| THAILAND | 0-2689-3232 1800-29-3232 (Toll free) |
| VIETNAM | 1800 588 889 |
The warranty will be void in the event of a breakdown due to exceeding the maximum recommended hours of use per day of 16 hours.
The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
