Raritan LCD KVM Console®
(T1700/T1900)
Quick Installation and Setup Guide
Congratulations on your purchase of Raritan LCD KVM Console, one of the best-known LCD KVM drawers in the current
market. The Raritan LCD KVM Console solution is an integrated, 1U device that manages servers or KVM in data centers,
server rooms and other space critical environments - directly from the racks in which they are installed.

Package Content

Raritan LCD KVM Console comes with the standard parts
shown in this section. Check and make sure they are included
and in good condition. If anything is missing, or damage,
contact the supplier immediately.
T1700
1. LCD KVM drawer x 1 pc
2. Fasteners for rear L-bracket x 4 pcs
3. Rear mounting L-bracket x 1 pair
*T1700 series mounting depth-adjustable from 395 to
880mm
4. Single or "one man" installation slides x 1 package
5. 3-in-1 KVM cable x 1 pc
6. Power cord x 1 pc
T1900
1. LCD KVM drawer x 1 pc
2. Fasteners for rear L-bracket x 4 pcs
3. Rear mounting L-bracket x 1 pair
*T1900 series mounting depth-adjustable from 315 to 880
mm
4. Single or "one man" installation slides x 1 package
5. 3-in-1 KVM cable x 1 pc
6. Power cord x 1 pc
QS Rule
LCD KVM Console QSG
QSG-T1700_T1900-0B-v1.1-E 255-37-0016-00

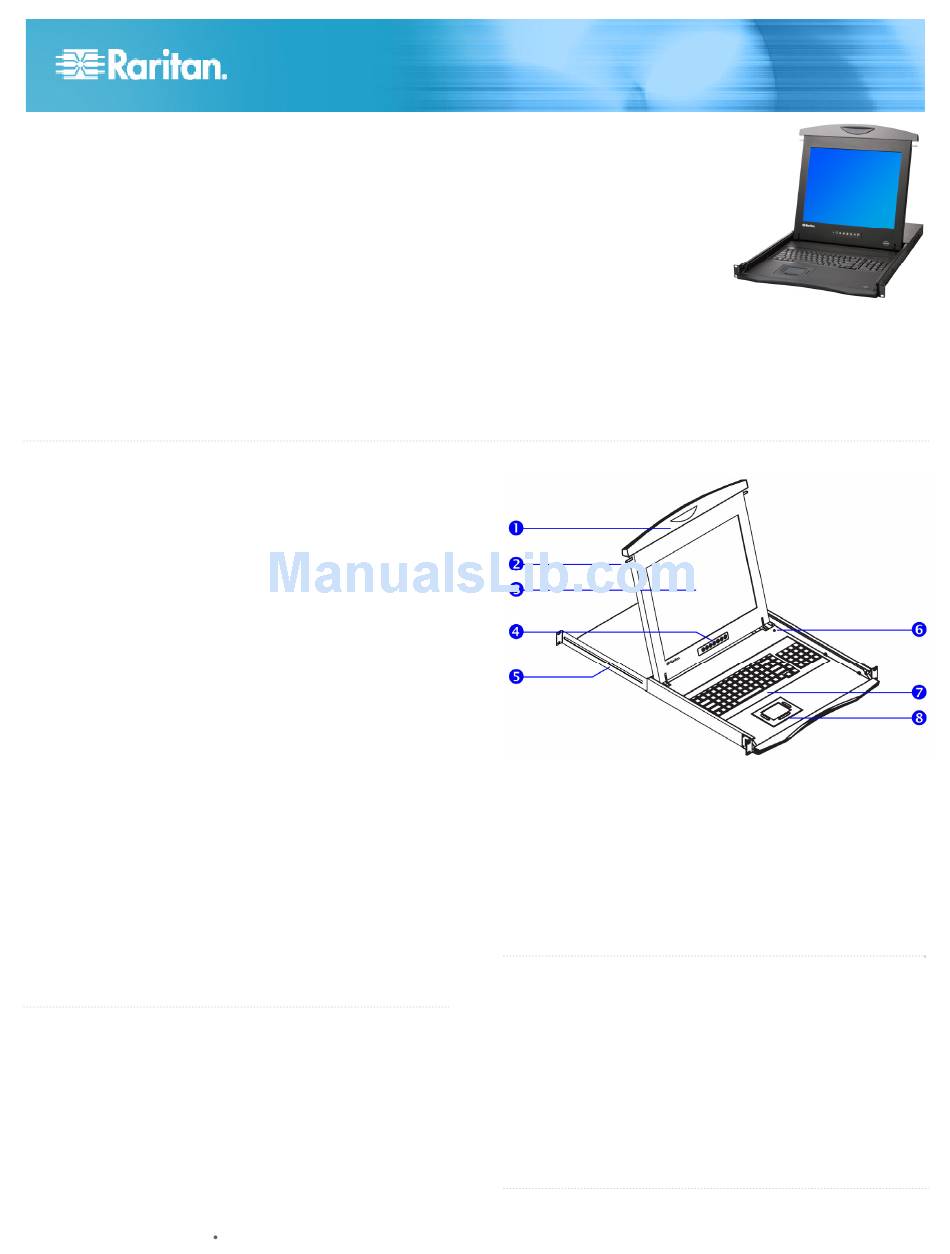

Structure Diagram

1. Carry handle to release the 2-pt lock
2. 2-point lock
3. LCD screen
4. LCD membrane
5. Adjustable rear mounting L-bracket
6. Micro switch for screen auto power off
7. Keyboard
8. Touchpad
QS Rule

Before Installation

•
It is very important to locate the LCD KVM Console in a
suitable environment.
•
The surface for placing and fixing the LCD KVM Console
should be stable and level or mounted into a suitable
cabinet.
•
Make sure the place has good ventilation, is out of direct
sunlight, away from sources of excessive dust, dirt, heat,
water, moisture, and vibration.
•
Convenience for connecting the LCD KVM Console to the
related facilities should be well considered too.
QS Rule
1
