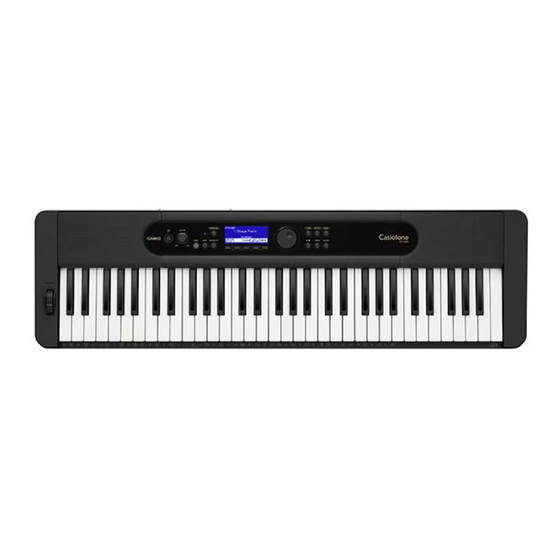

CT-S400/CT-S410/LK-S450
Contents
1
1.1
System Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2
Performance Controller Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3
Sound Generator Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
4
II
5
6
7
7.1
Bank Select (00H,20H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2
Modulation wheel or lever (01H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3
Portamento Time (05H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4
Data Entry (06H,26H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5
Channel Volume (07H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6
Pan (0AH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7
Expression Controller (0BH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.8
Damper pedal (sustain) (40H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.9
Portamento On/Off (41H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.10
Sostenuto (42H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.11
Soft Pedal (43H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.12
Filter Resonance (47H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.13
Release Time (48H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.14
Attack Time (49H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.15
Filter Cutoff Frequency (4AH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.16
Vibrato Rate (4CH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.17
Vibrato Depth (4DH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.18
Vibrato Delay (4EH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
MIDI Implementation
CASIO COMPUTER CO., LTD.
1
3
3
3
3
3
5
5
5
6
6
6
6
6
7
7
7
7
8
8
8
9
9
9
Advertisement
Table of Contents
Related Manuals for Casio CT-S410
Summary of Contents for Casio CT-S410
-
Page 1: Table Of Contents
CT-S400/CT-S410/LK-S450 MIDI Implementation CASIO COMPUTER CO., LTD. Contents Overview Product Configuration as a MIDI Device System Section ......... . - Page 2 12.3 CASIO General System Exclusive ....... 19 Setting Values and Send/ Receive Values Setting Value Tables 13.1...
-
Page 3: I Overview
Part I Overview Product Configuration as a MIDI Device As a MIDI device, this Instrument consists of the System Section, Sound Generator Section, and Per- formance Controller Section described below. Each of these sections can send and receive specific MIDI Messages in accordance with its function. - Page 4 Port Part number MIDI Receive Ch MIDI Transmit ch Assigned Function Details 1-16 Upper1 1-16 Upper2 1-16 Lower 1-16 Auto Harmonize Metronome Accomp Percussion Accomp Drum Accomp Bass Accomp Chord1 Accomp Chord2 Accomp Chord3 Accomp Chord4 Accomp Chord5 Port Part number MIDI Receive Ch MIDI Transmit Ch Assigned Function...
-
Page 5: Timbre Type Specific Operation
Port Part number MIDI Receive Ch MIDI Transmit Ch Assigned Function Details MIDI/Auto Recorder Solo Play/Recorder Track1 MIDI/Auto Recorder Solo Play/Recorder Track2 MIDI/Auto Recorder Solo Play/Recorder Track3 MIDI/Auto Recorder Solo Play/Recorder Track4 MIDI/Auto Recorder Solo Play/Recorder Track5 MIDI/Auto Play MIDI/Auto Play MIDI/Auto Play MIDI/Auto Play MIDI/Auto Play... -
Page 6: Channel Message
Part II Channel Message Note Off Format Message Format: 8nH kkH vvH 9nH kkH 00H(receive only) MIDI Channel Number Key Number velocity Transmit Sent when something is played on the keyboard or when play is performed using an arpeggio, etc. The key number changes in accordance with on the Transpose function and Octave Shift function. Receive Receipt stops a note being sounded by a note on message. -
Page 7: Modulation Wheel Or Lever (01H)
BnH 26H llH (LSB) MIDI Channel Number MSB Value LSB Value Transmit Sent when there is a change to the parameter assigned to RPN, NRPN. (CT-S400/CT-S410) Receive Receipt changes the parameter assigned to RPN, NRPN. Channel Volume (07H) Message Format:... -
Page 8: Pan (0Ah)
Receive Receipt changes the part volume. Pan (0AH) Message Format: BnH 0AH vvH MIDI Channel Number Value(Note1) Note1: For information about the relationship between setting values and send/receive values, see “13.5 Pan Setting Value Table” in “IV Setting Values and Send/Receive Values”. Receive Receipt changes the pan of the corresponding part. -
Page 9: Portamento On/Off (41H)
• Timbre Type: LM (Linear Morphing) Piano Continuous control of the following is performed in accordance with the value of the received message. – Piano note decay rate – Resonance characteristics and decay rate of Damper Resonance effect resonance note see “13.3 Sustain Pedal Setting Value Table”... -
Page 10: Filter Resonance (47H)
7.12 Filter Resonance (47H) Message Format: BnH 47H vvH MIDI Channel Number Value Receive Receipt changes the filter resonance intensity. 7.13 Release Time (48H) Message Format: BnH 48H vvH MIDI Channel Number Value (Note1) Note1: For information about the relationship between setting values and send/receive values, see the “13.4 –64 - 0 - +63 Setting Value Table”... -
Page 11: Vibrato Rate (4Ch)
7.16 Vibrato Rate (4CH) Message Format: BnH 4CH vvH MIDI Channel Number Value (Note1) Note1: For information about the relationship between setting values and send/receive values, see the “13.4 –64 - 0 - +63 Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document. Receive Receipt changes the rate of vibrato. -
Page 12: Reverb Send Level (5Bh)
BnH 65H 00H BnH 06H mmH BnH 26H llH MIDI Channel Number MSB Value(00H - 18H) LSB Value(Transmit:00H, Receive:Ignored) Transmit Sent when calling Registration. (CT-S400/CT-S410) Sent when the bend range is changed. (CT-S400/CT-S410) Receive Receipt changes bend range of the corresponding part. -
Page 13: All Sound Off (78H)
Null Message Format: BnH 64H 7FH BnH 65H 7FH MIDI Channel Number Transmit Sent when there is a change to the parameter assigned to RPN, NRPN. (CT-S400/CT-S410) Receive Receipt de-selects RPN, NRPN. 7.24 All Sound Off (78H) Message Format: BnH 78H 00H MIDI Channel Number Transmit Sent when MIDI send related settings are changed. -
Page 14: Reset All Controllers (79H)
7.25 Reset All Controllers (79H) Message Format: BnH 79H 00H MIDI Channel Number Transmit Sent when MIDI send related settings are changed. Receive Receipt initializes each performance controller. 7.26 All Notes Off (7BH) Message Format: BnH 7BH 00H MIDI Channel Number Receive Receipt releases (key release) all voices that are sounding. -
Page 15: Program Change
Receive Receipt performs the same operation as when All Notes Off is received. Program Change Message Format: CnH ppH MIDI Channel Number Program Number (Note1) Note1: For details about the relationship between the program number and the tone, see the Tone List that comes with the Instrument. -
Page 16: Pitch Bend Change
MIDI Channel Number Value LSB Value MSB Transmit Sent when the pitch bend wheel is operated. (CT-S400/CT-S410) Receive Receipt changes the pitch of the currently sounding note. The range of the pitch change depends on the bend range value setting. -
Page 17: System Message
Instrument-specific formats. ID Number The ID numbers handed by this Instrument are shown below. ID Number ID Name Casio Computer Co. Ltd Non Real Time System Exclusive Message Real Time System Exclusive Message 12.1 Universal Real Time System Exclusive Message Message Format: F0H 7FH 7FH..F7H... - Page 18 Transmit Sent when the tuning setting is changed. Receive Receipt changes the tuning setting. 12.1.3 Master Coarse Tuning Message Format: F0H 7FH 7FH 04H 04H llH mmH F7H LSB Value(Transmit:00H,Receive:Ignored) MSB Value(28H - 58H) Receive Receipt changes the Master Coarse Tuning parameter. 12.1.4 Reverb Type Message Format:...
-
Page 19: Universal Non Real Time System Exclusive Message
Receive Though the Instrument does not support GM2, receipt of the GM2 System On message has the same result as receipt of the GM System On message. 12.3 CASIO General System Exclusive Message Format: F0H 44H 7EH 7FH iiH ccH ssH ggH ppH ddH ... - Page 20 “1.3.2 Instrument Part Block” of this document. Note2: For information about the relationship between setting values and send/receive values, see “13.9 Reverb Type (CASIO General System Exclusive) Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document.
-
Page 21: Setting Values And Send/ Receive Values
Part IV Setting Values and Send/ Receive Values Setting Value Tables 13.1 0 - 127 Setting Value Table Receive Value DSP Parameter Value Parameter 00H - 00H 7FH - 7FH 13.2 Off/On Setting Value Table Transmit Value Receive Value Parameter 00H - 3FH 40H - 7FH 13.3... -
Page 22: Fine Tuning Setting Value Table
Parameter Small Room Medium Room Large Room Medium Hall Large Hall Plate 13.8 Chorus Type Setting Value Table Transmit Value Receive Value Parameter Chorus1 Chorus2 Chorus3 Chorus4 FB Chorus Flanger 13.9 Reverb Type (CASIO General System Exclusive) Setting Value Table... -
Page 23: Chorus Type (Casio General System Exclusive) Setting Value Table
Large Room1 Large Room2 Stadium1 Stadium2 Room4 Room5 Church Hall3 Hall4 Hall5 Cathedral Tone 13.10 Chorus Type (CASIO General System Exclusive) Setting Value Table Transmit Value Receive Value Parameter Chorus1 Chorus2 Chorus3 Chorus4 FB Chorus Flanger4 Flanger3 Flanger2 Flanger1 Deep Chorus Tone 13.11... - Page 24 Transmit Value Receive Value Parameter Short1 Short2 Echo Tempo Sync Short Tempo Sync Middle Tempo Sync Long Ambience Middle1 Middle2 Long1 Long2 Middle Pan Long Pan1 Long Pan2 Long Pan3 Tone...
-
Page 25: Midi Implementation Notation
Part V MIDI Implementation Notation Value Notation 14.1 Hexadecimal Notation MIDI implementation sometimes requires that data be expressed in hexadecimal format. Hexadecimal values are indicated by the letter “H” after the value. The hexadecimal equivalents of decimal values 10 through 15 are expressed as the letters A through F. The table below shows the hexadecimal equivalents for decimal values 0 through 127, which are often used in MIDI messages. - Page 26 Decimal Hexadecimal Binary 00000000B 00000001B 00000010B 00000011B 00000100B 00000101B 00000110B 00000111B 00001000B 00001001B 00001010B 00001011B 00001100B 00001101B 00001110B 00001111B 00010000B 01111101B 01111110B 01111111B...
