ViewSonic EP1052T Series Quick Start Manual

CAUTION
Risk of explosion if the battery is replaced by an incorrect type.
Wait one-half hour after switching off before handling parts.
- Replacement of a battery with an incorrect type that can be defeat a safeguard;
- Disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion;
- Leaving a battery in an extremely high temperature surrounding environment
that can result in an explosion or the leakage of flammable liquid or gas;
- A battery subjected to extremely low air pressure that may result in an explosion or the
leakage of flammable liquid or gas.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure and Industry Canada
RSS-102 RF exposure limits set forth for an uncontrolled environment. This device and
its antenna must not be co-located or operating in conjunction with any other antenna
or transmitter. To comply with FCC RF exposure and Industry Canada RSS-102 RF
exposure compliance requirements, this grant is applicable to only Mobile Configura-
tions. The antennas used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Cet equipement est conforme aux limites d'exposition aux rayonnements enoncees
pour un environnement non controle et respecte les regles d'exposition aux frequences
radioe lectriques (RF) CNR-102 de I'IC. Cet equipement doit etre installe et utilize en
gardant une distance de 20 cm ou plus entre le radiateur et le corps humain (a
I'exception des extremites : mains, poignets, pieds et chevilles).
This device is restricted to indoor use due to its operation in the 5.15 to 5.25GHz
frequency range.
Les dispositifs fonctionnant dans la bande 5.15-5.25GHz sont reserves uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable
aux systèmes de satellites mobiles utilisant les mêmes canaux.
P.6
EP1052T Series
Quick Start Guide
This is a quick walkthrough of the set up process. For complete documentations
and quick start guides, please visit
Box Content
Room booking Mounting plate Glass mount Mounting guide Glass mount NFC sticker Screw
panel
Port Connections
1
1
1
Screw Hole
2 Camera*
3
Microphone*
4
LED
5 NFC/RFID reader
* The functions marked with "*" only appear on certain models.
Q41M78SP05904C
http://www.viewsonic.com/support/
Front View
261.7*181.6(mm)
(1 Spare) (1 Spare)
sticker sheet cover sheet
M3*13
1
1
16 17
2
4 3 4 5
USB Reset USB Ethernet Power DC
MicroSD ADB Audio
LED
6 7 8 9 10 11 12 13 14 15
1
6 14
MicroSD card slot 10 Reset 12V DC power
7 ADB 11 15
USB port Expansion*
8
3.5mm audio 12 16
Ethernet RJ45 Kensington Lock
9
USB port 13 Power LED 17 VESA mount (MIS-D75)
Screw spec: M4
P.1

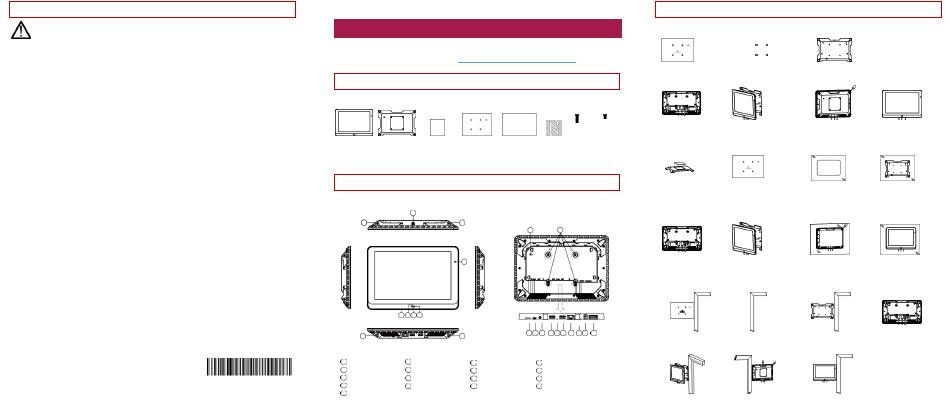

Mounting and Installation
Option 1: Flush Wall Mount
Step 1 Step 2
Paste the mount sheet on Drill the four mounting holes
the wall
Step 4 Step 5
x 3 x 2
Plug in the required cables Attach the room panel to
to the room panel the mounting plate
Option 2: Mounting on Glass
Screw
Step 1 Step 2
M3*6
Paste sticker on the back The mount sheet can be
of the mounting plate temporary fixed on the other
Ensure the glass surface is side of the glass to locate the 2.Align the mounting plate to
area for the cover sheet.
clean and dry
Step 5 Step 6
Plug in the required cables Attach the room panel to the
to the room panel mounting plate
Option 3: Mounting close to a window frame
Step 1 Step 2
Window frame Window frame
Expansion
Align the mounting sheet guide Drill the four mounting
parallel to the window frame holes
Step 5 Step 6
Window frame
Attach the room panel Lock the room panel using a
to the mounting plate screw at the top, and two
screws at the outside corners
Step 3
Install the mounting plate
using the four screws
Step 6 Step 7
Screw M3*13
Screw M3*13
Screw of cover plate Screw of cover plate
Lock the room panel to the The room panel is ready
mounting plate using a to be brought online
screw at each corner
Step 3 Step 4
1.Affix the cover sheet to the Affix the mounting plate
glass surface. to the glass surface
the cover sheet with the
Kensington lock hole.
Step 7 Step 8
Screw M3*13 Screw M3*13
Cover sheet
Screw of cover Screw of cover
p late p late
Lock the room panel to the The room panel is ready to
mounting plate using a be brought online
screw at each corner
Step 3 Step 4
Window frame
Plug in the required cables
Install the mounting plate
using the four screws to the room panel
Step 7
Window frame
Screw M3 *6
Screw M3*13
Screw of cover
p late
The room panel is ready
to be brought online
P.2
