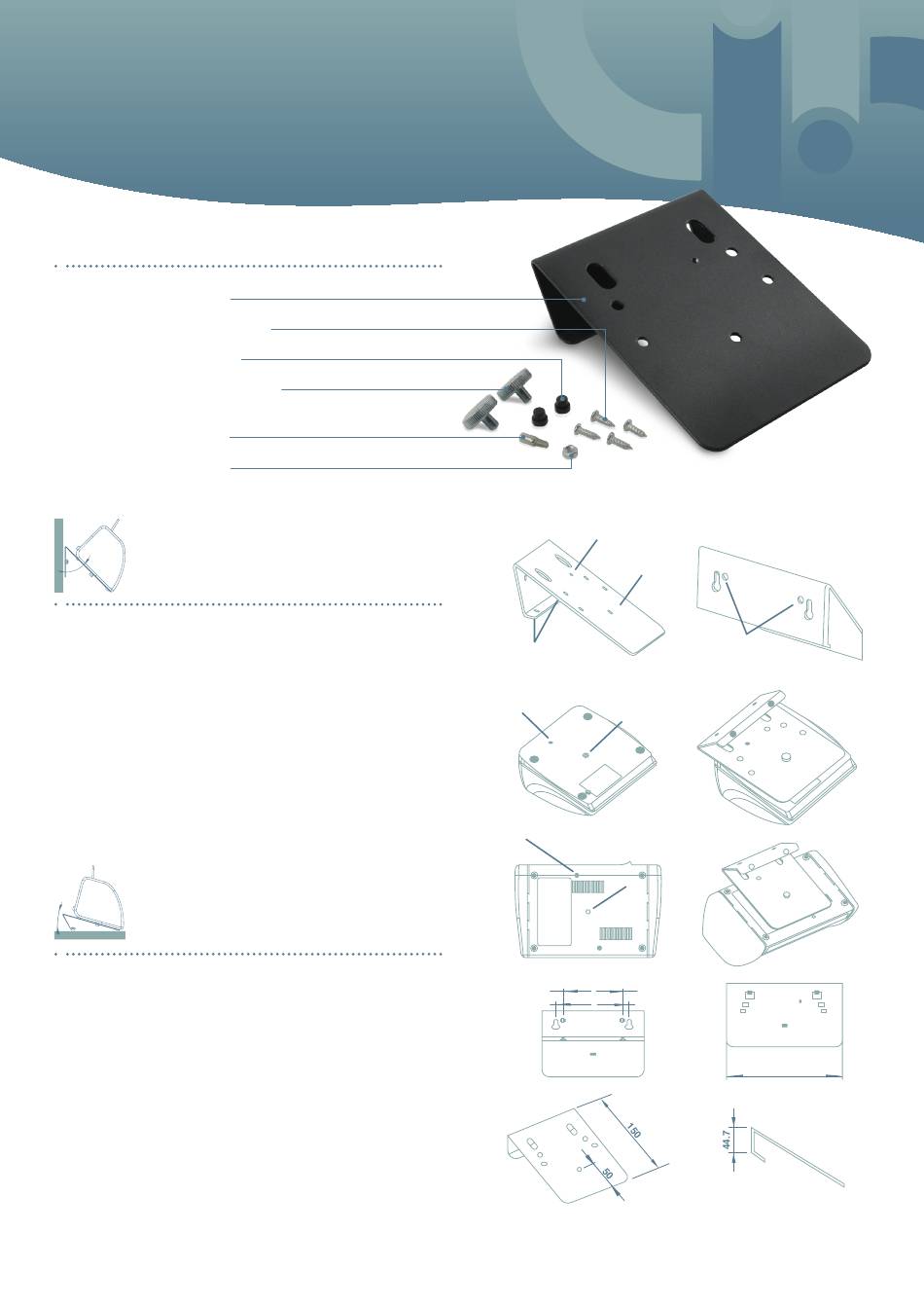

AccuBANKER AccuSTAND D470 Quick Start Manual

AccuSTAND
Installation Guide for: D470 • LED420 • LED425 • LED430 • LED440
Parts needed
1. Metal stand (1pc)
2. Holding screws (4pcs)
3. Rubber feet (2pcs)
4. Thumb screw * (1-2pcs)
*2pcs needed for D585 model only
5. Guider pole (1pc)
6. Guider knob (1pc)
Vertical
surface installation
45°
1. In the location where the detector will be
installed, make two point marks 85 mm
from each other Fig. 2, hole D in a horizontal
position to install the holding screws.
2. Tighten the holding screws into the
surface/wall to support the metal base.
3. Proceed to set up the metal base with
the detector as described in the instructions
below (horizontal surface installation).
Horizontal
15°
surface installation
1. Place the rubber feet into the two holes
labeled C in Fig. 1
2. Screw the Guider pole into the top of the
base in hole A indicated in Fig. 1. Tighten the
mounting Guider knob into the Guider pole.
3. Insert the Guider pole into hole E located at
the base of the detector Fig. 3. Attach the
Thumb screw to secure the base of the unit
as shown in Fig. 4, using threaded hole F
indicated in Fig. 3.
7104 NW 50 Street, Miami, FL 33166 USA • 1-888-993-2228 • www.AccuBANKER.com
Fig. 1
A
B
C
Fig. 3
E
F
E
F
70
85
Fig. 2
D
Fig. 4
120
