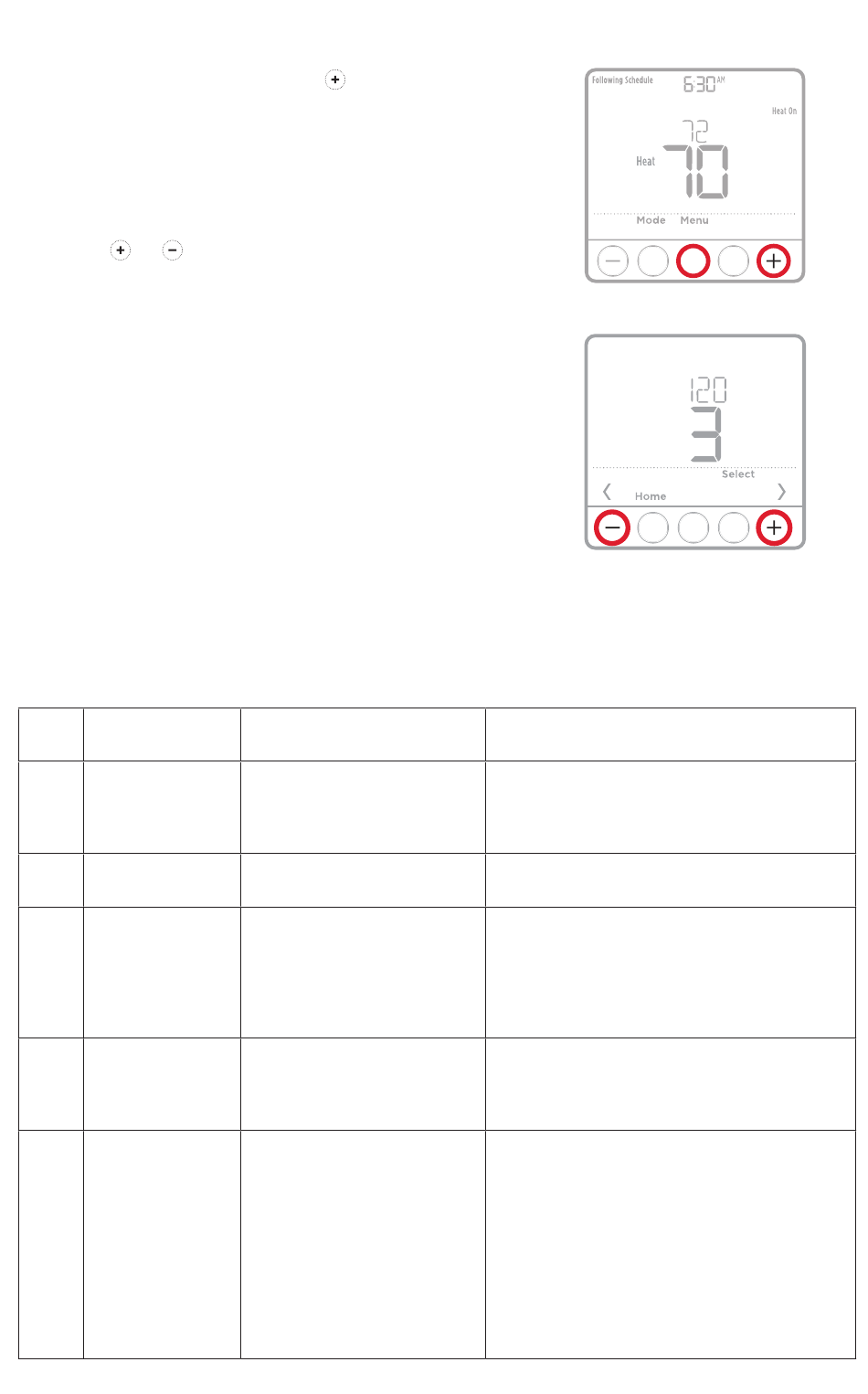

Installer setup (ISU)
1 Press and hold CENTER and
approximately 3 seconds to enter advanced
menu.
2 Press Select to enter ISU.
3 Press Select to cycle through menu setup
options.
4 Press or
from available options.
5 Press Select and confirm your settings or
press Back to ignore changes and return
to ISU menu screen to continue editing
another setup option.
6 To finish setup process and save your
setting, press Home and return to Home
screen.
NOTE: A complete list of all setup (ISU)
parameters and options starts below and
continues through page 9.
Advanced setup options (ISU)
NOTE: Depending on system settings, not all options may be available.
# ISU ISU Name
120 Scheduling Options
125 Temperature
Indication Scale
129 Wired Floor
Temperature Sensor
205 Heating Equipment
Type
299 Temperature Control
Mode
buttons for
to change values or select
ISU Options (factory defaults
in bold)
0 = Non-programmable
2 = 5-2 Programmable
3 = 5-1-1 Programmable
4 = 7-Day Programmable
0 = Fahrenheit
1 = Celsius
0 = None
1 = Wired
9 = Hot Water Radiant Heat
10 = Hot Water Radiant Floor
Heat
12 = Steam
1 = Air and Floor (AF Mode)
2 = Air Only, (A Mode)
3 = Floor Only (F Mode)
Notes
You can change default 5-1-1 schedule here. To edit
periods, temperature setpoints during days, go to
MENU/PROG.
Floor Temperature Sensor needs to be wired to S
terminal and configured if you want thermostat to
operate either in AF or F mode (ISU 299). If Floor
Temperature Sensor is wired to S terminal and
configured, actual floor temperature can be displayed
in thermostat Menu/Temp.
This ISU configuration helps to optimize control
algorithms and to force optimal default cycle rates for
controlled heating equipment.
This ISU is only displayed if ISU 129 is configured for
1 (wired floor sensor) and ISU 205 is set to 10 (Hot
Water Radiant Floor Heat). Default Mode is AF.
AF Mode: Controls and displays the ambient air
temperature. Maintains the floor temperature within
desired limits using an external floor temperature
sensor.
A Mode: Controls and displays the ambient air
temperature only.
F Mode: Controls and displays the floor temperature
only using an external floor temperature sensor.
