Sealey APMSV01 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when assembling or using
ˆ
this cabinet.
Locate cabinet in a suitable work area when assembling it.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep the cabinets clean and tidy in accordance with good workshop practice.
9
Keep children and unauthorised persons away from the assembly area.
9
It is recommended that two competent people are involved in assembling these units.
9
Consult vehicle manufacturers hand book / guide book for fixing recommendation in the vehicle.
9
Load heavier items low down in the unit.
9
DO NOT use the cabinets for any purpose other than that for which they are designed.
8
DO NOT clean the cabinet with any solvents which may damage the surfaces or the protective coating.
8
DO NOT move the cabinet when there are items placed inside.
8
DO NOT overload the cabinet.
8
2. INTRODUCTION

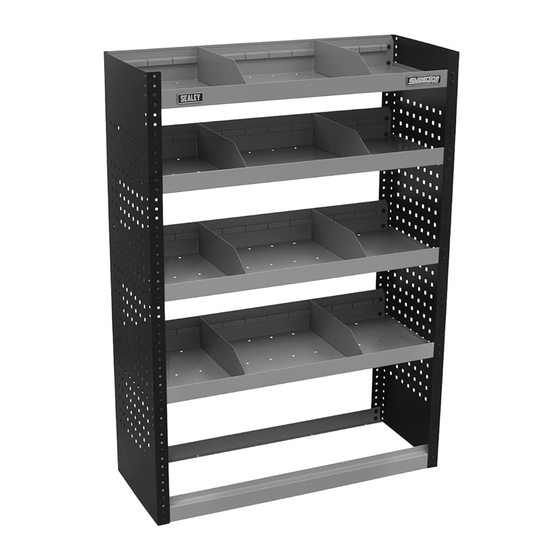

Model No. APMSV01
Modular van storage system designed to fit medium and large vans. Designed to fit close to the interior walls of the van freeing up precious
floor space. Robust steel construction with perforated tool side panels for extra organisation. Three shelves that can be height adjusted in
25mm increments. Eight dividers that adjust every 75mm ideal for parts trays and plastic parts bins. Supplied flat packed with six brackets to
ensure security and rigidity. Lockable door APMSV03 available (not included).
Model No. APMSV02
Modular van storage system, universally designed to fit multiple medium and large vans. Versatile slanted shelves and dividing system
allows you to maximise your storage space with minimal effort. Designed to fit close to the interior walls of the van freeing up precious floor
space. Robust steel construction with perforated tool side panels for extra organisation. Three slanted shelves that can be height adjusted in
25mm increments. One flat shelf with two steel dividers that adjust every 75mm. Supplied flat packed with six brackets to ensure security and
rigidity. Lockable door APMVS03 available (not included).
Model No. APMSV03
Modular van storage system lockable door front. Designed to fit either APMSV01 or APMSV02 and create a secure section to keep valuables
safe. Versatile sprung system allows you to place the door in any section of the frame to create the lockable space. Robust steel construction
with strong cylinder lock supplied with two keys. Easy self-assembly.
3. SPECIFICATION
Model no: .............................................APMSV01
Overall size (W x D x H) : ..... 926 x 380 x 1300mm
Shelf size (x4): ....................... 925 x 370 x 225mm
Shelf Partitions .................................................... 8
Model no: .............................................APMSV02
Overall size (W x D x H) : ..... 926 x 380 x 1300mm
Shelf size (x4): ....................... 925 x 370 x 225mm
Partition Plates .................................................... 2
Model no: .............................................APMSV03
Overall size (W x D x H) : .................850 x 300mm
© Jack Sealey Limited
MODULAR FLAT SHELF VAN STORAGE UNIT SERIES
APMSV01, APMSV02, APMSV03
MODEL NO:
Original Language Version
APMSV01, APMSV02, APMSV03 Issue 2 (3) 08/09/22
