UK-electronic Miniverb MEK Sounddesign Manual

With the belton btdr-2-x modul

Advertisement

Quick Links

UK-electronic ©2015

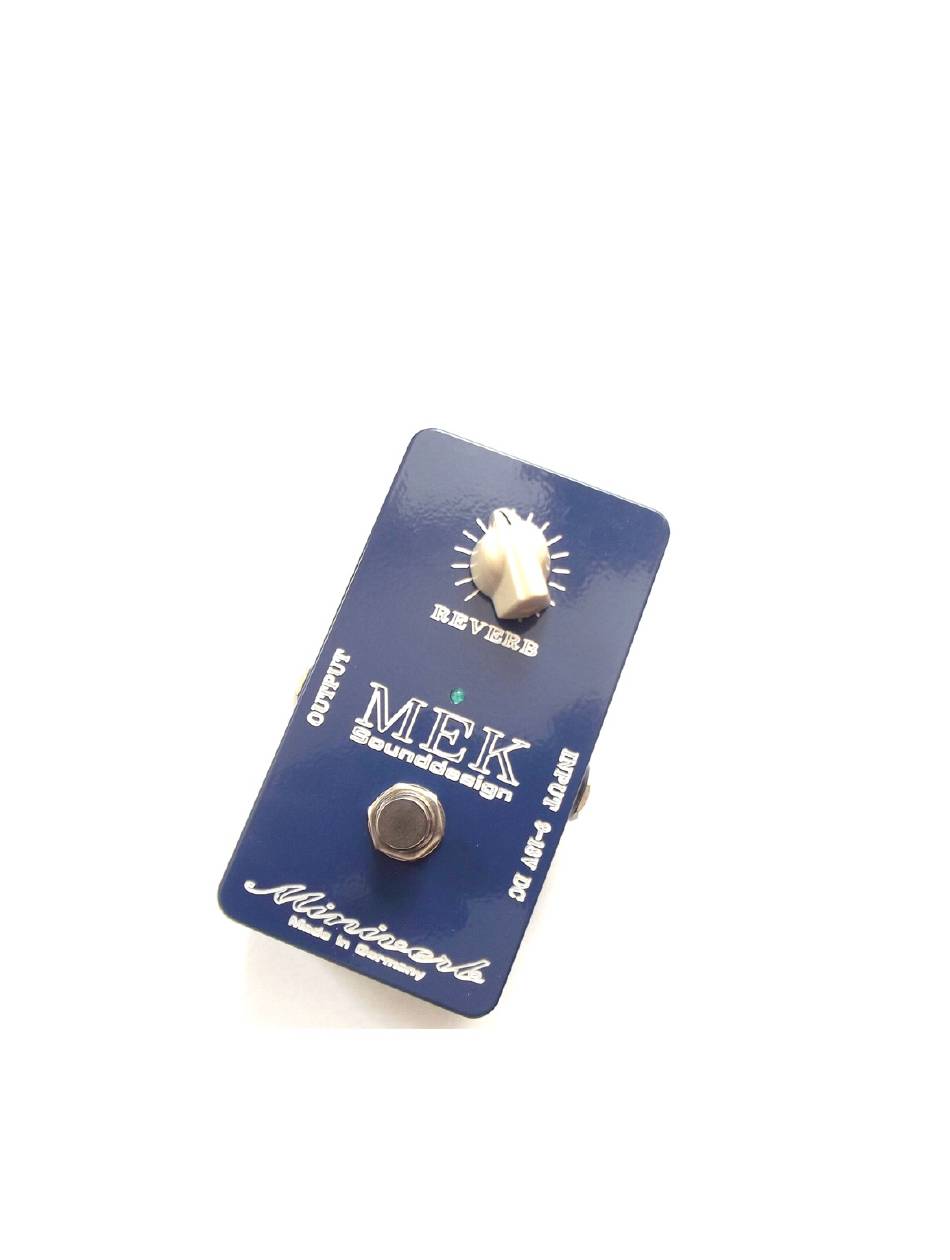

Manual Miniverb V2 with the Belton BTDR-2-X Modul
Page 1...2.........................................Introduction, Short circuit description
Page 3...4.........................................Basics
Page 5...6.........................................Bill of material
Page 5...7.........................................Soldering the pcb
Page 8....11.......................................Drill template, Circuit, External wiring
2015 © UK-electronic

Advertisement

loading

Summary of Contents for UK-electronic Miniverb MEK Sounddesign

  • Page 1 UK-electronic ©2015 Manual Miniverb V2 with the Belton BTDR-2-X Modul Page 1…2.........Introduction, Short circuit description Page 3…4.........Basics Page 5…6.........Bill of material Page 5...7.........Soldering the pcb Page 8..11........Drill template, Circuit, External wiring 2015 © UK-electronic...
  • Page 2 As controls one potentiometers are used, which the reverb level (Mix). Switching the effect onf/off with a hardware True bypass using a 3PDT switch and LED indicator. Due to the compact double side through-hole board, the structure is relatively simple and is described on the following pages. 2015 © UK-electronic...
  • Page 3 Some connection of components TL072 Widerstand DPDT Schalter BC 549C 2015 © UK-electronic...
  • Page 4 Color table for resistors MF207 FTE52 1% and a example 2015 © UK-electronic...
  • Page 5 Audio jack PCB-version (Mono- Output/Stereo- Input) 3PDT Switch Standard SL DC-jack ROKA isolated pcb-version LED spacer 22mm Some coloured wire/ isolated hose/ heat shrink Battery connector soft Socket LC 08 Soldering tin is not part of delivery 2015 © UK-electronic...
  • Page 6 In any case, the board must sit so that when you screw the peripheral groove does not touch any pins on the board. 2015 © UK-electronic...
  • Page 7 2015 © UK-electronic...
  • Page 8 2015 © UK-electronic The following drill diameter should be used: Potentiometer: 7 to 8mm Jacks: 11mm 3PDT switch 13 to 14mm, making it possible to better fit the board if the holes of the jack bushes not agree 100%. DC jack: 10mm LED: 3mm As knobs which are used for 6.35mm shaft with set screw.
  • Page 9 OUT1 OUT2...
