●Thank you so much for purchasing this product.
●This product is for family use only.
● Please read this instruction manual carefully
before using the product to ensure the correct and
safe use of this product.
●Pay special attention to Safety Precautions. (Page
2-4).
● Please safekeeping the Warranty Certificate and
the User's manual .

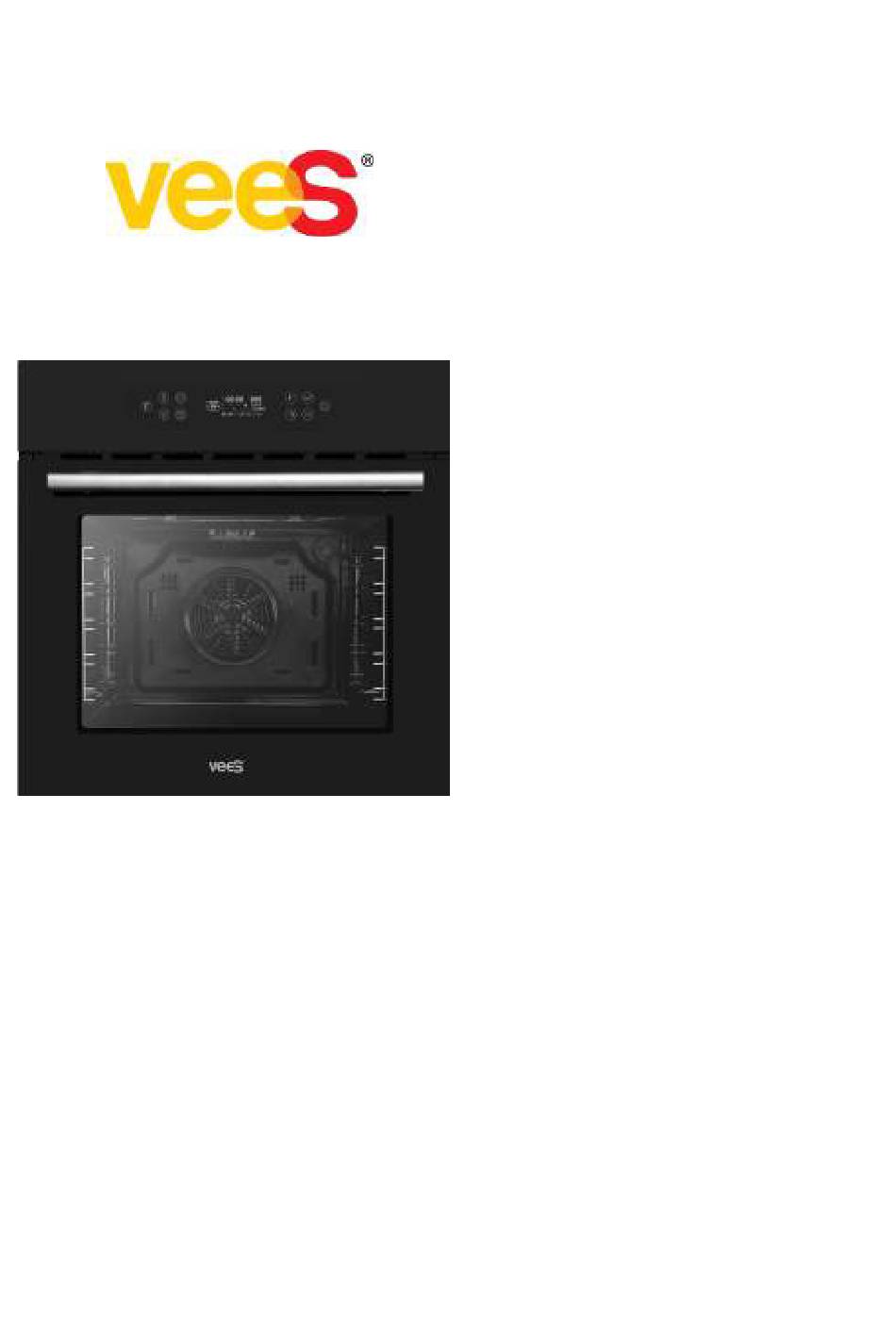

Built-in oven
Instructions for use installation
Family use built-in oven
Model: MO-70FD12FEC
Contents
Safety precautions.............................................. 2 ~4
use precautions.............................................4~5
Initial use precautions.......................................6
Appliance parts and operation................................7
●Oven component................................................7
●Accessories.........................................................7
●Control panel......................................................8
●Main display screen............................................9
●Function heating mode.....................................10
●Automatic program heating mode...................11
●Operation....................................................12~14
Usage method.......................................................15
●Cooking suggestion and instructions................15
●Energy saving tips.............................................15
Cleaning and maintenance....................................16
●Oven interior /oven door..................................16
●Remove the oven door......................................16
●Remove the slide-in racks.................................17
●Oven light replacement....................................17
●Sensor probe replacement...............................17
●Specifications....................................................18
Installation Instructions...................................19~22
The right of final interpretation of the manual
belongs to our company.
1
Advertisement
Table of Contents
Related Manuals for Vees MO-70FD12FEC
Summary of Contents for Vees MO-70FD12FEC
-
Page 1: Table Of Contents
Built-in oven Instructions for use installation Family use built-in oven Model: MO-70FD12FEC Contents Safety precautions…………........2 ~4 use precautions..........4~5 Initial use precautions........6 Appliance parts and operation........7 ●Oven component..........7 ●Accessories............7 ●Control panel............8 ●Main display screen..........9 ●Function heating mode........10 ●Automatic program heating mode....11 ●Operation............12~14... -
Page 2: Safety Precautions
Safety Precautions Be sure to observe To prevent the bodily injury and property damage, please be sure to observe the following safety precautions. ■The following icons show the extent of damage caused by incorrect operations. Warning: Indicates a potential hazard that, if unavoidable, may result in death or serious injury. Note: Indicates a potential hazard that, if unavoidable, may result in death or moderate injury. - Page 3 Warning ●Do not alter, disassemble or repair the product by yourself. (To avoid causing fire, electric shock or injury.) For repairs, please contact (Company name) Certification Maintenance Store for consultation. ●Do not clean the oven door glass with a rough scrubber or sharp scraper. (In order to avoid scratches on the surface of glass, resulting in glass crushing.) ●Be sure to use AC power sockets with specifications of AC220V-240V/16A separately.
-
Page 4: Use Precautions
Safety Precautions Be sure to observe Note ●Do not put inflammable materials in the oven. (So as not to cause a fire when accidentally turning on the oven) ●Do not sit or fall back on open products. (To avoid damaging the telescopic chute.) ●Do not use irritating, corrosive cleaners or sharp metal scrapers to clean glass doors of oven. - Page 5 Use Precautions Slide-in racks Placement Warning In order to ensure the safe use of the grate or tray, it is necessary to insert in the right direction and place the slide-in racks correctly. In addition, you can also refer to the level number displayed in the front of the oven when you open it. (There are five levels altogether.) This ensures that food does not slip out of the back during careful removal from the grate or tray.
-
Page 6: Initial Use Precautions
Initial Use Precautions Note: When using oven for the first time, there may be a small amount of smoking and odor, which is a normal phenomenon. Please adjust the temperature of the empty oven to 250 ℃ , and bake it with stereoscopic function for 30 minutes before using it. -
Page 7: Appliance Parts And Operation
Appliance parts and operation Oven Component Accessories ·Before first use, please clean all accessories and use soft cloth and neutral detergent to clean the oven. · Only original accessories can be used. ◆ Grate Used for baking and barbecuing ◆ Enameled baking tray Used for cooking large amounts of food, such as damp cakes, pastries, frozen foods, or for collecting fat/spills and gravy ◆... -
Page 8: Control Panel
Appliance parts and operation Control Panel 1. Function selecting button 2. Oven Lamp ON/OFF 3. Alarm/timer button 4. Main display screen 5. Decrease button, can used for heating mode selecting, temperature decrease or time setting. 6. Childproof lock button,press and hold for 3s 7. -
Page 9: Main Display Screen
Main display screen Icon Explanation Icon Explanation Heating mode icon Heating mode gear icon clock/duration setting icon clock display icon cooking start time setting Alarm icon icon clock setting digital tube Oven heating icon hour icon Temperature bar display icon minute icon Heat preservation mode icon... - Page 10 Func�on hea�ng mode Func�on Type of hea�ng Default Hea�ng icon temperature mode gear F--1 At room temperature, air circula�on can quickly thaw frozen food (without any heat). This is an easy control and fast way Defrost to speed up defros�ng �me and thawing process for ready-made vegetables and bu�er-filled foods.
-
Page 11: Automatic Program Heating Mode
Automatic program mode Icon Type of heating Heating mode gear Default temperature Default time(min) Insulation mode P--1 65 °C Warming mode P--2 40°C Toast mode P--3 180 °C Pizza mode P--4 180 °C Chicken leg mode P--5 190°C Bread mode P--6 190°C Cake mode... -
Page 12: Operation
Operation When the power is turned on, the screen displays “12:00” and the clock icon flashes 6 times. At this time, the oven is not working. After 6 seconds, the flashes stops. Press and hold ON/OFF button for 3 seconds, the product will be in standby mode. - Page 13 Setting the cooking time (duration) Used for cooking for a selected period of time. When the set time has elapsed, the oven switches off automatically. The cooking time is adjustable to max. 6 hours. 1. Select the heating mode and temperature you want: 2.
- Page 14 Setting the timer / alarm The alarm is used as a reminder function, which can be used to preheat or add seasoning during the heating process. The alarm will only ring when the alarm setting time is over, and the oven will not stop working. 1.
-
Page 15: Usage Method
Usage Method Cooking Suggestions and Instructions ■ Normal Suggestions •We suggest to preheat the oven before the food is put into the oven. • Normally , it is impossible to shorten the cooking time by increasing the temperature (food may be well cooked outside, but not yet inside). -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Oven Interior/Oven Door ■ Oven door Glass door should always be clean, to remove stubborn stains with kitchen absorbent paper, wet sponges and common detergents. •Do not use a steam cleaner to clean the oven. •Do not use detergents or corrosive detergents to clean glass door. •Do not use rough or friction materials or sharp metal scrapers to clean the oven glass door, as they may scratch the surface. -
Page 17: Remove The Slide-In Racks
Remove the Slide-in racks Remove the hanger to facilitate cleaning the side wall of the oven. Note: Operate this process must by hand slightly, or it will damage the enamel. • Remove all accessories such as grate and baking tray. •... -
Page 18: Specifications
Specifications Model MO-70FD12FEC Voltage 220-240V Rated power 2800W Upper Outer Ring Heat Pipe 1000W Upper inner heating pipe 1200W Lower heating tube 1000W Rear heating tube 1800W Rated frequency 50/60Hz Product size(width * depth * height) 595(width）X565(depth）X595(height) Rated volume... -
Page 19: Installation Instructions
Installation Instructions For installation personnel Important note ● The kitchen cover must be suitable to ensure that the oven works properly. ● The panel of kitchen equipment adjacent to the oven must be made of heat-resistant materials. Kitchen equipment made of plywood shall ensure that the glue can withstand a temperature of at least 120 degrees Celsius. When plastic or glue cannot withstand this temperature, the equipment will melt and deform. - Page 20 Installation Instructions For installation personnel Electrical Connectors Warning The wiring of oven must be equipped with all-pole disconnection device according to the wiring rules After installing the appliance, it is necessary to have other methods to disconnect the power supply. The power supply is disconnected by a contactable plug or by a fixed wiring switch that meets the wiring requirements.
