Wiring Diagram - Sharp R-241CWAA Service Manual

SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. CLOCK APPEARS ON DISPLAY.
R-241CWAA
for R-241CWAP
for
R-241CWAC
(Peru)
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. START KEY TOUCHED.
R-241CWAA
for R-241CWAP
for
R-241CWAC
(Peru)
NOTE: " " indicates components with potential above 250V.
THERMAL
CUT-OUT
95˚C (MG)
COM.
A3
B1
2ND. INTERLOCK
RELAY CONTROL
SWITCH
THERMAL
CUT-OUT
125˚C (OVEN)
1ST. LATCH
SWITCH

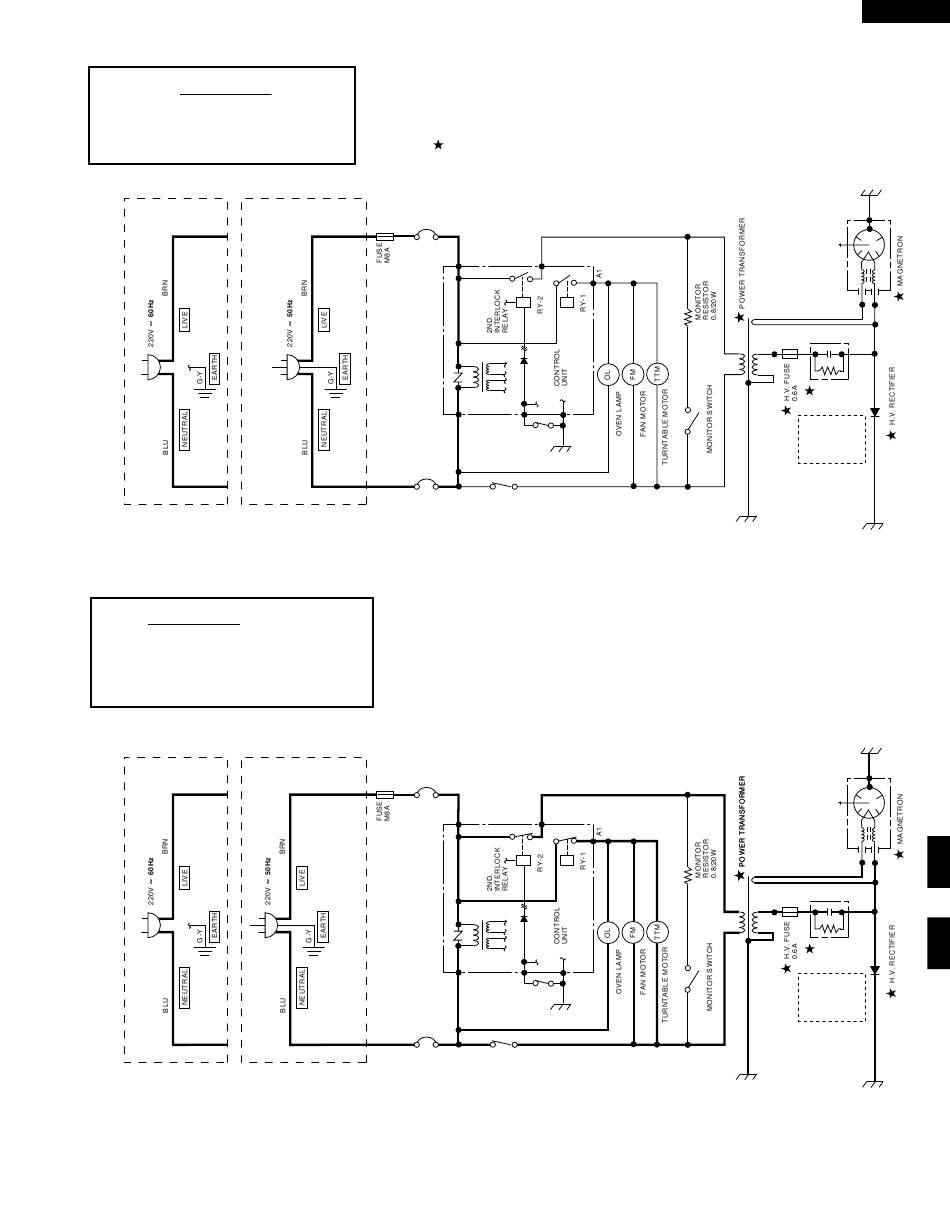

Figure O-1 Oven Schematic-OFF Condition
THERMAL
CUT-OUT
95˚C (MG)
COM.
A3
B1
2ND. INTERLOCK
RELAY CONTROL
SWITCH
THERMAL
CUT-OUT
125˚C (OVEN)
1ST. LATCH
SWITCH
Figure O-2 Oven Schematic-ON Condition
25
N.O.
B2
N.O.
B2
R-241CWAA
R-241CWAC
R-241CWAP
CAPACITOR
0.94µF
AC2000V
for R-241CWAP
(Peru)
CAPACITOR
0.75µF
AC2100V
CAPACITOR
0.94µF
AC2000V
for R-241CWAP
(Peru)
CAPACITOR
0.75µF
AC2100V
