Flue accessories
Ø 80/125 mm
Connection adapter Ø 80/125 mm –
Connection elbow87° with test
port without inspection aperture
Ø 60/100 mm
Connection adapter Ø 60/100 mm –
Concentric connection elbow, 87°
with test port without inspection
aperture

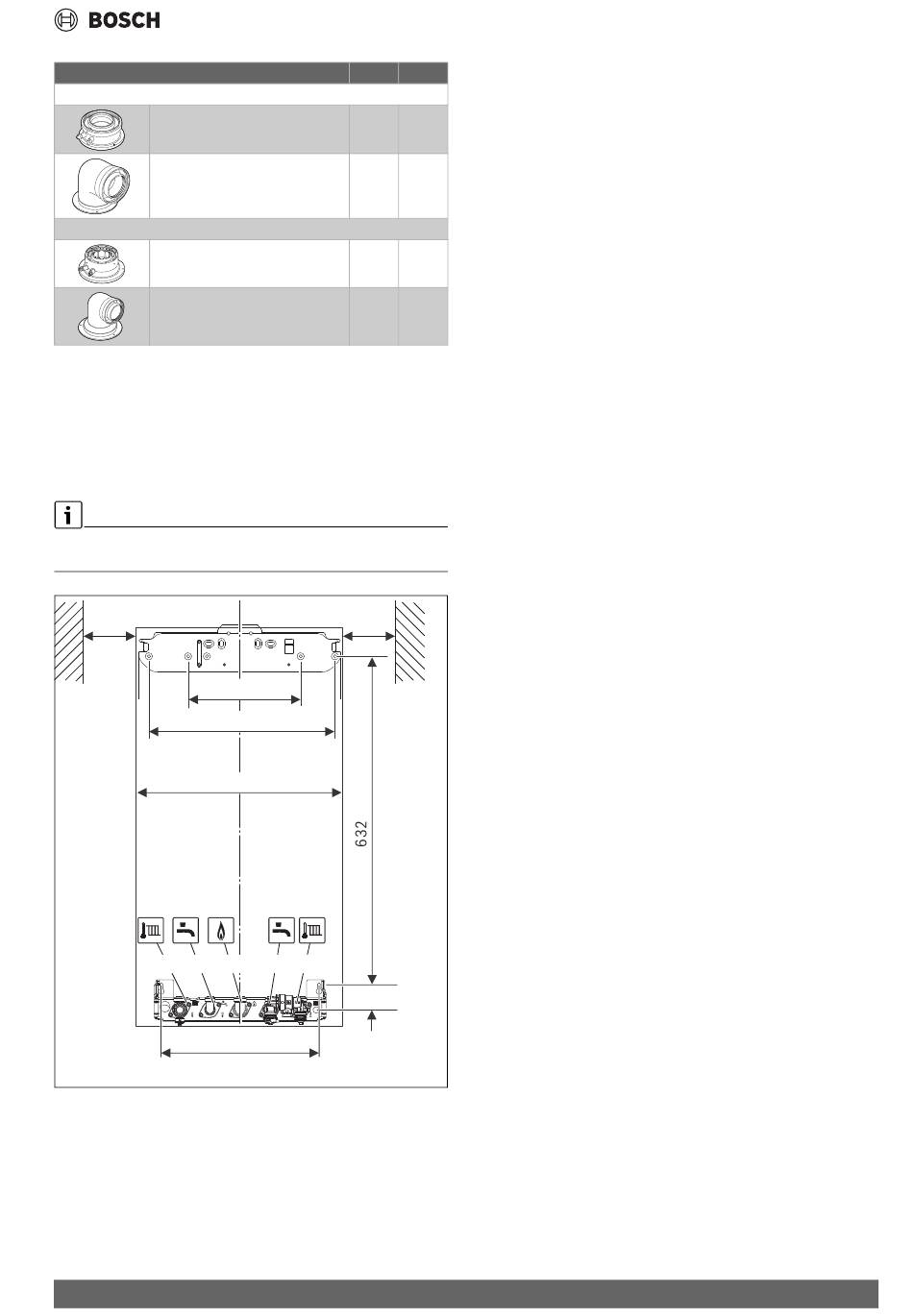

Table 3 Clearance A and B depending on flue accessories
Calculate minimum height of the installation room
▶ Add dimension B of the accessory used from tab. 3 to height of top
edge of device.
▶ With horizontal flue accessories:
– Add 52 mm for each metre of horizontal length of the flue pipe.
– If necessary, add dimension of the fascia ([2] in Fig. 2).
With horizontal flue gas routing, the elbow must be kept in a free space
of 100 mm.
≥ 5*
R " R " R1 "
3 1
/ /
4 2
Fig. 3 Front view (mm)
* Recommended 100 mm
Condens 8300i W – 6721841531 (2022/10)
A / mm B /mm
115
85
≥ 5*
260
397
440
R " R "
1 3
/ /
2 4
55
340
0010041296-002
≥ 500
185
≥ 500
135
Product Information
7
