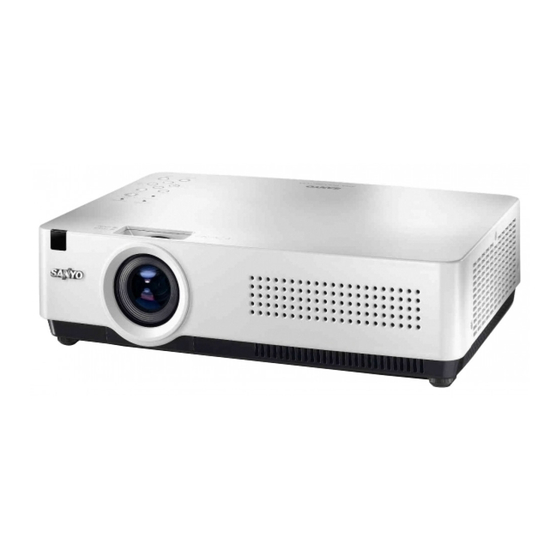

3000 ansi lumen, xga
Hide thumbs Also See for PLC-XU3001:
Table of Contents

Advertisement

Quick Links

Download this manual
Multimedia Projector
Network Supported
PLC-XU3001
MODEL
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PLC-XU3001

Summary of Contents for Sanyo PLC-XU3001

  • Page 1 Multimedia Projector Network Supported PLC-XU3001 MODEL Owner’s Manual...

  • Page 2: Features And Design

    Features and Design Compact Design Simple Computer System Setting Useful Functions for Presentations Lamp Control Direct Off Function Logo Function Multilanguage Menu Display Note: Security Function Helpful Maintenance Functions LAN Network Function Auto Setup Function Colorboard Function Power Management Closed Caption...

  • Page 3: Table Of Contents

    Table of Contents Features and Design ....2 Table of Contents ..... .3 To the Owner.

  • Page 4: To The Owner

    To the Owner CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. FOR EU USERS Safety Precaution WARNING: THIS APPARATUS MUST BE EARTHED.

  • Page 5: Safety Instructions

    Safety Instructions NOTE FOR CUSTOMERS IN THE US...
  • Page 6 Safety Instructions Air Circulation CAUTION Installing the Projector in Proper Position 20° 20° 30° 30° Moving the Projector CAUTION CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR...

  • Page 7: Compliance

    Compliance Federal Communications Commission Notice AC Power Cord for the United States and Canada: AC Power Cord for the United Kingdom: WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET. WARNING: THIS APPARATUS MUST BE EARTHED. THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

  • Page 8: Part Names And Functions

    Part Names and Functions Front ① ② ③ ④ Back ⑧ ⑦ ⑥ Bottom ⑭ ⑮ ① Infrared Remote Receiver ② Zoom Ring ③ Focus Ring ④ Projection Lens CAUTION ⑤ Lens Cap CAUTION ⑤ ⑨ ⑥ Speaker ⑨ ⑩ ⑪...

  • Page 9: Rear Terminal

    Rear Terminal ① ① CONTROL PORT ② COMPUTER IN 1 / COMPONENT IN ③ MONITOR OUT ④ COMPUTER IN 2 / DVI-I ⑤ LAN Connection Terminal ⑥ S-VIDEO IN ② ③ ⑨ ⑧ ⑦ ⑩ ⑦ AUDIO OUT (VARIABLE) ⑧ ⑧...

  • Page 10: Top Control

    Part Names and Functions Top Control ① SELECT button ② POINT (VOLUME –/+) buttons ③ INPUT button ④ ON/STAND–BY button ⑤ POWER indicator ⑥ MENU button ⑨ ⑤ ⑧ ④ ⑦ ③ ② ① ⑥ ⑦ AUTO SETUP button ⑧ WARNING indicator ⑨...

  • Page 11: Remote Control

    Remote Control ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ① ON/STAND-BY button ② AUTO SET button ③ COMPUTER 1/2 buttons ④ VIDEO button ① ⑤ S-VIDEO button ⑥ Point ⑳ ⑲ ⑦ SCREEN button ⑧ MENU button ⑱...
  • Page 12 Part Names and Functions Remote Control Battery Installation Remote Control Operating Range Remote Control Code Code 1 Two AAA size batteries Code 1 Code MENU button IMAGE button...

  • Page 13: Installation

    Installation Positioning the Projector Note: 11.6' (3.5 m) 4.6' (1.4 m) Screen Size 40" (W x H) mm 4 : 3 aspect ratio 813 x 610 Zoom (max) 4.6' (1.4 m) Zoom (min) 5.5' (1.7 m) Adjustable Feet 41.8' (12.7 m) 34.8' (10.6 m) 23.2' (7.1 m) 17.4' (5.3 m)
  • Page 14 Installation Connecting to a Computer Cables used for connection Note: RGB(PC digital)
  • Page 15 Installation Connecting to Video Equipment Cables used for connection Note:...
  • Page 16 Installation Connecting to Component Video and RGB (Scart) Equipment Cables used for connection Note:...

  • Page 17: Connecting The Ac Power Cord

    Installation Connecting the AC Power Cord CAUTION Note NOTE ON THE POWER CORD Projector side AC outlet side For Continental Europe For the U.K. For the U.S.A. and Canada (200 - 240 V AC) (200 - 240 V AC) (120 V AC)

  • Page 18: Basic Operation

    Basic Operation Turning On the Projector Note: Countdown off Selected Input Source and Lamp Control Video Note: Video Selection Project Video Project Computer Cancel Guidance for Video Input PC Selection Project Video Project Computer Project Computer Cancel Guidance for PC Input...
  • Page 19 Basic Operation Enter a PIN code PIN Code Input Dialog Box PIN code What is PIN code? Note: CAUTION ON HANDLING PIN CODE...
  • Page 20 Basic Operation Turning Off the Projector Power off? Power off? Direct Off Function Note: Note:...

  • Page 21: How To Operate The On-Screen Menu

    How to Operate the On-Screen Menu Basic Operation Top Control POINT buttons (arrowhead) SELECT button MENU button Remote Control POINT buttons (arrowhead) SELECT button MENU button On-Screen Menu Point or SELECT button...

  • Page 22: Menu Bar

    Basic Operation Menu Bar ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① Input ② PC adjust Auto PC adj. Fine sync Total dots Horizontal Vertical Clamp Display area-H ③ Image select Colorboard image 1 - 4 Image 1- 4 ④...

  • Page 23: Zoom And Focus Adjustment

    Zoom and Focus Adjustment Auto Setup Function Notes: Fine sync Total dots Horizontal Keystone Correction Top Control Remote Control Vertical Basic Operation AUTO SETUP button POINT buttons AUTO SET button POINT buttons KEYSTONE button...

  • Page 24: Sound Adjustment

    Basic Operation Sound Adjustment Direct Operation Volume Mute Menu Operation Volume Mute Top Control Remote Control Sound Volume Dialog Box Sound Menu VOLUME+/- buttons VOLUME+ button MUTE button VOLUME- button...

  • Page 25: Remote Control Operation

    Remote Control Operation COMPUTER 1/2, VIDEO, S-VIDEO and COMPONENT buttons FREEZE button Fig.1 INFO. button V-sync freq. Screen Language Lamp status Lamp counter Power management Keylock PIN code lock Remote control D.ZOOM buttons LAMP button Remote Control COMPUTER 1/2 buttons VIDEO button FREEZE...
  • Page 26 Basic Operation NO SHOW button P-TIMER button 00:00 IMAGE button SCREEN button No show P-timer SCREEN button P-TIMER button NO SHOW button IMAGE button Note:...

  • Page 27: Computer Input

    Computer Input Input Source Selection (RGB: Computer 1/Computer 2 (Analog)) Direct Operation Computer 1 (RGB) Remote Control COMPUTER 1 button Computer 1 (RGB) Computer 1 (Scart) COMPUTER 2 button Computer 2 (PC digital) Computer 2 (AV HDCP) Computer 2 (Analog) Menu Operation Computer 1 Note:...
  • Page 28 Computer Input Input Source Selection (RGB (PC digital), RGB (AV HDCP)) Direct Operation Computer 2 (PC digital) Remote Control COMPUTER 2 button Computer 2 (PC digital) Computer 2 (AV HDCP) Computer 2 (Analog) Menu Operation RGB(AV HDCP) Note: Computer 2 (AV HDCP) Top Control Input Menu Input...

  • Page 29: Computer System Selection

    Computer System Selection Auto ----- Mode 1 Mode 1–5 SVGA 1 Selecting Computer System Manually PC System Menu PC System Menu Input System Computer Input RGB(PC digital) Mode (1–5) RGB(Computer 1)

  • Page 30: Auto Pc Adjustment

    Computer Input Auto PC Adjustment Menu Operation Auto PC adj. To store adjustment parameters Note: Fine sync Total dots Horizontal 575i 480p 575p 720p 1035i Fine sync Total dots Horizontal PC adjust Menu PC adjust Auto PC adj. Mode (1–5) Vertical 480i 1080i...

  • Page 31: Manual Pc Adjustment

    Computer Input Manual PC Adjustment PC adjust Menu PC adjust Fine sync Total dots Horizontal Vertical Clamp Display area H Display area V...
  • Page 32 Computer Input Reset Mode free Store Note: Display area (H/V) Reset Mode free Store 480i 575i 480p 575p 720p 1035i Computer 2(PC digital) PC adjust Mode free Total dots Horizontal Vertical Display area H Display area V Store Store 1080i Computer 2(AV HDCP) store?

  • Page 33: Image Mode Selection

    Image Mode Selection Direct Operation Real Blackboard (Green) Colorboard Image 1 Image 2 Image 3 Image 4 Menu Operation Dynamic Standard Real Blackboard (Green) Colorboard Image 1–4 Remote Control Dynamic Standard IMAGE button Image select Image select Menu Computer Input IMAGE button Dynamic Standard...
  • Page 34 Computer Input Image Adjustment Image Adjust Menu Image adjust Contrast Brightness Color temp. White balance (Red) White balance (Green) White balance (Blue) Sharpness Gamma Note: Red Green Blue Color temp. User Reset Blackboard (Green) Colorboard Reset Color temp. Blackboard Colorboard...

  • Page 35: Screen Size Adjustment

    Computer Input Store Store Image 1 Image (1–4) Screen Size Adjustment Screen Menu Screen Normal True Wide Full Note: Normal Custom 720p 1035i 1080i True Full Digital zoom +/– 480i 575i 480p 575p...
  • Page 36 Computer Input Custom Custom Scale H/V H&V Position H/V Common Common Reset For zooming in and out the images Digital zoom + Digital zoom + D. zoom + Digital zoom – Digital zoom – D. zoom – Custom Scale V Scale H Custom Reset...

  • Page 37: Video Input

    Video Input Input Source Selection (Video, S-video) Direct Operation Video S-video Menu Operation S-video Video S-video Note: Input Video Video S-video Top Control INPUT button Computer 1 ( RGB) /(Component) / (Scart) Computer 2 (PC digital) / (AV HDCP) / (Analog) Video S-video...
  • Page 38 Video Input Input Source Selection (Component, RGB Scart 21-pin) Direct Operation Computer 1 (Component) Remote Control COMPUTER 1 button COMPONENT button Computer 1 (Component) Menu Operation RGB(Scart) Component RGB (Scart) Note: Computer 1 (Scart) Top Control Computer 1 (RGB) Computer 1 (Scart) Input Computer 1 Component...

  • Page 39: Video System Selection

    Video System Selection Computer 1(Component) Video or S-video Auto PAL-M PAL-N PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N SECAM NTSC NTSC 4.43 PAL-M Component Auto COMPONENT VIDEO SIGNAL FORMAT 575i 480p 575p 720p 1035i Note: RGB (Scart) AV System Menu (Video or S-video) Input Video S-video System PAL-N AV System Menu (Component)
  • Page 40 Video Input Image Mode Selection Direct Operation Cinema Blackboard (Green) Colorboard Image 1 Image 2 Image 3 Image 4 Menu Operation Dynamic Standard Cinema Blackboard (Green) Colorboard Image 1–4 Remote Control Dynamic Standard IMAGE button Image select Image select Menu IMAGE button Dynamic Standard...
  • Page 41 Image Adjustment adjust Contrast Brightness Color Tint Color temp. White balance (Red) White balance (Green) White balance (Blue) Note: White balance Red Green Blackboard(Green) Colorboard Blackboard Colorboard Image Adjust Menu Image Blue PAL SECAM PAL-M PAL-N Color temp. Video Input Reset Store Reset...
  • Page 42 Video Input Sharpness Gamma Noise reduction Progressive Store Menu Reset Reset Store Store Image (1–4) Note: Noise reduction Progressive 480p 575p 720p 1035i 1080i...
  • Page 43 Screen Size Adjustment Normal Wide Custom Custom Scale H/V H&V Scale V Position H/V Common Common Reset Screen Menu Screen Custom Scale H Custom Reset Note: Position H/V Wide 1035i Video Input Normal Scale H/V 720p 1080i...

  • Page 44: Setting

    Setting Setting Language English German French Italian Spanish Portuguese Dutch Swedish Finnish Polish Hungarian Romanian Russian Chinese Korean Japanese Menu position Menu position Setting Menu Setting Language Thai Store Blue Closed caption Shut down Direct on Standby mode Network Language English Store Blue...

  • Page 45: Auto Setup

    Auto setup Input search Auto PC adj. Auto Keystone Auto Manual Note: Input search Input search Input search Input search Input search Auto PC adj. Auto setup Note: Input search Auto Keystone Closed caption Direct on Standby mode Auto Keystone Ceiling Keystone Fine sync Total dots Horizontal...
  • Page 46 Setting Keystone Store Reset Keystone Background Blue User Black Display Countdown Off Power off? No signal Please wait ... P-Timer Keystone Closed caption Direct on Standby mode Blue Shut down Network...
  • Page 47 Logo (Logo and Logo PIN code lock settings) Logo select capture Logo PIN code lock code change Note: Logo select Capture Logo select Default User Logo select Logo PIN Setting Store Blue Closed caption Shut down Direct on Standby mode Network...
  • Page 48 Setting Capture Capture User Note: Logo PIN code lock Logo PIN code lock Logo PIN code lock Logo PIN code Standard On capture User Default Capture Logo PIN code lock...
  • Page 49 Enter a Logo PIN code code Change the Logo PIN code lock setting Logo PIN code change code change Logo PIN code CAUTION: WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE LOGO PIN CODE NO.
  • Page 50 Setting Ceiling Rear Closed Caption Off CC1 CC2 CC3 Color White Note: Auto NTSC NTSC Auto Ceiling Rear Closed Caption Closed caption Direct on Standby mode Off CC1 CC2 CC3 Store Blue more... Shut down Network...

  • Page 51: Power Management

    Power management Ready Shut down Timer signal Note: Shut down: 30 min Power management Closed caption Closed caption Direct on Standby mode Setting Store Blue Shut down Network...
  • Page 52 Setting Direct on Note: Standby mode Network Note: Network...
  • Page 53 Lamp control Lamp control Normal Lamp life control Mode 1 Mode 2 Note: Mode 2 Lamp replacement icon No show Remote control Code 1 (Code 2 Code 2 To change the code for the projector: Code 1 Code 2 To change the code for the remote control: Note: Lamp life control Freeze...
  • Page 54 Setting Security (Key lock and PIN code lock) Key lock Key lock PIN code lock Key lock PIN code lock...
  • Page 55 Enter a PIN code Change the PIN code lock setting Change the PIN code change CAUTION: WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 77, AND KEEP IT SECURELY.
  • Page 56 Setting Fan control On 1 On 2 Note: Filter counter Reset Fig.1 Note: Note: No show On 1 Filter counter 100H 200H 300H Freeze Filter counter reset Timer...
  • Page 57 Setting Warning log Note: Factory default User Factory default logo PIN code lock Logo PIN code lock Lamp counter Filter counter...

  • Page 58: Information

    Information Input Source Information Display Direct Operation Menu Operation Input H-sync freq. - - - - - KHz V-sync freq. - - - - - Hz Screen Language Lamp status Lamp counter Power management Off Ready Shut down Timer Key lock PIN code lock On 1 On 2...

  • Page 59: Maintenance And Cleaning

    Maintenance and Cleaning WARNING indicator The projector is shut down and the WARNING indicator is blinking red. Note: Then check the matters below: The projector is shut down and the WARNING indicator lights red. CAUTION Top Control Top Control...

  • Page 60: Cleaning The Filters

    Maintenance and Cleaning Cleaning the Filters CAUTION RECOMMENDATION We recommend avoiding dusty/smoky environments when you operate the projector. Usage in these environments may cause poor image quality. Resetting the Filter Counter Setting Filter counter Filter counter reset Filter counter Reset? Note: Filter counter Reset?
  • Page 61 Maintenance and Cleaning Attaching the Lens Cap Cleaning the Projection Lens Cleaning the Projector Cabinet CAUTION...
  • Page 62 Maintenance and Cleaning Lamp Replacement Note: No show CAUTION CAUTION Top Control LAMP REPLACE indicator Freeze CAUTION...

  • Page 63: Lamp Handling Precautions

    ORDER REPLACEMENT LAMP Model No. of your projector Replacement Lamp Type No. LAMP HANDLING PRECAUTIONS IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN. Maintenance and Cleaning : PLC-XU3001 : POA-LMP131...

  • Page 64: Appendix

    Appendix Troubleshooting Problem: No power The initial display is not shown. The initial display is not same as the default set. Input signal switches automatically. (or does not switch automatically) When the projector is on and you press the input button, an icon other than the Lamp mode icon appears An icon other than Input mode or...
  • Page 65 Appendix No image No Show No sound The color is strange. Blackboard Some displays are not seen during the operation. Auto PC adjustment function does not work. 480p 575p 720p 480i 575i 1035i 1080i The setting does not remain Store after turning off power.
  • Page 66 Appendix The image is distorted or runs off. PC adjust Screen PIN code dialog box appears at start-up. The Remote Control does not work. Indicator blinks or lights. The exclamation mark appears on the screen. Top control does not work. Key lock Security Unable to unlock the Logo PIN...
  • Page 67 Appendix WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet.

  • Page 68: Menu Tree

    Appendix Menu Tree Computer Input/Video Input Input Sound Sound Computer Input System PC adjust Image select Image Adjust Screen...
  • Page 69 Video Input System System Image select Image Adjust Screen Setting Setting Information Appendix...
  • Page 70 Appendix Indicators and Projector Condition Indicators Projector Condition red/green yellow...

  • Page 71: Compatible Computer Specifications

    Appendix Compatible Computer Specifications ON-SCREEN H-Freq. V-Freq. ON-SCREEN H-Freq. V-Freq. RESOLUTION RESOLUTION DISPLAY (KHz) (Hz) DISPLAY (KHz) (Hz)
  • Page 72 Appendix ON-SCREEN H-Freq. V-Freq. ON-SCREEN H-Freq. V-Freq. RESOLUTION RESOLUTION DISPLAY (KHz) (Hz) DISPLAY (KHz) (Hz) Note:...

  • Page 73: Technical Specifications

    Appendix Technical Specifications Mechanical Information Panel Resolution Signal Compatibility Optical Information Interface Audio Power Operating Environment Remote Control...

  • Page 74: Optional Parts

    Appendix Accessories Optional Parts COMPONENT~VGA Cable SCART~VGA Cable VGA-Cable (10 m)
  • Page 75 Appendix PJ Link Notice...

  • Page 76: Configurations Of Terminals

    Appendix Configurations of Terminals COMPUTER IN 1 /COMPONENT IN /MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) COMPUTER IN 2 / DVI-I TERMINAL (DIGITAL/ANALOG) C1 C2 CONTROL PORT CONNECTOR (D-sub 9 pin) LAN TERMINAL 8 7 6 5 4 3 2 1...
  • Page 77 Appendix PIN Code Number Memo PIN Code Lock No. Logo PIN Code Lock No.
  • Page 78 Appendix Dimensions 75.0 (2.95) 214.0 (8.43) 80.5 (3.17) 101.0 (3.98) 55.0 (2.17) 70.4 (2.77) 326.0 (12.83) 89.2 (3.51) 143.3 (5.64) 58.5 (2.30) 69.5 (2.74) 232.5 (9.15) 197.5 (7.78) 219.4 (8.64) 81.6 (3.21) 124.8 (4.91) 123.0 (4.84) 82.5 (3.25) 75.0 (2.95) 214.0 (8.43) º...
  • Page 79 SANYO Electric Co., Ltd.
  • Page 80 Owner’s Manual Network Set-up and Operation Wired Setting Projector Set-up and Operation This is the manual for the Network function. Read this manual thoroughly to operate the Network function. First, read the owner's manual of the projector to understand the basic operation of the projector and the safety instructions.

  • Page 81: Federal Communications Commission Notice

    If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Numbers : PLC-XU3001 Trade Name : Sanyo Responsible party : SANYO NORTH AMERICA CORPORATION Address : 21605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-7322...
  • Page 82 Safety instructions CAUTION IN USING THE PROJECTOR VIA NETWORKS When you find a problem with the projector, remove the power cable immediately and inspect the unit. Using the projector with failure may cause fire or other accidents. If you remotely use the projector via networks, carry out a safety check regularly and take particular care to its environment.
  • Page 83 Table of contents Compliance...2 Safety instructions...3 Table of contents...4 Chapter 1 Preparation ...5 Features...6 Required operating environment for computers ...7 Network specifications of the projector...7 Flow of installation...9 Chapter 2 Setup Procedures... 11 Connecting to the LAN line... 12 Network configuration... 12 Network PIN code ...

  • Page 84: Chapter 1 Preparation

    Chapter 1 Preparation Describes features and operating environment of this projector.

  • Page 85: Features

    Chapter 1 Preparation Features Web Management function ( p.31) With this func tion, you can monitor projector functions such as power status, lamp s t at us , inp u t m o d e, si gna l condition, lamp-use time, etc. through the network by using the web browser installed on your computer.

  • Page 86: Required Operating Environment For Computers

    Required operating environment for computers When operating the projector via networks, computers should meet the operating envi- ronment below. Windows XP (32bit version), Operating System Windows Vista (32bit version), Windows 7 (32bit version) Mac OS X v 10.4 or 10.5 Windows: Pentium III 900MHz or more Recommended CPU Macintosh : 800 MHz PowerPC G4 or faster, or 1.8 GHz Intel Core...
  • Page 87 Chapter 1 Preparation Cabling Between the Projector and a Hub or computer Use an appropriate cable when connecting the projector and a hub or computer. Connection Ethernet cable type Projector - Hub STP straight-through category 5 * Projector - Computer STP crossover category 5* *1 There may be other limitations depending on your network environment or LAN specification.

  • Page 88: Flow Of Installation

    Flow of installation To use the projector via the networks, follow the setup procedures below. STEP 1 Connect the LAN and set the configuration. Decide depending on the LAN environment. “2. Setup Procedures” (pp.11–16). Detailed LAN configurations need to be done with a browser later. First, complete the Wired LAN connection between computers and projec- tors, then start browser configurations.
  • Page 89 Chapter 1 Preparation...

  • Page 90: Chapter 2 Setup Procedures

    Chapter 2 Setup Procedures Describes how to configure the network.

  • Page 91: Connecting To The Lan Line

    Chapter 2 Setup Procedures Setting procedures and contents differ depending on the LAN installation location. When installing, consult your system administrator to set up the LAN appropriately. Connecting to the LAN line Connect the LAN cable to the LAN connection terminal of the projector. LAN Connection Terminal LAN Cable...
  • Page 92 3. Select "Network setting" in the Network menu and press SELECT button, and then the LAN setting screen will appear and selected LAN settings will be displayed. Adjust each item to the setting environment. Consult your system administrator about the detailed settings.

  • Page 93: Network Pin Code

    Chapter 2 Setup Procedures Network PIN code The Network PIN code is to restrict the access to the projector through the network. After setting the Network PIN code, you need to enter it to operate the projector via the networks. 1.

  • Page 94: Network Factory Default

    Network factory default Network factory default 1. Select “Network factory default” in the Network menu and press SELECT button. 2. A confirmation box appears and select "Yes" and then press SELECT button. 3. Another confirmation box appears and select "Yes" and then press SELECT button. 4.

  • Page 95: Wired Lan Factory Default Settings

    Chapter 2 Setup Procedures Wired LAN factory default settings Parameter DHCP IP ADDRESS 169.254.100.100 SUBNET MASK GATEWAY ADDRESS 255.255.255.255 DNS ADDRESS 255.255.255.255 SELECTED LAN LAN 1 LAN 2 192.168.100.100 255.255.0.0 255.255.255.0 255.255.255.255 255.255.255.255 LAN 3 192.168.100.100 255.255.255.0 255.255.255.255 255.255.255.255...

  • Page 96: Chapter 3 Basic Setting And Operation

    Chapter 3 Basic Setting and Operation Describes basic operations and settings for controlling the projec- tor by using the web browser. It is required that computer and projector is connected to the network and the network address is properly configured.

  • Page 97: Login The Setting Page Of The Projector

    Chapter 3 Basic Setting and Operation Login the setting page of the projector [1] Enter the IP address Launch the web browser installed in your computer, enter the IP address into the "Address" on the browser and then press "Enter" key. Enter the address that you configured in item "Network configuration"...

  • Page 98: Display Of Main Setting Page

    [3] Display of main setting page The following main setting page will be displayed according to your display mode selection. Perform various kinds of settings through this page. Click on the menus to dis- play the control and setting pages. Main setting page in the display Setting page Main menu...

  • Page 99: How To Use The Setting Page

    Chapter 3 Basic Setting and Operation How to use the setting page To control and set up the projector, use the setting menus on the web browser. Describes the basic operation and procedures commonly used on this manual. Example of the setting page The setting menu appears when clicking the sub menu tab.
  • Page 100 How to use the setting page Radio button setting Select an item by selecting a radio button. Check box setting Select items by ticking on check boxes.

  • Page 101: Initial Setting

    Chapter 3 Basic Setting and Operation Initial setting After installing the projector, perform the following basic initial setting. Click Initial setting on the main menu to display the initial setting page. Item Description Language...Switches display language on the setting page. (Japanese, English) Model name ...Indicates the model name of the projector.

  • Page 102: Network Pin Code Setting

    Network PIN code setting This is to set the Network PIN code to restrict the access from an unauthorized person through the network. Enter a 4-digit number as the Network PIN code onto the text box and click Set button. The projector begins restarting and it takes about 10 seconds.

  • Page 103: Network Configuration

    Chapter 3 Basic Setting and Operation Network configuration Click Network on the main menu. The following setting page is displayed. The IP Address, Subnet Mask, Default Gateway, DNS (Domain Name Server) and projector name are set up on this menu. The IP address and Subnet Mask have been configured already in chapter "Installation".

  • Page 104: E-Mail Setting

    E-mail setting This projector has an E-mail function which can send an alert message to users or an administrator if it detects an abnormality on the projector or run out of the life span of the lamp. So must be set this E-mail setting. Click E-mail setting on the main menu and follow the below steps.
  • Page 105 Chapter 3 Basic Setting and Operation Registering and deleting E-mail addresses Click "Add address" and type the e-mail address onto the text box and click Set button. To check the registered addresses, click Check/Delete sub menu tab. The addresses are listed as the figure on the right.

  • Page 106: Examples: Type And Contents Of Alert Mail

    Examples: Type and contents of alert mail When the projector has an abnormality, the following alert messages are sent to the regis- tered E-mail address according to your selected condition. Administrator or user can take an efficient action quickly by receiving this message. This is very useful to maintain and service the projector.
  • Page 107 Chapter 3 Basic Setting and Operation When PJ lamp replacement time is reached: TITLE: Message from projector Projector Model Name: model name TCP/IP: 192.168.1.201 Projector Name: Proj05 It sends you following message. *The projector lamp has reached replacement time. Lamp ON 2000 h Replace it with a new lamp immediately and reset the lamp counter.

  • Page 108: Snmp Setting

    SNMP setting This projector provides a SNMP (Simple Network Management Protocol) agent function. The SNMP consists of a manager and agents. The group which communicates information each other with SNMP is called "Community". There are two access modes in a community, Refer (read only) and Set (read- write).
  • Page 109 Chapter 3 Basic Setting and Operation Trap check/delete Check and delete the trap address Checking the registered trap address and deleting the address. To delete the address, tick check box in front of the IP address and click Delete button. Up to 10 trap addresses can be registered.

  • Page 110: Chapter 4 Controlling The Projector

    Chapter 4 Controlling the Projector Describes controlling and setting of the projector by using the web browser.

  • Page 111: Power Control And Status Check

    Chapter 4 Controlling the Projector Power control and status check Click Power & Status on the main menu. The control page will be dis- played. By clicking ON or Standby button on the page, the power of the projector can be con- trolled.
  • Page 112 About projector condition Status Description Normal... Projector is operating normally. Power management in operation... Power management is operating. Lamp failure... Lamp failure is occurring. Abnormal Temperature... The temperature of the projector became too high. Standby after Abnormal Temp... Projector detects abnormal temp. and sets into standby mode. Power failure ...

  • Page 113: Control

    Chapter 4 Controlling the Projector Control Click Control on the main menu. The setting method differs depending on the contents of the page. Click on the page number to change pages and select desired setting items. Please see the user's manual of the projector to have the further information of each control item.

  • Page 114: System

    System This function is to select the system of signal input to the projector. The available system mode are listed on the pull-down menu but- ton according to the input signal. Select a system and then click Set button. Available selection at the RGB(PC analog) input Item Description XGA1 ...It automatically switches to the proper computer system of the input signal.

  • Page 115: Sound

    Chapter 4 Controlling the Projector Sound This function is to adjust the sound of the projector. The values in the text box represent the current control value or status. Item Description Volume ...Adjusts the sound volume from the speaker. (0 ~ 63) Mute...Suppresses the sound.

  • Page 116: Image Adjustment

    Image adjustment This function is to adjust the projected picture image and save the image mode. To store the adjusted value, click Store button, and to load the adjusted value, click Load button. Item Description Contrast ... Adjusts picture con- trast (0~ 63) Brightness ...

  • Page 117: Pc Adjustment

    Chapter 4 Controlling the Projector PC adjustment Click PC Adj. on the main menu. This function is to adjust the signal from the computer connected to the projector to obtain the proper picture image on the screen. Item Description Current mode...Displays a current mode like VGA, SVGA, XGA. SXGA, UXGA, WXGA, etc. or Mode1 - Mode5 which are the customized mode created by using the "Mode Store"...

  • Page 118: Setting Up The Projector

    Setting up the projector Click Setting on the main menu. This function is to set up the projector. Select the sub menu [Screen setting] or [Setting] and then set up each set- ting. Screen setting This function is to adjust the screen mode of the projector.

  • Page 119: Setting 1

    Chapter 4 Controlling the Projector Setting 1 Item Description Language...Sets the language display of projector's on-screen display menu. Auto setup ...Executes the Auto PC adj., Input Search and Auto keystone function below according to the each setting after click- Start button.

  • Page 120: Setting 3

    Setting 3 Item Description Key lock...Sets the prohibition of controls either Projector or Remote control. (OFF, Projector keys, Remote control) Fan control Sets the fan control speed. Normal mode Highland mode 1 Highland mode 2 Filter counter...Displays the filter counter. Reset the time after filter clean-up.

  • Page 121: Information

    Chapter 4 Controlling the Projector Information This page is to display the basic information of the projector status. Click Information on the main menu. Items Description Input Displays selected input and source. System Displays selected signal system. Signal Input signal status (Yes, No) Screen Displays screen mode.

  • Page 122: Chapter 5 Appendix

    Chapter 5 Appendix Connection examples Use of telnet Web browser setting Q & A...

  • Page 123: Examples Of Connection

    Chapter 5 Appendix Examples of connection Peer-To-Peer connection Connecting the projector (PJ01) to the control computer (PC05) directly. * STP cross cable Computer Name: PC05 IP Address : 192.168.0.5 Subnet Mask : 255.255.255.0 Default Gateway : Connecting the projector (PJ01) to the control computer (PC05) via the hub. To another network Computer Name: PC05 IP Address...
  • Page 124 The gateway (Router) installed in the network Connecting the projector (PJ01) to the control computer (PC05) via the gateway. Entrance hall Projector Name: PJ01 IP Address : 192.168.200.15 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.200.1 : 192.168.201.1 Network Group: 192.168.200.x To another network Office Computer Name: PC05...

  • Page 125: Use Of Telnet

    Chapter 5 Appendix Use of telnet You can control the projector by using the telnet application Normally, the telnet application is available on your computer. * The telnet 10000 port is used to control the projector. Control (For example, in case of using the telnet application of Windows XP Professional.) 1.
  • Page 126 3. When communication is established correctly, the word "PASSWORD:" appears on the window. Type the login password (Network PIN code "Enter" key on the keyboard. If you do not set up the Network PIN code, just press "Enter" key. When the word "Hello" is replied, login has been succeeded. * The password "1234"...

  • Page 127: Web Browser Setting

    Chapter 5 Appendix Web browser setting This projector is designed to be set up and controlled from an Internet web browser. Depending on the preference settings of the web browser, some control functions may not be available. Please make sure that the following functions are set up properly in the web browser.

  • Page 128: Examples: Os/Browsers

    Web browser setting Examples: OS/Browsers Windows XP Professional Internet Explorer v.6.0 ActiveScript setting Select Internet Options from Tools menu on the web browser and then select Security tab and click Customize Level… button. On the security setting window, scroll down and find the Scripting item, make sure that "Enable"...
  • Page 129 Chapter 5 Appendix Proxy setting Select Internet Options from Tools menu on the web browser and then select Connection tab and click LAN Settings button. Properly set up your web browser's the proxy server settings according to the local area network environment to which the pro- jector is connected.
  • Page 130 Netscape Navigator v.7.1 JavaScript Setting Select Preference from Edit menu on the web browser a n d t h e n s e l e c t t h e i t e m Advanced/Scripts & Plugins in the Category column. Make sure that the Enable JavaScript for Navigator is checked.
  • Page 131 Chapter 5 Appendix MAC OS X v 10.4 Safari v.3.2.1 JavaScript enable setting Selec t Preferences... from Safari on the web browser and then select S e c u r i t y t a b a n d c h e c k E n a b l e JavaScript.

  • Page 132: Q&A

    Q&A Installation/Access Why doesn’t the setting page appear in my web browser? Following causes are possible. Please check them. 1. The projector does not connect to the network. Check LED indicators status ( - Check the connection of LAN cable if the LINK Lamp does not light green. - Check the network configuration of the projector if the ACT Lamp does not blink orange.
  • Page 133 Chapter 5 Appendix We use the DHCP/BOOTP server to assign the IP address. Is it possible to use the projector in this network environment? Possible. This projector supports the DHCP/BOOTP server. To use this projector in this network environment, set it up so that the DHCP/BOOTP server does not assign the IP address configured to this projector for another device on the network.
  • Page 134 Operation Why can't be turned on/off with web browser? Please make sure the settings of the projector are correct to use the projector. Please set the Standby mode of the projector's Setting menu to "Network". Refer to "4. Controlling the Projector" Why can't I change the controls in the setting page with web browser? Please make sure the projector is turned on.
  • Page 135 Chapter 5 Appendix Others What are the rules for IP address assignment? If the network is constructed with TCP/IP protocol, a unique IP address is required for each piece of network equipment. The following are basic rules of the assign- ment.
  • Page 136 Can I update the firmware of the projector. It is possible to update the firmware through the network. It is required to have a special tool for the updating. For further information please consult your local deal- er. The version number of the firmware is indicated on the lower part of the "Initial setting"...
  • Page 137 NETWORK OWNER'S MANUAL SO-KD5AF SANYO Electric Co., Ltd.

Table of Contents
