What's in the box?
The package includes the following items:

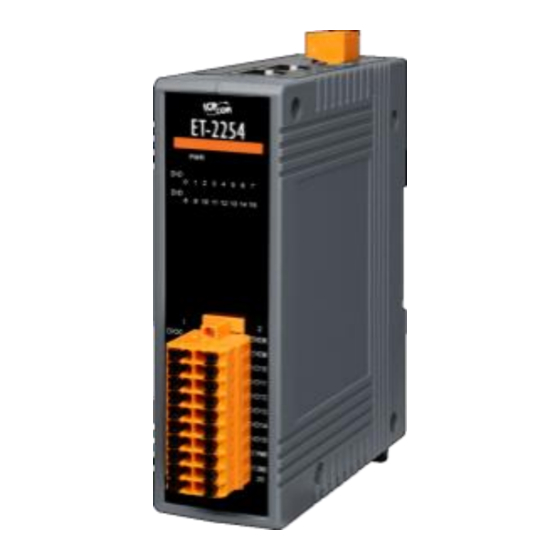

ET-2254/ET-2254P Module x 1
Related Information
ET-2200 Series Product Page:
Documentation & Firmware:
NS-205/MDR-20-24 Product Page (optional):
Technical support:
ET-2254/ET-2254P
service@icpdas.com
Quick Start
v1.2, May. 2018
Quick Start x1
(This Document)
P1
Advertisement
Related Manuals for ICP DAS USA ET-2254
Summary of Contents for ICP DAS USA ET-2254

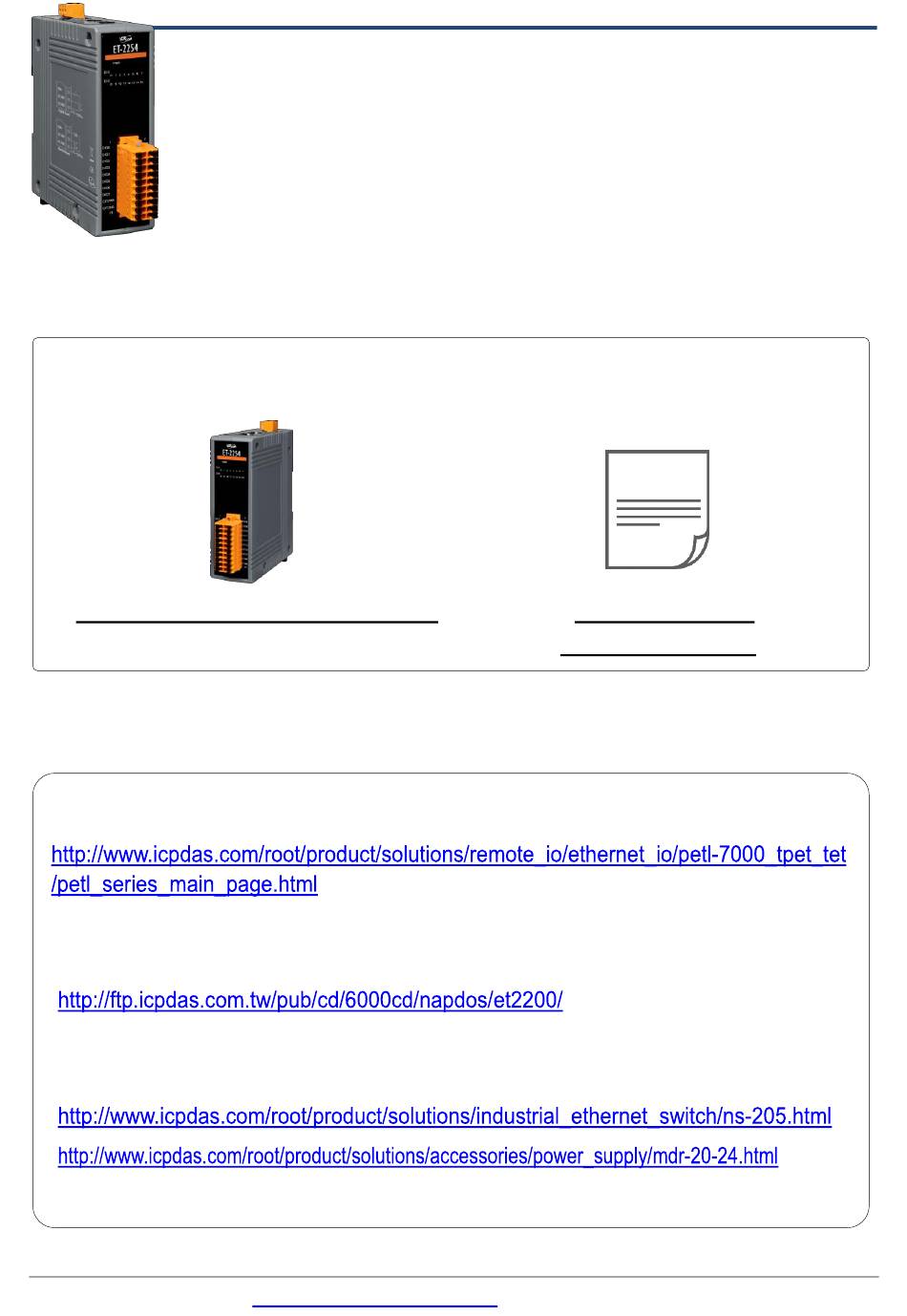

- Page 1 ET-2254/ET-2254P Quick Start v1.2, May. 2018 What’s in the box? The package includes the following items: ET-2254/ET-2254P Module x 1 Quick Start x1 (This Document) Related Information ET-2200 Series Product Page: Documentation & Firmware: NS-205/MDR-20-24 Product Page (optional): Technical support: service@icpdas.com...
- Page 2 Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 5 may not work. (Please contact with your system Administrator) Connect both the ET-2254(P) and your PC to the same sub network or the same Ethernet switch. Supply power (+10~+30 V ) to the ET-2254(P).
- Page 3 Pin Assignments & Wiring Note Pin Assignments: Wire Connections: Input Output Readback as 0 Readback as 1 Readback as 1 Type Type OFF State ON State Close to GND Drive DIOx EXT.GND Relay EXT.GND EXT.GND EXT.PWR EXT.PWR EXT.PWR Readback as 0 Contact Open...
- Page 4 Wiring the DI and DO for Self-test A tip for connecting the wire to the connector A tip for removing the wire from the connector 1) Connect the DIO0 pin (Pin01) to the DIO1 pin (Pin03). 2) Connect the External Power +24V to the EXT.PWR pin (Pin17). 3) Connect the External Power GND to the EXT.GND (Pin19).
-
Page 5: Modbus Address
The nDO parameters in the following Modbus Address Tables are as follows: Mode Universal Number of DO channels Number of DI channels Name (nDO) (nDI) Depend on your ET-2254(P) Depend on your configuration configuration (0xxxx) DO address: Bits Begin Access Points Description... -
Page 6: Configuring Network Settings
Configuring Network Settings 1) Run the eSearch Utility. The eSearch Utility is located at: http://ftp.icpdas.com/pub/cd/6000cd/napdos/software/esearch/ 2) Click the “Search Servers” to search your ET-2254(P). 3) Double-click your ET-2254(P) to configure the settings Factory Default Settings of ET-2254(P): IP Address 192.168.255.1... - Page 7 ET-2254(P) is working well with new configuration. 2) Click the name of ET-2254(P) to select it. 3) Click the “Web” button to log in to the web configuration pages. (Or enter the URL address of the ET-2254(P) in the address bar of the browser.) ...
- Page 8 In the “Force DI/DO Mode” section, select the “Static” from the drop down options and check the checkbox for “Ch0” to set Ch0 is DI Port then click the “Update Settings” button to save the revised settings to the ET-2254(P) module.
