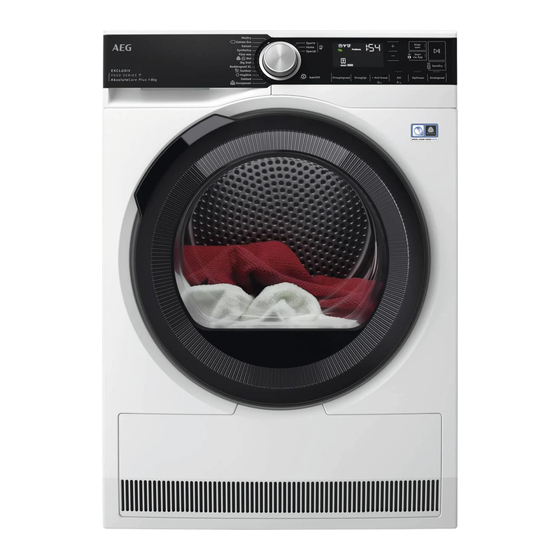

- Page 1 TR9MUNCHEN User Manual Tumble Dryer...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INFORMATION..................2 2. SAFETY INSTRUCTIONS..................5 3. PRODUCT DESCRIPTION...................8 4. CONTROL PANEL....................9 WI-FI - CONNECTIVITY SETUP..............10 6. PROGRAMMES....................13 7. OPTIONS......................17 8. BEFORE FIRST USE..................19 9. DAILY USE......................20 10. HINTS AND TIPS....................23 11. CARE AND CLEANING..................25 12. - Page 3 ENGLISH This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
- Page 4 your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory. Read it carefully before installation (refer to the Installation leaflet). The appliance can be installed as freestanding or • below a kitchen counter with correct space (refer to the Installation leaflet).
-
Page 5: Safety Instructions
ENGLISH Service Centre or similarly qualified persons to avoid an electrical hazard. Do not exceed the maximum load of 8,0 kg (refer to • the "Programme chart" chapter). Wipe away lint or packaging debris that has • accumulated around the appliance. Do not run the appliance without a filter. - Page 6 2.3 Use careful not to cause damage to the refrigerant circuit containing propane. • Always take care when moving the WARNING! appliance as it is heavy. Always use Risk of injury, electric shock, safety gloves and enclosed footwear. fire, burns or damage to the •...
- Page 7 ENGLISH separately: These lamps are intended to withstand extreme physical Warning: Risk of fire / Flammable conditions in household appliances, materials. The appliance contains such as temperature, vibration, flammable gas, propane (R290), a gas humidity, or are intended to signal with a high level of environmental information about the operational compatibility.
-
Page 8: Product Description
3. PRODUCT DESCRIPTION Water container Airflow slots Control panel Condenser lid Internal lighting Condenser cover Appliance door Adjustable feet Filter Rating plate and QR Code For ease of loading laundry or ease of installation the door is reversible (see the separate leaflet). -
Page 9: Control Panel
ENGLISH 4. CONTROL PANEL Programmes Start/Pauze button Programme dial SyncDry button Favourite programmes Options Display Auto Off function Aan/Uit button with Start via App button Klaar over button 4.1 Display Symbol on the display Symbol description cycle time indication... -
Page 10: Wi-Fi - Connectivity Setup
Symbol on the display Symbol description maximum load finish in selection (up to 24h) wireless connection remote control APP notification to check + Anti-kreuk option on child lock on laundry dryness: iron dry, cupboard dry, extra dry Droogtijd option on drain the water container indicator: clean the filter... - Page 11 Access Point is open for around 3 minutes. • Scan the QR code with the built-in 4. Configure the My AEG Care app on camera app to download the My AEG your smart device and follow the on...
- Page 12 5.6 Wi-Fi Always On but it is also possible to start a drying program remotely. The Wi-Fi Always On function can be activated only via My AEG Care app. Remote Start This feature keeps the appliance connected to the network even when the...
-
Page 13: Programmes
Connect the appliance to without notice. My AEG Care and you will be able to The App will give you a choose a drying programme that suits complete description of each your needs most. - Page 14 Programma's Load Properties / Fabric mark Recommended for generic delicate Fijne was 2,0 kg fabrics such as viscose, rayon, acryl‐ ic and their blends. Gently dries for machine and hand-washable wool‐ lens. Remove immediately the items when the pro‐ gramme is completed. 1,0 kg The wool drying cycle of this machine has been ap‐...
- Page 15 ENGLISH Programma's Load Properties / Fabric mark Dries and sanitizes your garments and other items maintaining the tem‐ perature above 60°C over time, re‐ moving 99.9% of bacteria and viru‐ 5,0 kg Hygiëne Note: This cycle should only be used for wet items.
- Page 16 Options Droogte‐ + Anti- Droogtijd Stil Opfrissen Programma's graad kreuk 3kg Snel Beddengoed XL Outdoor Hygiëne Dekbed Donsjassen 1) Aside from the programme, you can set one or more options at the same time. 2) Set by default 3) See chapter OPTIONS: Droogtijd on Wol programme Consumption data Energy consump‐...
-
Page 17: Options
ENGLISH Energy consump‐ Program Spun at / residual humidity Drying time tion 800 rpm / 50% 76 min 0,62 kWh 1) For partial loads, the cycle time is shorter and appliance uses less energy. 2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase the energy consumption. - Page 18 Once the washing programme has come to an end, the washing machine transfers the programme data via the home router Wi-Fi to the AEG Cloud, as well as to your tumble dryer. In order to use the SyncDry function, the AEG tumble...
-
Page 19: Before First Use
ENGLISH gives an acoustic error signal. Then previously selected programme is restored. When SyncDry programme 5. Touch Start/Pauze button to begin is set, user is still allowed to drying process. change options or select another program by rotating knob or using APP. In such cases SyncDry button LED will turn off to indicate that the program is not anymore... -
Page 20: Daily Use
Working pump and transferring condensation to the tank. Working fans. 9. DAILY USE 9.1 Preparing the laundry • Always set the programme suitable for the type of laundry. Very often the clothes after • Do not put light and dark colours washing cycle are kneaded together. - Page 21 ENGLISH Fabric label Description Laundry is suitable for tumble drying at higher temperatures. Laundry is suitable for tumble drying at low temperatures only. Laundry is not suitable for tumble drying. 9.2 To achieve best drying 9.4 Turning on the appliance results •...
- Page 22 9.6 Setting a programme You can activate the child lock option: • before you touch the Start/Pauze button - the appliance cannot start • after you touch the Start/Pauze button - programs and option selection is unavailable. Child lock option activation: Use the programme dial to set the programme.
-
Page 23: Hints And Tips
ENGLISH 9.12 Programme end After setting a drying programme, the icon lights up on the display Clean the filter and drain the if the programme supports it. water container after each Touching the Start/Pauze button, the drying cycle. (See chapter ProSense starts the laundry load CARE AND CLEANING.) detection:... - Page 24 • Clean the filter after each drying In case of Wi-Fi network cycle. connected machines a • Do not use fabric softener to wash ProSense bars animation is and then dry. In the tumble dryer performed for a few seconds laundry becomes soft automatically.
-
Page 25: Care And Cleaning
ENGLISH 1. Switch the appliance on by pressing working modes will be reset. It will also the Aan/Uit button. remove WiFi network credentials from 2. Press and hold the Droogtijd and the appliance memory and reset Droogtegraad buttons for some personalized program settings. - Page 26 display and you must empty the water container. To empty the water container: 1. Pull the water container out keeping it in a horizontal position. 2. Pull the plastic connection out and drain the water into a basin or equivalent receptacle. Throw the lint in the dustbin.
- Page 27 ENGLISH 2. Open the condenser cover. 6. Close the condenser lid. 7. Turn the lever until it clicks into position. 8. Put the filter back. 11.4 Cleaning the drum WARNING! Disconnect the appliance before you clean it. 3. Turn the lever to unlock the Use a standard neutral soap detergent to condenser lid.
-
Page 28: Troubleshooting
12. TROUBLESHOOTING WARNING! Refer to Safety chapters. 12.1 Error Codes The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre. WARNING! Deactivate the appliance before carrying out any check. - Page 29 ENGLISH 12.2 Troubleshooting Problem Possible cause Remedy The tumble dryer is not connected Connect it to the mains socket. to the mains supply. Check the fuse in the fuse box (do‐ mestic installation). The door is open. Close the door. The tumble dry‐...
- Page 30 Problem Possible cause Remedy There is no Defective drum lamp. Contact the service centre to re‐ drum light place the drum lamp. Unexpected du‐ The drying duration is calculated This is automated - the appliance ration time ap‐ according to load size and damp‐ is working correctly.
-
Page 31: Technical Data
Move the router closer to the appli‐ ance through ance. Equip your home network the My AEG with wireless range extender. Care application Do not use at the same time micro‐ does not work wave oven and remote control. -
Page 32: Product Information Sheet In Reference To E.u. Regulation 1369/2017
The information given in the chart above is compliant with the EU Commission regulation 392/2012 implementing directive 2009/125/EC. 14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017 Product Information Sheet Trade Mark Model TR9MUNCHEN PNC916099303 Rated capacity in kg... - Page 33 ENGLISH Air vented or condenser tumble dryer Condenser Energy efficiency class A+++ Energy consumption in kWh per year, based on 160 drying cy‐ 176,5 cles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
