Sealey VIKING SJBEX2000S Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
Ensure the beam is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts. Use
9
genuine parts only. The use of improper parts may be dangerous and will invalidate the warranty.
Inspect the beam before each use. DO NOT use the beam if it is damaged, altered, modified, in poor condition, leaking hydraulic fluid, or
9
unstable due to missing parts.
DO NOT alter or modify this beam, including the safety valve, in any way. DO NOT load the beam beyond its rated capacity. DO NOT
8
operate the beam if damaged.
DO NOT allow untrained persons to operate the beam.
8
DO NOT use the beam for purposes other than that for which it is intended.
8
Before installing and using the product, please carefully read and fully understand the contents of these instructions, and make sure that
9
every operator of the product has read and understood the contents, and put the instruction in a safe place for future reference.
The product can be used between -20°-50°C.
9
DO NOT use for the lifting of persons.
8
Use the beam only for its intended purpose.
9
Consult the vehicle manufacturer for the correct lifting locations.
9
Make sure the vehicle is in park and the handbrake is on before attempting to raise the vehicle.
9
Only use the saddles provided with the jacking beam.
9
Be sure setup is stable and secure before lifting. Be careful of pinch points.
9
This is a lifting device only. Make sure the load is central on saddles before lifting.
9
The beam can only be used to lift one end of the vehicle.
9
Ensure that there are no persons or obstructions beneath the vehicle before lowering. Always lower load slowly and carefully.
9
Please check the spillage of oil before use, if you notice a spillage of oil, stop using the product and repair immediately.
9
If the product can not be lowered as wished, the vehicle must be secured by suitable means against unintended lowering. Get a new
9
suitable product, with which you can lift the vehicle, so that the defect product can repaired or removed and changed. If you are unsure,
please ask for professional help.
The operator MUST watch the lifting device and the load during all movements.
9
DO NOT work under the raised load until it is secured by suitable means.
8
Product safety markings need to be inspected before use and be maintained in as new condition. Contact Sealey for replacements if
9
damaged.
This product must be maintained and repaired in accordance with the manufacturers instructions. Such maintenance and repair shall be
9
carried out by qualified persons.
This jacking beam is only to be mounted on lifts approved by the lift manufacturer for mounting of jacking beams. Be aware that not all
9
lifts are approved. Rated beam capacity must be max. 2/3 of vehicle lift capacity.
Mount the jacking beam with adequate support arms on horizontal, parallel and solid rails and secure arms before use.
9
Check before each lift, that the support arms are correctly placed on rail of lift or pit edge.
9
Always lower the jacking beam to the nearest safety stop immediately - or use axle stands for support before working on vehicle.
9
DO NOT overload, for instance due to sudden external overload can cause damage or failure of the jacking beam.
8
During lifting make sure the that the saddles cannot slide.
9
Gravity of load must always be placed centrally.
9
The 2 extension arms must only be used simultaneously.
9
WARNING! Failure to heed these precautions may result in loss of load, damage to beam and/or personal injury.
‰
2. INTRODUCTION
Jacking beam lifts load with compressed air. Fully certified and approved to comply with MOT requirements. Wide lift configuration meets MOT
recommendation for lifting on jacking point. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
© Jack Sealey Limited

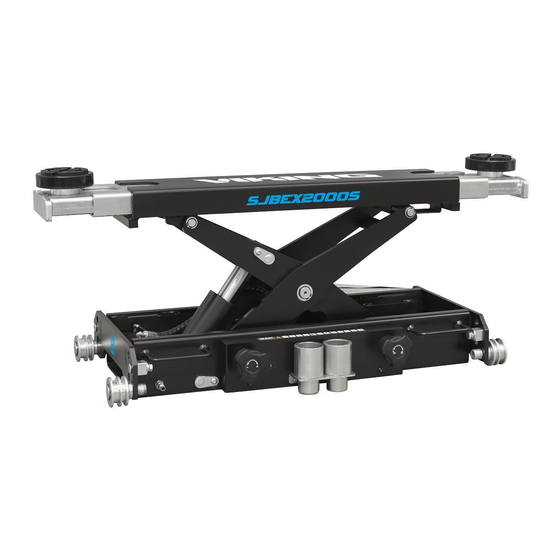

VIKING 2/3 TONNE JACKING BEAM WITH 1.5M
EXTENDING ARMS
MODEL NO'S:
Wear protective Wear safety
clothing footwear
Original Language Version
SJBEX2000S, SJBEX3000S
SJBEX2000S, SJBEX3000S Issue:1 26/10/22
