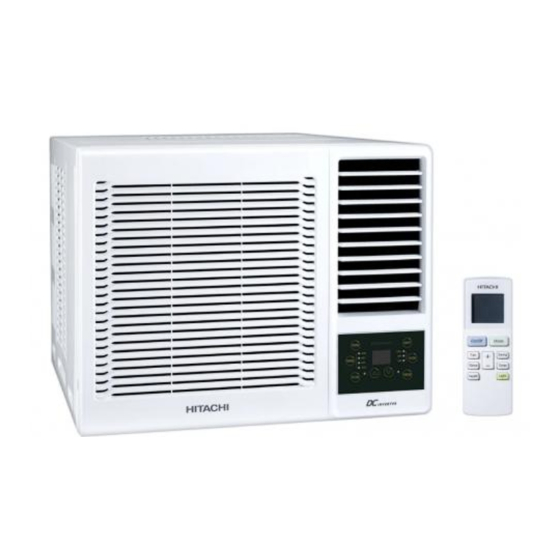

- Page 1 MANUAL Window Type Air Conditioner R32 Inverter Cooling only Series Access the full version of the Manual by scanning the code. Model RAW-XH07CA RAW-XH10CA RAW-XH13CA RAW-XH18CA RAW-XH24CA This appliance is using R32 mildly flammable refrigerant. HO202 2 4 7 7 HA...
- Page 2 R32 SAFETY PRECAUTIONS Installation - Must ensure the installation performed by an authorized dealer or professionally trained technician - Must ensure the installation of pipe-work shall be kept to a minimum. Avoid to use dented pipe and do not allow acute bending. - Must ensure that pipe-work shall be protected from physical damage.
- Page 3 R32 SAFETY PRECAUTIONS No ignition sources - All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking"...
- Page 4 R32 SAFETY PRECAUTIONS Repairs to sealed components - During repairs to sealed components, all electrical supplies shall be disconnected prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
- Page 5 R32 SAFETY PRECAUTIONS Max. Refrigerant charge Model number R32 Max. Refrigerant charge Minimum installation height (kg) RAW-XH07CA 0.43 750mm RAW-XH10CA 0.43 750mm RAW-XH13CA 0.435 750mm RAW-XH18CA 0.63 750mm RAW-XH24CA 0.71 750mm - Based on IEC 60335-2-40, there is no restriction for the minimum installation floor area since the refrigerant charges is less than 1.842kg.
- Page 6 R32 SAFETY PRECAUTIONS - Become familiar with the equipment and its operation. - Isolate system electrically. - Before attempting the procedure, ensure that: • mechanical handling equipment is available for handling refrigerant cylinders; (if required) • all personal protective equipment is available and being used correctly; •...
- Page 7 R32 SAFETY PRECAUTIONS - The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant waste transfer note arranged. - Do not mix refrigerants in recovery units and especially not in cylinders. - If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
-
Page 8: Explanation Of Symbol
Structure mechanism and Installation Explanation of Symbol WARNING: Appliance filled with mildly flammable gas R32. CAUTION: Before using the appliance, read the installation & operation manual first. CAUTION: Information is available such as the installation & operation manual. CAUTION: Before repairing the appliance, read the service manual first. Indicates a hazardous situation that, if not avoided, will result in death or serious injury. - Page 9 Structure mechanism and Installation Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons. 1. Damage the product due to improper use of misuse of the product; 2. Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of manufacturer;...
-
Page 10: Operating Condition
Structure mechanism and Installation Operating condition Please operate air conditioner in the correct conditions as follows. COOL mode operation DRY mode operation Outdoor temperature should be in Outdoor temperature should be in range of 18 to 43 Otherwise it is possible for air Otherwise it is possible for air conditioner to breakdown. - Page 11 Structure mechanism and Installation Operation Temperature : 18-43 o C / 64-109 o F Outdoor temp: Cooling operation 17-32 o C / 62-90 o F Indoor temp: Note: Performance may be reduced outside of these operating temperatures. Power cord RAW-XH24CA 1.
-
Page 12: Installation Steps
Structure mechanism and Installation Installation Steps Step 1. Remove the front panel and the air filter Hold the slot under the front panel, then uplift outwards, and remove the front panel (See Fig. 1). Pinch the handle under the air filter and make the air filter arched, remove it from the slot from to upside (See Cut and remove the cable tie (See Fig. -
Page 13: Remote Control Operation Procedure
Operation procedure Remote control operation procedure Note: This is a general use remote control, it could be used for the air conditioners with multifunction. For some functions which the model have, the unit will keep the original running status if pressing the corresponding button on the remote control. (not applicable) - 6 -... -
Page 14: Remote Control Panel
Operation procedure Remote control panel Note: If wireless remote control is lost, you can use the remote control panel and operate manually. RAW-XH07CA RAW-XH10CA RAW-XH13CA RAW-XH18CA RAW-XH24CA 1 ON/OFF BUTTON Operation starts when pressing this button. Pressing this button again to stop the operation. -
Page 15: Care And Maintenance
Care and maintenance Caution Operations for safety and health The plug must be accessible after the appliance is positioned. Do not use this appliance in the laundry room. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in avoid of hazard. -
Page 16: Cleaning And Maintenance
Care and maintenance Cleaning and maintenance 1 . Cut power off before cleaning. Air filter The air filter behind the intake grille should be washed at least once every two weeks or as often as Plug out only after air conditioner it needs cleaning. -
Page 17: Troubleshooting Guide
Care and maintenance Troubleshooting guide Please check the following items before asking for repair, it saves your time and money. Fault phenomenon Trouble - shooting Is there a power failure? Air conditioner Is the plug out? does not operate Is power fuse or switch off ? at all. -
Page 18: After Sales Service
Care and maintenance Immediately stop all operations and plug out or isolate power supply, please contact your dealer in the following situations. * Operation starts or stops abnormally; * Power fuse or switch often breaks; * Carelessly splash water or something into air conditioner; * Electrical lines are much hot or lines cover breaks;... - Page 19 They can take this product for environmental safe recycling. Specifications in this document are subject to change without notice, in order that Hitachi-Johnson Controls Air Conditioning, Inc. may bring the latest innovations to their customers Hitachi-Johnson Controls Air Conditioning, Inc.
