Object manuals
S5U1C17001H2 User Manual
(ICDmini Ver2.0)
Same as above
(Error)
4.1.1 Target Interface Connector
Notes:
- When wiring the S1C processor to the target connector for connecting the S5U1C17001H,
insert a 33ohm resistor in series between the S1C processor DSIO pin and the connector.
This resistor must be placed as close to the S1C processor as possible. Although the
system can operate without this 33ohm resistor, we recommend inserting this resistor to
prevent malfunctions. The other pins are connected directly. A low-level input to the DSIO
pin issues a forced break to set the S1C processor into debug mode. Although this signal is
pulled up through about 100k ohm internally, when not debugging, we recommend either
removing the 33ohm resistor to reduce noise and other problems or pulling this line up to
the VDD level.
S1C17 Manual errata
Document codes
Items
411153403
4.1.1 Target Interface Connector
Same as above
8.3 Notes on Use of S5U1C17001H
Dec/26/2012
errata_s5u1c17001h2_1
Pages
14
32,33
Advertisement
Related Manuals for Epson S1C17
Summary of Contents for Epson S1C17

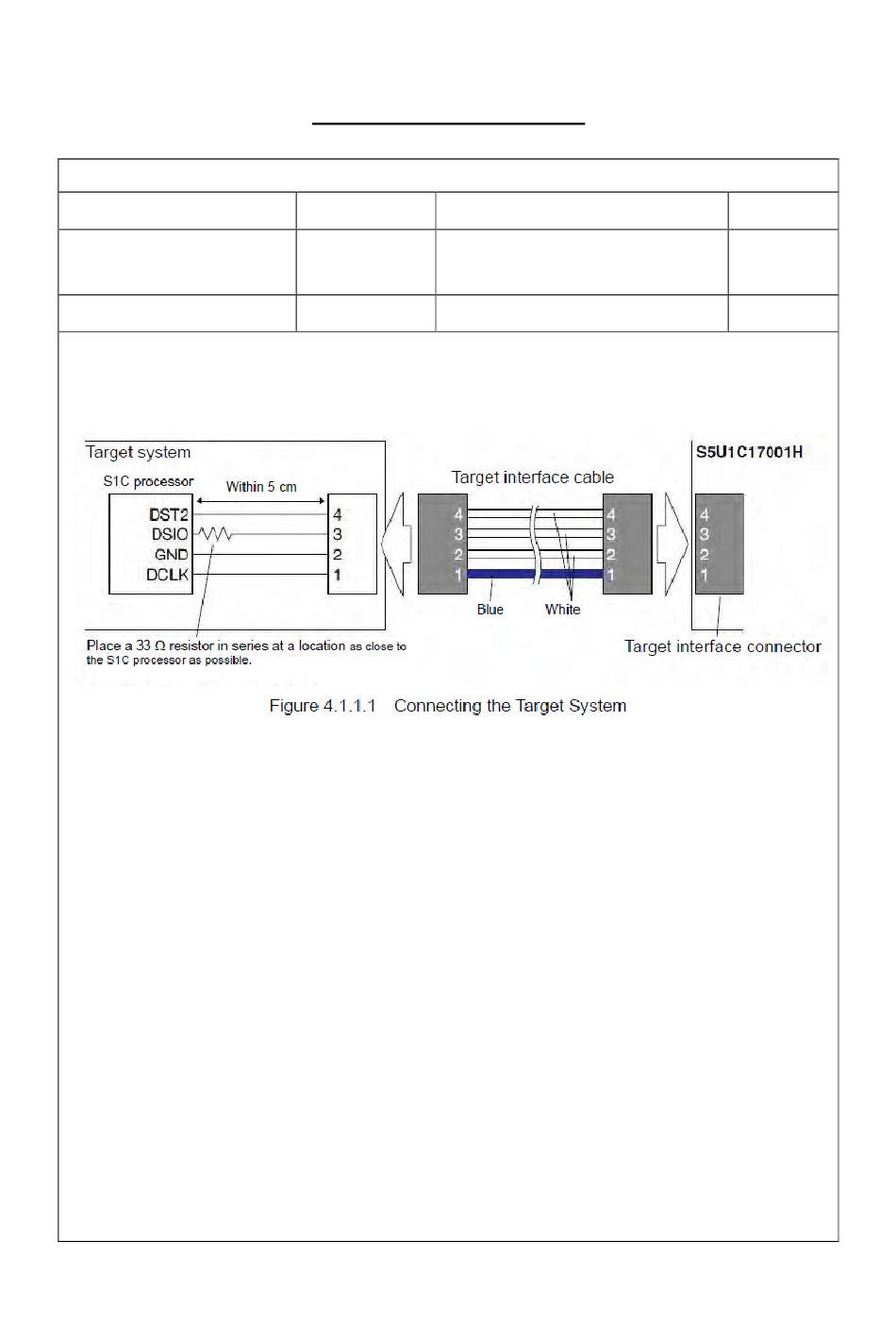

- Page 1 Dec/26/2012 errata_s5u1c17001h2_1 S1C17 Manual errata ITEM: Object manuals Document codes Items Pages S5U1C17001H2 User Manual 411153403 4.1.1 Target Interface Connector (ICDmini Ver2.0) Same as above Same as above 8.3 Notes on Use of S5U1C17001H 32,33 (Error) 4.1.1 Target Interface Connector...
- Page 2 Dec/26/2012 errata_s5u1c17001h2_1 8.3 Notes on Use of S5U1C17001H Wiring between the S1C processor and target connector When wiring the S1C processor to the target system connector for connecting the S5U1C17001H, insert a 33ohm resistor in series between the S1C processor DSIO pin and the connector.
- Page 3 Dec/26/2012 errata_s5u1c17001h2_1 (Correct) 4.1.1 Target Interface Connector Notes: - Please refer to a technical manual of each model for the connection method with the target system. 8.3 Notes on Use of S5U1C17001H Wiring between the S1C processor and target connector Please refer to a technical manual of each model for the connection method with the target system.
- Page 4 Oct/04/2013 errata_s5u1c17001h2_2 S1C17 Manual errata ITEM: Object manuals Document codes Items Pages S5U1C17001H2 User Manual 411153403 8.3 Notes on Use of S5U1C17001H (ICDmini Ver2.0) (Error) There is no description. (Correct) About how to put this product Please use this product with the rubber foot below.
- Page 5 (Error) Added. (Correct) (6) Check the current firmware version, and enter the following commands if updating is required. When S1C17 processor is selected (gdb) c17 fwe 0 (gdb) c17 fwe 1 (gdb) c17 firmupdate path¥filename.saf When S1C33 processor is selected (gdb) c33 firmupdate path¥filename.saf...
- Page 6 Oct/04/2013 errata_s5u1c17001h2_4 S1C17 Manual errata ITEM: Object manuals Document codes Items Pages S5U1C17001H2 User Manual 411153403 4.1.2.1 Target reset signal output (ICDmini Ver2.0) (TARGET RST OUT) (Error) 4.1.2.1 Target reset signal output (TARGET RST OUT) When using the TARGET RST OUT output, a reset circuit as shown in the figure below is...
- Page 7 Oct/04/2013 errata_s5u1c17001h2_4 (Correct) 4.1.2.1 Target reset signal output (TARGET RST OUT) The TARGET RST OUT terminal of S5U1C17001H2 is the following circuits. Power supply input from target 3.3V 1.8V system S5U1C17001H2 Selected by dip switch (SW4,5) TARGET VCC IN TARGET RST OUT Target system reset signal Figure 4.1.
- Page 8 Oct/04/2013 errata_s5u1c17001h2_4 Voltage Input reset command on debugger TARGET RST OUT Time About14msec Figure 4.1.2.2(b) Reset terminal output waveform...
