SUPERFREEZE PIPE FREEZING UNIT
SF - 2500
SKU: RID68962

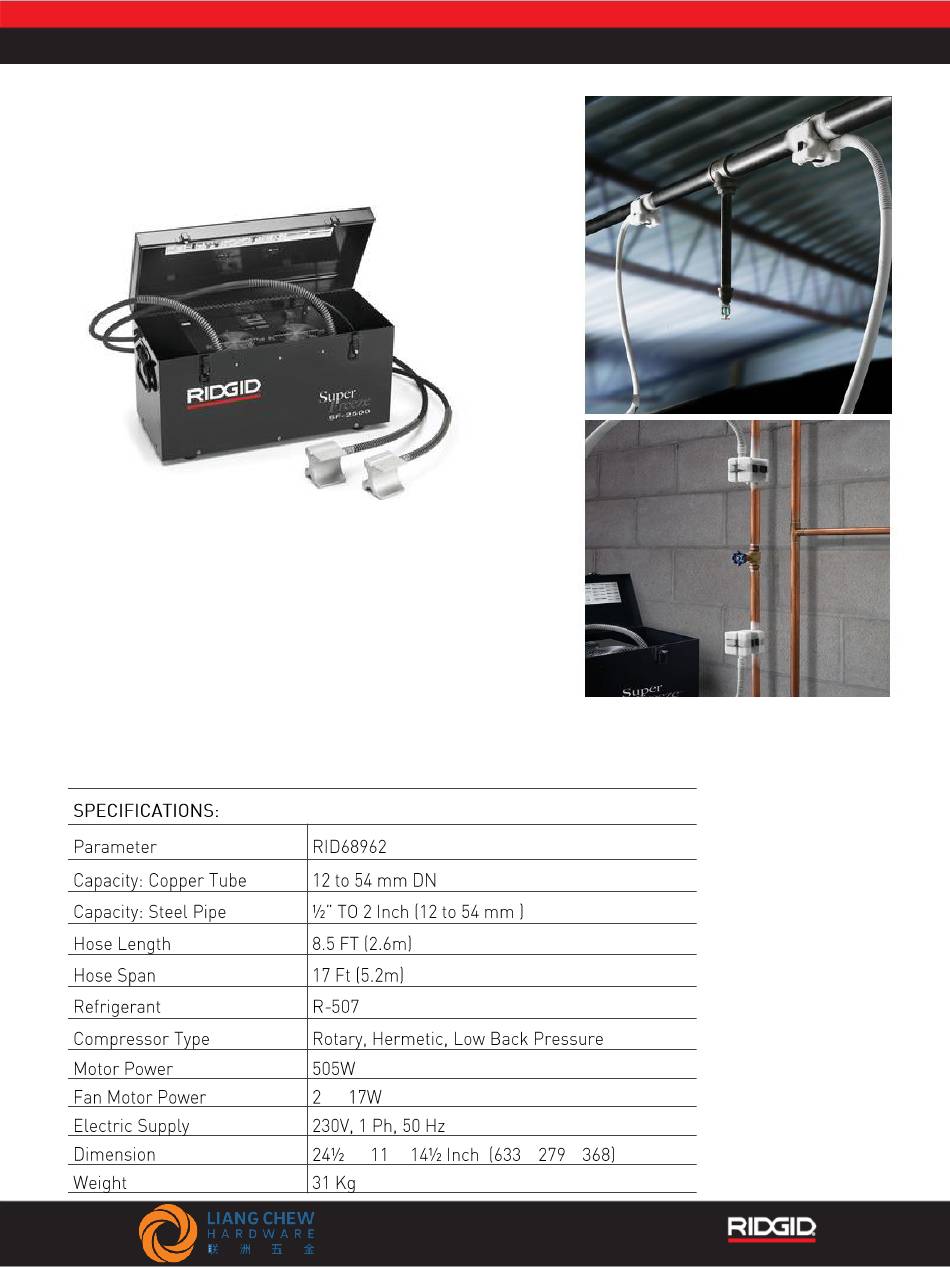

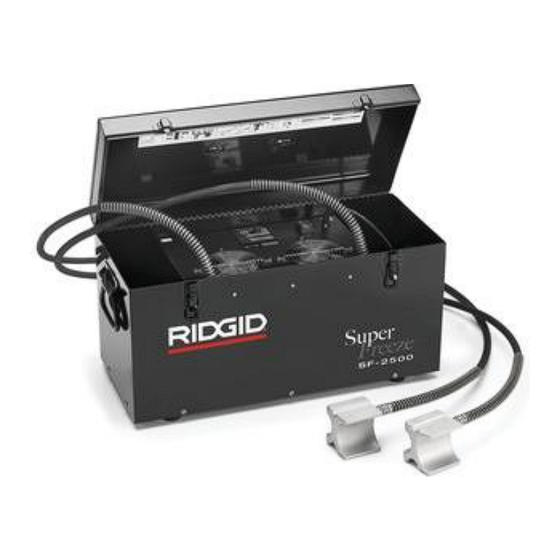

The SuperFreeze Pipe Freezer is an easy-to-use pipe-freezing
unit that allows the contractor to keep water systems operating
while making repairs. The RIDGID® Model SF-2500 is a mini-
refrigeration unit that circulates self-contained refrigerant to its
aluminum freeze heads. This forms an ice plug in as little as 6
minutes. Once the pipe is plugged, repairs can be made while
the ice plug is maintained by the unit. Includes a bottle of
specially formulated freeze gel to speed freezing. Apply the gel
to freeze heads before placing on pipe.
×
×
×
×
×

Advertisement

Table of Contents
loading

Related Manuals for RIDGID SF-2500

Summary of Contents for RIDGID SF-2500

  • Page 1 The SuperFreeze Pipe Freezer is an easy-to-use pipe-freezing unit that allows the contractor to keep water systems operating while making repairs. The RIDGID® Model SF-2500 is a mini- refrigeration unit that circulates self-contained refrigerant to its aluminum freeze heads. This forms an ice plug in as little as 6 minutes.
  • Page 2 SF-2300/SF-2500 Manual SuperFreeze ® Pipe Freezing Units WARNING! Read this Operator’s Manual carefully before using this tool. Failure to understand and fol- low the contents of this manual may result in extensive prop- erty damage and/or serious personal injury. •...

  • Page 3: Table Of Contents

    SuperFreezer ® Pipe Freezing Units Table of Contents Recording Form for Machine Serial Number ......................1 Safety Symbols................................2 General Safety Rules Work Area Safety................................2 Electrical Safety ................................2 Personal Safety ................................2 Power Tool Use and Care ............................3 Service ..................................3 Pipe Freezing Unit Safety Warnings..........................3 Description, Specifications and Standard Equipment Description ..................................3 Specifications................................4...

  • Page 4: Recording Form For Machine Serial Number

    SF-2300/SF-2500 SuperFreeze ® Pipe Freezing Units SuperFreeze ® Pipe Freezing Units Record Serial Number below and retain product serial number which is located on control panel. Serial...

  • Page 5: Safety Symbols

    SuperFreezer ® Pipe Freezing Units Safety Symbols In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safe- ty information. This section is provided to improve understanding of these signal words and symbols. This is the safety alert symbol.

  • Page 6: Power Tool Use And Care

    • Maintain the tools. Check for misalignment or bind- If you have any question concerning this RIDGID ® product: ing of moving parts, breakage of parts and any other condition that may affect the tool’s operation.

  • Page 7: Specifications

    Velcro Strap Bushings Figure 3 – Unit Serial Number Figure 1 – SF-2500 SuperFreeze Unit The machine serial number is located on the control panel. An additional decal is supplied that indicates the month and year of manufacture. (05 = Month, 13 = Year)

  • Page 8: Pre-Operation Inspection

    SuperFreeze ® Pipe Freezing Units NOTICE This product is used to freeze ice plugs in Machine and Work Area Set-Up water piping systems. The ability to freeze plugs is WARNING dependant on a wide variety of factors as discussed in this manual.

  • Page 9: Capacities For Copper Tube &Steel Pipe

    The freeze gel improves (30 mm) or larger. Plugs placed closer to a circu- Capacities for Copper Tube and Steel Pipe Model Freeze Head Copper Tube (CTS) Steel Pipe Cavity Req’d Bushing SF-2500, " — — 115V Domestic (68967) " " Cat. #69712 and 230V Domestic 1"...
  • Page 10 SuperFreeze ® Pipe Freezing Units Model Freeze Head Copper Tube (DN) Steel Pipe Cavity Req’d Bushing 12 mm — 42838 SF-2300, 230V European Model 15 mm — 42853 (41078) 18 mm — — 22 mm " (15 mm) 42843 28 mm "...

  • Page 11: Operating Instructions

    SuperFreezer ® Pipe Freezing Units Operating Instructions WARNING Before opening system, test to confirm that the ice plugs are fully formed and stable. Opening the piping system before a complete plug is frozen or allowing Figure 7 – Freeze Head with End Adapter Attached with the plug to thaw while the system is open could Velcro Strap cause burns, electric shock or other serious injury or...

  • Page 12: Freezing Times

    (Minutes) CTS Inches DN mm °F °C SF-2500 SF-2300 son the power to the freezing unit is interrupted, turn the ON/OFF switch to OFF and do not restart for at least 30 seconds to prevent compressor damage. 6. Once the ice plug has been completely formed and enough time has passed since confirmation that there Figure 9 –...

  • Page 13: Accessories

    For EC Countries: Do not dispose of elec- trical equipment with household waste! Further information on accessories specific to the tool can be found in the RIDGID Catalog and online at According to the European Guideline 2002/ - www.RIDGID.com or www.RIDGID.eu.

  • Page 14: Troubleshooting

    SuperFreeze ® Pipe Freezing Units Troubleshooting PROBLEM POSSIBLE REASONS SOLUTION Freeze heads do not be- Unit has been stored in a cold location; unit has If freeze heads are not cold and frost-covered come frost-covered after not been used for long time. after 7 minutes, turn the unit OFF.
  • Page 15 SuperFreezer ® Pipe Freezing Units...
