- Page 1 English DPC-x81-F Module Quick Installation Guide...
-
Page 2: Panel Introduction

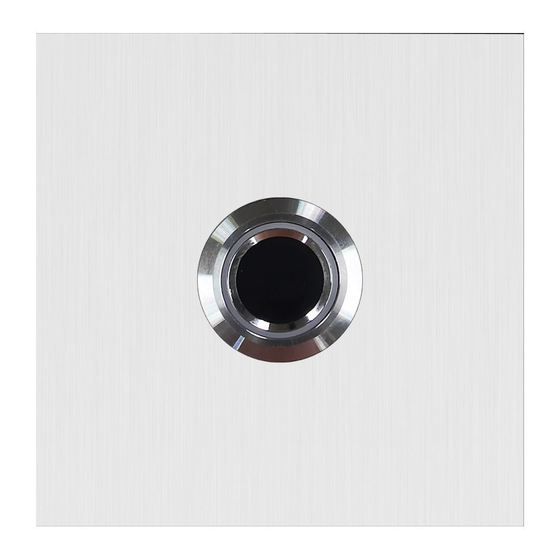

FP MODULE Panel Introduction Fingerprint window Connect to main or other module indicator Fingerprint Setting and Management [Management Fingerprint] will serve as a registered or delete credential of user fingerprint. The system can only store two management fingerprints. 1. Register [Management Fingerprint] When the system has never been registered [Man- agement Fingerprint], you can according to the following operation to register [Management Finger-... - Page 3 FP MODULE 1.1 Setting ADD Management Fingerprint 1. Put the 6th dip switch of VD Standby mode module on. 2.Short circuit the exit button of VD module. 3.On FP module, press any finger for 5 seconds to enter the management fingerprint mode.
- Page 4 1.2 Setting DEL Management Fingerprint After the step of setting ADD Management Fingerprint, the LED indicator will turn to purple, follow the steps below to setting DEL Management Fingerprint. 1.Press finger in the fingerprint Successfully set as DEL management window,the "beep,beep" prompt tone fingerprint.
- Page 5 FP MODULE 2.1 Add User Fingerprints Press the [ADD Management 1.Press finger in the fingerprint window,the "beep,beep" prompt tone Fingerprint] In the standby mode; indicates that the input is successful. It will enter the state of add user 2.Repeat the above operation for 3-7 fingerprints setting times Buzzer...
- Page 6 FP MODULE 2.2 Delete User Fingerprints Press the [DEL Management 1.On other modules, press the call button or KP keyboard to specify the Fingerprint] In the standby mode; room number. If not, it is classified as It will enter the state of delete user public room number.
- Page 7 FP MODULE 2.4 Clear All Fingerprints Clear all fingerprints, including management fingerprints and user fingerprints, ini- tialization operation is required. 3. Backup fingerprint data 1. Create an empty folder “FPBACKUP” in an empty SD card. 2. Put the 6th dip switch of VD module on. 3.
