Warranty card attached
Thank you for purchasing this Panasonic product.
Please read these installation and operating instructions carefully before attempting to
install, operate or service the Panasonic product. Please carefully read "INSTALLATION
INSTRUCTIONS" (P.2 ~ 3) of this instructions before installation. Failure to comply with
instructions could result in personal injury or property damage. Please explain to users
how to operate and maintain the Panasonic product after installation, and this booklet
should be presented to users. Please carefully read "USE AND MAINTENANCE
INSTRUCTIONS" (P.6 ~ 7) of this instructions before operation.
Please retain this booklet for future reference.
Make sure that the correct information is written on the warranty card, including the date
of purchase and the name of the distributor. Keep the warranty card in a safe place along
with the instructions for future reference.
INSTALLATION AND
OPERATING INSTRUCTIONS
Model No.
CONTENTS
SAFETY INSTRUCTIONS ........................2
INSTALLATION INSTRUCTIONS......... 2 ~ 3
INSTALLATION REQUESTS ....................3
SUPPLIED ACCESSORIES........................4
PART NAME AND DIMENSIONS.............4
HOW TO INSTALL..............................4 ~ 5
TEST RUN..............................................6
INSTRUCTIONS..................................6 ~ 7
TROUBLESHOOTING..............................7
WIRING DIAGRAM................................8
SPECIFICATIONS....................................8

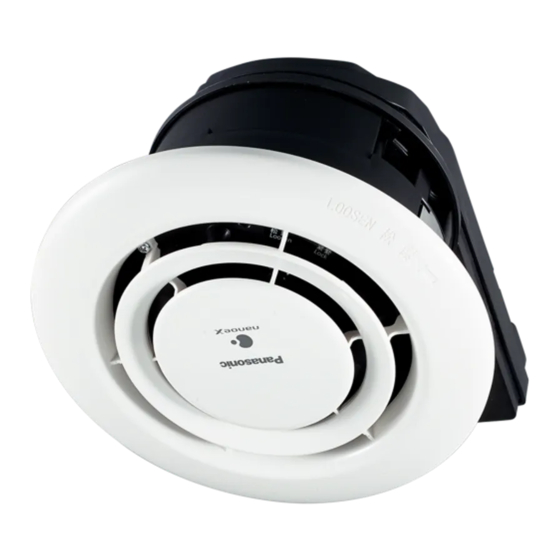

Air Purifier
FV-15CSD1
7 ~ 8
Advertisement
Table of Contents
Related Manuals for Panasonic FV-15CSD1NAH
Summary of Contents for Panasonic FV-15CSD1NAH
-
Page 1: Table Of Contents
INSTRUCTIONS” (P.2 ~ 3) of this instructions before installation. Failure to comply with instructions could result in personal injury or property damage. Please explain to users how to operate and maintain the Panasonic product after installation, and this booklet should be presented to users. Please carefully read “USE AND MAINTENANCE INSTRUCTIONS”... -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Please observe strictly Disconnect power supply before maintenance. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for the safety. -
Page 3: Installation Requests
INSTALLATION INSTRUCTIONS WARNING Please select 60227 IEC 53 (RVV) Installation and wiring should be done ordinary polyvinyl chloride sheathed by authorized person. (Wiring is required cord. Nominal cross-sectional area to follow the local wiring regulations.) of conductors is 3×0.75 mm Otherwise, a fire may be caused. -
Page 4: Supplied Accessories
SUPPLIED ACCESSORIES The following accessories are provided with the product in the package. When you unpack, check if the accessories are all included. If not, please contact your dealer. Drawing Name Installation and operating instructions Warranty card For malaysian and Vietnamese markets PART NAME AND DIMENSIONS Unit: mm Part name... -
Page 5: How To Install
HOW TO INSTALL Set the power cord as below, connect Remove the terminal cover and cord clip. the power cord to terminal and tight it with cord clip, assemble the terminal Terminal cover cover. Terminal Earth wire Cord clip Turn the install screw of product clockwise till the install plate clamping Ensure each install plate is at the to ceiling. -
Page 6: Test Run
TEST RUN Please check the following items by test run after connecting power. Does the fan rotate? Does the blue LED light? Does it have abnormal vibration or noise? USE AND MAINTENANCE INSTRUCTIONS WARNING The fan may rotate even when power Inspection and maintenance by supply is switched off. -
Page 7: Troubleshooting
USE AND MAINTENANCE INSTRUCTIONS Clean the dust on surface of louver with a cloth adding neutral cleanser, and then dry the louver with a soft dry cloth. Do not insert the finger or nanoe X exit rarity into the nanoe X exit. -
Page 8: Wiring Diagram
4. High OH hydroxyl amount (up to 4,800 billion of OH ions are generated per second) 5. Weak acidity (with weak acidity features close to that of hair and skin) Note: nanoe and the nanoe mark are trademarks of Panasonic Corporation. WIRING DIAGRAM SPECIFICATIONS Rated...
