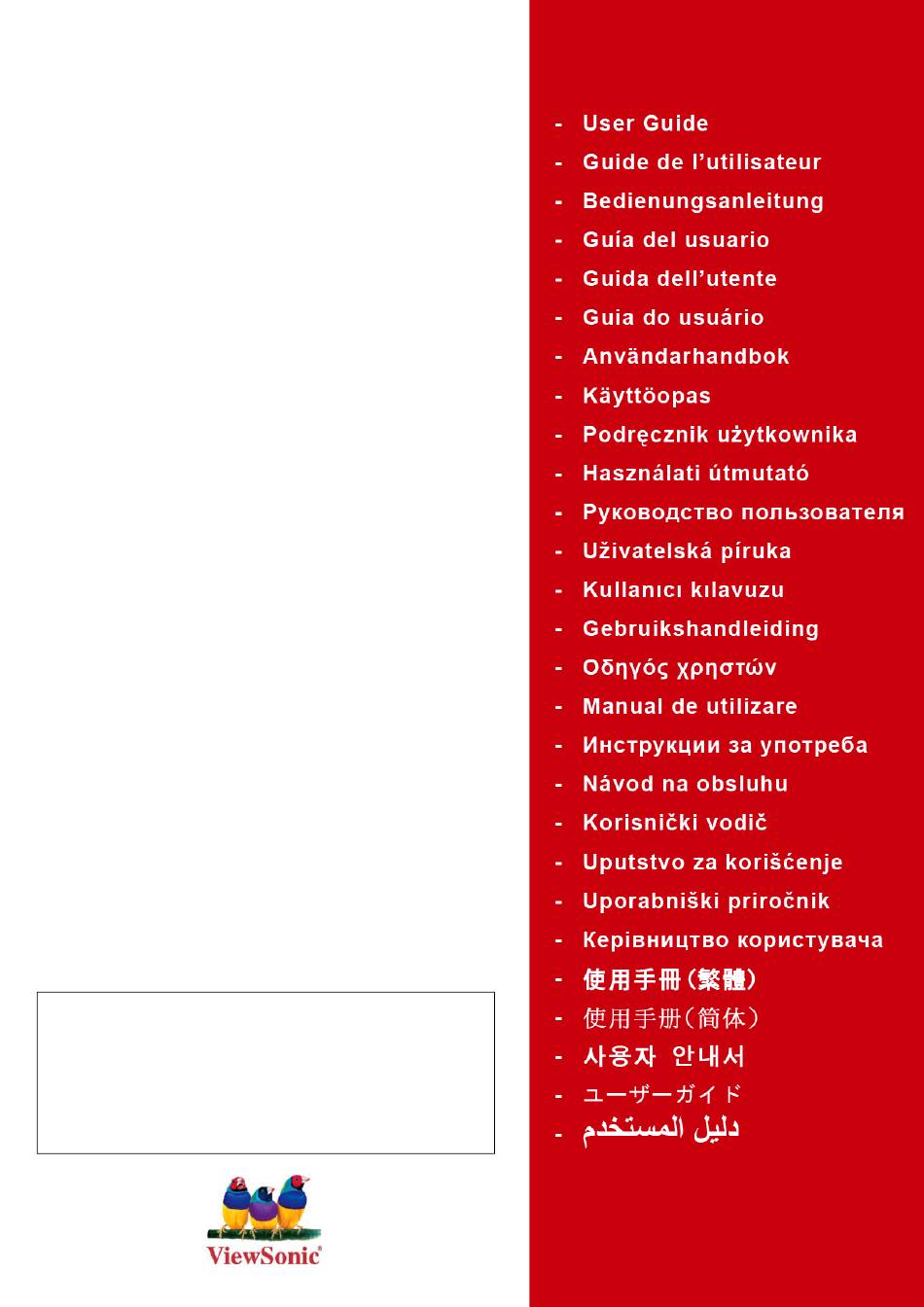

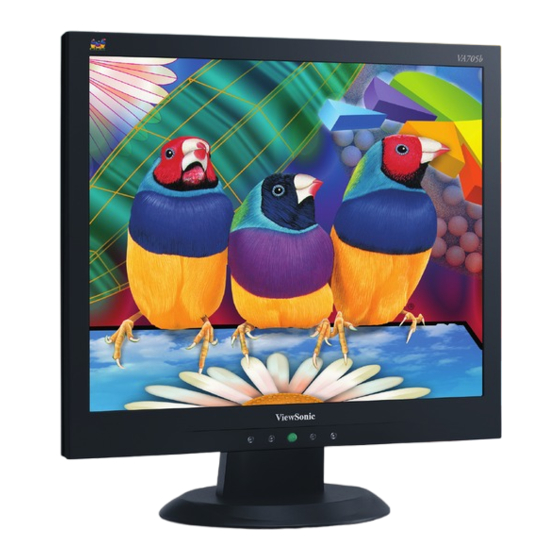

VA705m/VA705b
LCD Display
IMPORTANT: Please read this User Guide to obtain important
information on installing and using your product in a safe manner, as
well as registering your product for future service. Warranty information
contained in this User Guide will describe your limited coverage from
ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specific languages using the
Regional selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en
este manual"
Model No. : VS11359
Advertisement
Table of Contents
Related Manuals for ViewSonic VA705m
Summary of Contents for ViewSonic VA705m
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
-
Page 2: Tco Information
1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit www.tcodevelopment.com ViewSonic VA705m/VA705b... -
Page 3: Table Of Contents
OSD and Power Lock Settings ..............8 Adjusting the Screen Image ............... 9 Main Menu Controls ................. 11 Other Information Specifications ................... 14 Troubleshooting..................15 Customer Support ..................16 Cleaning the LCD Display ................ 17 Limited Warranty ..................18 Mexico Limited Warranty ................20 ViewSonic VA705m/VA705b... -
Page 4: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. ViewSonic VA705m/VA705b... -
Page 5: Important Safety Instructions
ViewSonic VA705m/VA705b... -
Page 6: Declaration Of Rohs Compliance
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). 4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic VA705m/VA705b... -
Page 7: Copyright Information
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 8: Getting Started
NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files. -
Page 9: Quick Installation
Customer Support table in this guide. file. This is on the CD. The ViewSonic Wizard CD-ROM also 4. Insert the ViewSonic Wizard CD into provides an opportunity for you to print the computer’s CD drive. the registration form which you may mail Follow the on-screen instructions. -
Page 10: Wall Mounting (Optional)
For use only with UL Listed Wall Mount Bracket ® To obtain a wall-mounting kit or height adjustment base, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following: Step 1. -
Page 11: Using The Lcd Display
Power Button Locked will display for 3 seconds. With or without this setting, after a power failure, your LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow again for 10 seconds. ViewSonic VA705m/VA705b... -
Page 12: Adjusting The Screen Image
Also a shortcut to Auto On/Off Image Adjust. Scrolls through menu options and adjusts the displayed control. Displays the Main Menu or Also a shortcut to exits the display the control screen Contrast and saves adjustment control adjustments. screen. ViewSonic VA705m/VA705b... - Page 13 • If necessary, make small adjustments using H. POSITION and V. POSITION until the screen image is completely visible. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VA705m/VA705b...
-
Page 14: Main Menu Controls
Contrast adjusts the difference between the image background (black level) and the foreground (white level). Brightness adjusts background black level of the screen image. Audio Adjust (For VA705m only) Volume increases the volume, decreases the volume, and mutes the audio. Mute temporarily silences audio output. - Page 15 1280 x 1024 and the refresh rate is 60 Hertz. Manual Image Adjust displays the Manual Image Adjust menu. H./V. Position (Horizontal/Vertical Position) moves the screen image left or right and up or down. H. Size (Horizontal Size) adjusts the width of the screen image. ViewSonic VA705m/VA705b...
- Page 16 Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. Exception: This control does not affect changes made with the User Color control, Language Select or Power Lock setting. ViewSonic VA705m/VA705b...
-
Page 17: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. ® Macintosh computers older than G3 require a ViewSonic Macintosh adapter. To order an adapter, contact ViewSonic. -
Page 18: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. ® • If you have an older graphics card, contact ViewSonic for a non-DDC adapter. Control buttons do not work • Press only one button at a time. -
Page 19: Customer Support
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ T= 0800-54565 soporte@viewsonic.com... -
Page 20: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic VA705m/VA705b... -
Page 21: Limited Warranty
How long the warranty is effective: ViewSonic LCD displays are warranted for 3 years for all parts including the light source and 3 years for all labor from the date of the first consumer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. - Page 22 Exclusion of damages: ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon incon- venience, loss of use of the product, loss of time, loss of profits, loss of business opportu- nity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
-
