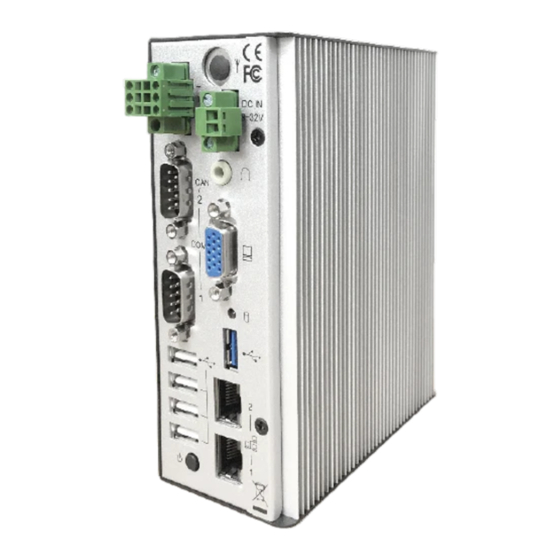

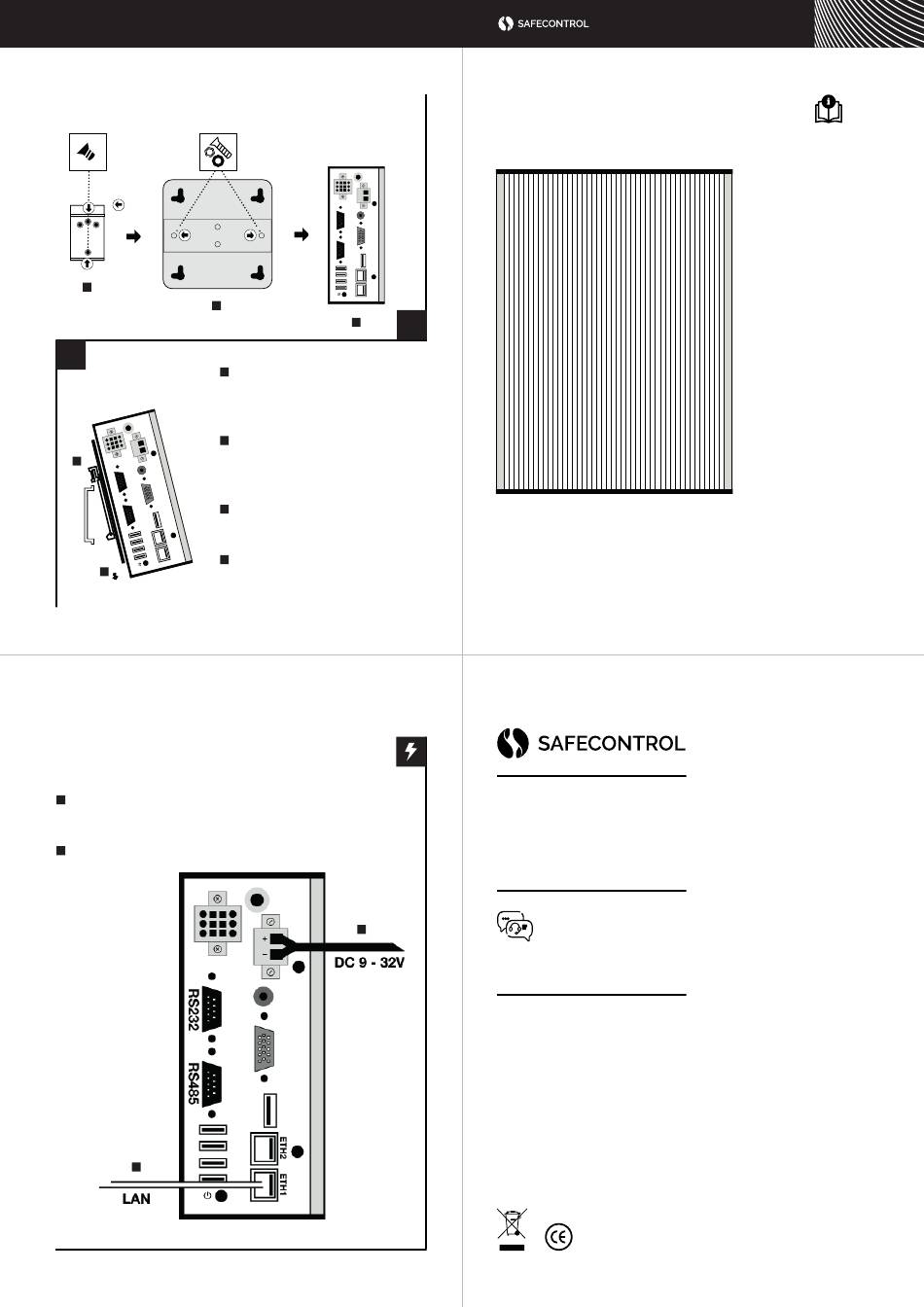

SAFECONTROL WEBserver-20 Connecting Instructions

DIN rail mounting
2x 2x
1
2
2
1
2
4
4
5
5
Connection
Connect the power supply
1
to the power terminals.
2 Connect the Ethernet cable
to the ETH1 port.
2
1
3
Screw the parts (1) and (2) together
using the enclosed nuts
and washers.
Screw the screwed parts to the
WEBserver (3) using the enclosed
screws (black).
Mount the WEBserver on the DIN
rail at an angle.
Press the WEBserver against
the DIN rail and release.
1
Installation guide
WEBserver-20
SAFECONTROL s. r. o.
Vaníčkova 315/7
169 00 Praha 6
IČO: 02084287
DIČ: CZ02084287
