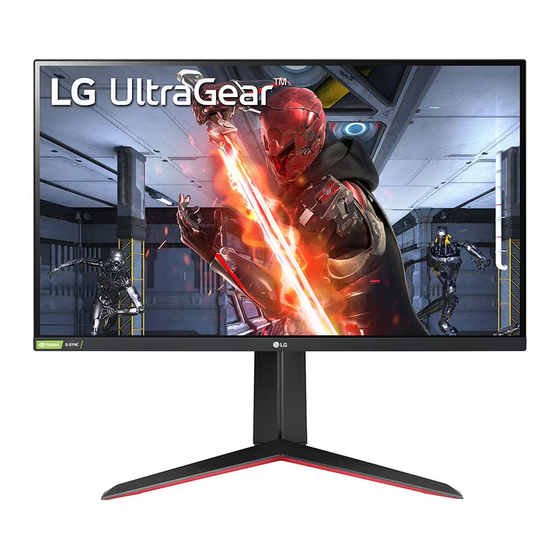

- Page 1 Owner’s Manual LED Monitor* * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 24GN65R 27GN65R 32GN55R www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS LICENSE ........3 - Connecting Peripherals...........17 Connecting Headphones ASSEMBLING AND PREPARING .4 USER SETTINGS ....... 18 - Supported Drivers and Software ......4 - Activating the Main Menu ........18 - Product and Button Description......5 Main Menu Features How to Use the Joystick Button - User Settings ...............20 - Moving and Lifting the Monitor......6 Menu Settings... -
Page 3: License
LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Page 4: Assembling And Preparing
The power cord provided may differ depending upon the region. • It is recommended that use the supplied components. • If you use generic cables not certified by LG, the screen may not display or there Supported Drivers and Software may be image noises. •... -
Page 5: Product And Button Description
Product and Button Description How to Use the Joystick Button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger. Basic Functions Press the joystick button once with Power on your finger to turn on the monitor. -
Page 6: Moving And Lifting The Monitor
Moving and Lifting the Monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. -
Page 7: Installing On A Table
Installing on a Table • If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or • Lift the monitor and place it on the table in an upright position. Place the monitor human injury. -
Page 8: Adjusting The Stand Height
Adjusting the Stand Height CAUTION Place the monitor mounted on the stand base in an upright position. • Unplug the power cord before moving or installing the monitor. There is risk of Handle the monitor with both hands for safety. electric shock. -
Page 9: Adjusting The Angle
Adjusting the Angle WARNING Place the monitor mounted on the stand base in an upright position. • To avoid injury to the fingers when adjusting the screen, do not hold the lower part Adjust the angle of the screen. of the monitor’s frame as illustrated below. The angle of the screen can be adjusted forward or backward from -5°... -
Page 10: Pivot Feature
Pivot Feature Adjust the angle of the monitor in the direction of the arrow as shown in the figure. The pivot feature allows the monitor to rotate 90° clockwise. Head Rotate the monitor clockwise as shown in the figure. Stand WARNING •... -
Page 11: Tidying Up Cables
Tidying up Cables Complete the installation by rotating the monitor 90° as shown below. Arrange the cables using the cable holder as shown in the illustration. (27GN65R,32GN55R) NOTE • Auto Pivot feature of the display is not supported. • The screen can be rotated easily using the screen pivot shortcut key provided with your Windows operating system. -
Page 12: Using The Kensington Lock
Using the Kensington Lock Installing the Wall Mount Plate The connector for the Kensington security system is located at the bottom of the This monitor meets the specifications for the wall mount plate or other compatible monitor. devices. For more information on installation and usage, refer to the Kensington lock owner’s Place the screen face down. -
Page 13: Installing On The Wall
A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non- standard screws. 100 mm (3.94 inches) - Page 14 • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact Back of the the local dealer or qualified personnel.
-
Page 15: Using The Monitor
USING THE MONITOR Connecting to a PC • This monitor supports the *Plug and Play feature. • Illustrations in this manual may differ from the actual product. * Plug and Play: A feature that allows you to add a device to your computer without Press the joystick button, go to Menu →... -
Page 16: Displayport Connection
Connecting AV Devices DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. HDMI Connection HDMI transmits digital video and audio signals from your AV device to the monitor. NOTE • There may be no video or audio output depending on the DP (DisplayPort) version of the PC. -
Page 17: Connecting Peripherals
Connecting Peripherals Connecting Headphones Connect peripherals to the monitor via the headphones port. NOTE • Peripheral devices are sold separately. • If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones. Angled Straight (Recommend) -
Page 18: User Settings
USER SETTINGS Button Menu Status Description Main menu disabled Enables the main menu. Enters the Menu feature. NOTE (Holding down the button to turn off the monitor. You can Main menu enabled • Your monitor’s OSD (On Screen Display) may differ turn off the monitor this way at any time, including when the slightly from that shown in this manual. -
Page 19: Main Menu Features
Main Menu Features Main Menu Description : Power Off Turns off the monitor. : Input Sets input mode. : Game Mode Sets the game mode for gaming. : Menu Configures the screen settings. : Exit Exits the main menu. -
Page 20: User Settings
User Settings Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu. Move the joystick up/down and left/right to set the options. To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it. - Page 21 Game Mode on SDR(Non-HDR)signal. Menu > Game Mode Description Gamer 1 In this mode, users can customize elements including game-related options. Gamer 1 and Gamer 2 picture modes allow you to save two sets of customized display settings, including game-related setup Gamer 2 options.
- Page 22 Game Mode on HDR signal. Menu > Game Mode Description Gamer 1 In this mode, users can customize elements including game-related options. Gamer 1 and Gamer 2 picture modes allow you to save two sets of customized display settings, including game-related setup Gamer 2 options.
- Page 23 Menu > Game Adjust Description Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal. CAUTION • Supported Interface: DisplayPort (Adaptive-Sync), HDMI (FreeSync Premium) • Supported Graphic Card : A graphic card that supports AMD’s FreeSync is necessary. FreeSync Premium / •...
- Page 24 This mode minimizes motion blur in fast-moving videos. To take full advantage of this function, select 1920 x 1080 @ 120Hz/144Hz before enabling Motion Blur Reduction. This function is available for the following vertical frequency. (120Hz/144Hz) Turns Motion Blur Reduction Mode off. Motion Blur Reduction Game Adjust NOTE...
- Page 25 Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Once Faster Mode is selected, Motion Blur may occur depending on the content. Response Time Faster Sets the response time to Faster.
- Page 26 Menu > Picture Adjust Description Brightness Adjusts the brightness of the screen. Contrast Adjusts the contrast of the screen. Sharpness Adjusts the sharpness of the screen. Mode 1, Mode 2, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.
- Page 27 Adjusts the brightness automatically according to the screen. Disables the DFC feature. Do you want to reset your picture settings? Picture Adjust Picture Reset Cancel the select. Returns to the default settings.
- Page 28 Menu > Input Description Input List Selects the input mode. Adjusts the aspect ratio of the screen. Full Wide Displays the video in widescreen, regardless of the video signal input. Original Displays video according to the aspect ratio of the video signal input. Aspect Ratio Input NOTE...
- Page 29 Menu > General Description Language Sets the menu screen to the desired language. User-defined Key 1 You can customise the main menu to access your preferred menu easily. User-definded Key 1 and User-definded Key 2 appear at the left/right of the main menu. User-defined Key 2 High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
- Page 30 Please set the Input Compatibility Version to match the version of the connected external device. 2.0/1.4 HDMI Input Compatibility If you want to use the HDR, select the Input Compatibility Version to 2.0 or 1.4. Version 1.4/1.2/1.1 DisplayPort If you want to use the HDR, select the Input Compatibility Version to 1.4 or 1.2 or 1.1. This feature lets you set the sound generated from Buzzer when your monitor powers on.
-
Page 31: Troubleshooting
Have you installed the display driver? • Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function. Some features are disabled. - Page 32 The screen retains an image. Does image sticking occur even when the • Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image. monitor is turned off? • To extend the lifetime of the monitor, use a screensaver. Screen display is unstable and shaky.
- Page 33 The display color is abnormal. Does the display appear discolored • Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Menu > Color Quality. (The settings (16 colors)? may differ depending on the operating system (OS) you use.) Does the display color appear unstable or •...
-
Page 34: Product Specification
PRODUCT SPECIFICATION 24GN65R LCD Screen Color Depth 8-bit / 10-bit color is supported. Resolution Max Resolution 1920 x 1080 @ 144 Hz Recommended Resolution 1920 x 1080 @ 144 Hz Power Sources Power Rating 19 V 1.6 A Power Consumption On mode: 28 W Typ. - Page 35 Dimensions Monitor Size (Width x Height x Depth) With Stand 540.8 x 551.1 x 291.2 (mm) 21.2 x 21.6 x 11.4 (inches) Without Stand 540.8 x 323.8 x 42.8 (mm) 21.2 x 12.7 x 1.6 (inches) Weight (Without Packaging) With Stand 5.6 kg (12.3 lbs) Without Stand 3.4 kg (7.4 lb)
- Page 36 PRODUCT SPECIFICATION 27GN65R LCD Screen Color Depth 8-bit / 10-bit color is supported. Resolution Max Resolution 1920 x 1080 @ 144 Hz Recommended Resolution 1920 x 1080 @ 144 Hz Power Sources Power Rating 19 V 2.0 A Power Consumption On mode: 32 W Typ.
- Page 37 Dimensions Monitor Size (Width x Height x Depth) With Stand 614.2 x 575.9 x 291.2 (mm) 24.1 x 22.6 x 11.4 (inches) Without Stand 614.2 x 364.8 x 51.7 (mm) 24.1 x 14.3 x 2.0 (inches) Weight (Without Packaging) With Stand 7.2 kg (15.8 lbs) Without Stand 5.1 kg (11.2 lbs)
- Page 38 PRODUCT SPECIFICATION 32GN55R LCD Screen Color Depth 8-bit / 10-bit color is supported. Resolution Max Resolution 1920 x 1080 @ 165 Hz Recommended Resolution 1920 x 1080 @ 165 Hz Power Sources Power Rating 19 V 2.0 A Power Consumption On mode: 38 W Typ.
- Page 39 Dimensions Monitor Size (Width x Height x Depth) With Stand 714.7 x 600.3 x 292.1 (mm) 28.1 x 23.6 x 11.5 (inches) Without Stand 714.7 x 428 x 50.9 (mm) 28.1 x 16.8 x 2.0 (inches) Weight (Without Packaging) With Stand 7.2 kg (15.8 lbs) Without Stand 5.1 kg (11.2 lbs)
-
Page 40: Factory Support Mode
Factory Support Mode (Preset Mode, HDMI/ DisplayPort PC) 24GN65R 27GN65R Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 76.302 800 x 600 37.879 60.317 1024 x 768 48.363 60.0 1024 x 768 97.551 1920 x 1080... - Page 41 32GN55R Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 76.302 800 x 600 37.879 60.317 1024 x 768 48.363 60.0 1024 x 768 97.551 1920 x 1080 67.50 1920 x 1080 84.36 74.99 HDMI 1.4...
-
Page 42: Hdmi Timing (Video)
HDMI Timing (Video) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Remarks 480P 31.5 720P 1080P 67.5 1080P Only HDMI 2.0 and HDMI Freesync Power LED Mode LED Color On Mode Red (For a few seconds) Sleep Mode (Standby Mode) Off Mode... -
Page 43: Beep Guide
Beep Guide Menu Location Menu Location Menu Location Game Mode 3 2 1 Game Adjust - Response Time Picture Adjust - Contrast Slider Game Mode - Gamer1 Game Adjust - Response Time - Faster 2 4 1 Picture Adjust - Sharpness Game Mode - Gamer2 Game Adjust - Response Time - Fast 2 4 2... - Page 44 Menu Location Menu Location Menu Location 3 6 3 Picture Adjust - Black Level - Low 3 8 2 General - Language - Swedish 5 1 6 Picture Adjust - R/G/B - Blue Slider Picture Adjust - DFC General - Language - Finnish 5 1 7 Picture Adjust - Six Color Picture Adjust - DFC - On...
- Page 45 Menu Location Menu Location General - User-defined Key 2 - Game General - Input Compatibility 5 3 2 5 8 1 Mode Version(HDMI) - 2.0 General - Input Compatibility General - User-defined Key 2 - Crosshair 5 3 3 5 8 2 Version(HDMI) - 1.4 General - User-defined Key 2 - Black 5 3 4...
- Page 46 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 E-mail lg.environmental@lge.com The model and serial number of the product are located on the back and on one side of the product.
