Online Commands
Automatic Scan
How to Proceed
5-54
Online commands are only supported by Modbus and not applicable for
PROFIBUS/PROFINET.
online only
Screen a connectable Node and upload the searched Node information.
Supports only Modbus Network Adapter.
In case of TCP/IP Communication Network Adapter, the following information is available:
■
IP Address, Subnet Mask, and GateWay Address in Network Adapter respectively
■
Number of IO modules and Model name.
In case of Serial Communication Network Adapter, the following information is available.
■
Com Port and Node Address in Network Adapter
■
Number of IO modules and Model name
Menu
Toolbar
Shortcuts
■
Automatic Scan – TCP/IP
1. Step 1. From Selection Option, choose 'TCP/IP' option button.
2. Step 2. From Scan, click 'Scan' button.
■

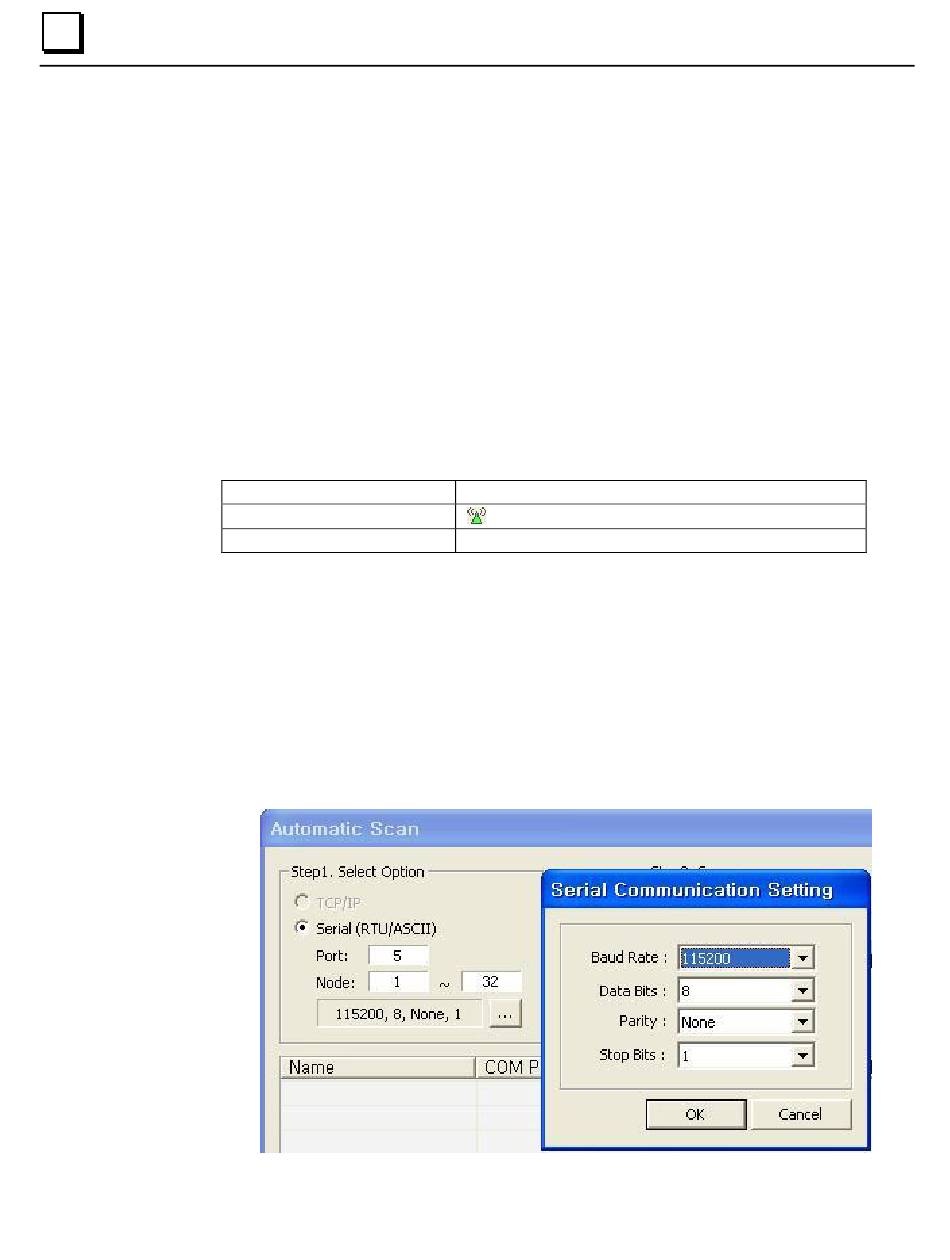

Automatic Scan – Serial
1. From 'Step 1. Selection Option', choose 'Serial (RTU/ASCII)' option button.
2. Set range of Port and Node for scanning.
Default Communication Parameter in Network Adapter has 9600, 8, None and 1.
Thus change occurs, check Serial Communication Parameter
RSTi Network Adapter Manual User Manual -January 2012
Online → Automatic Scan
Shift + S
GFK-2746
