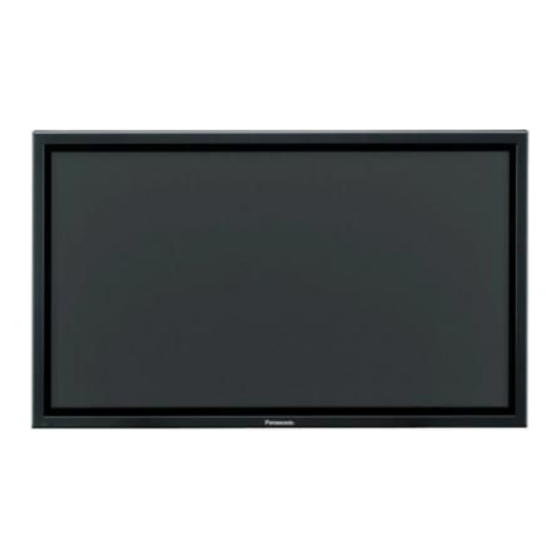

Panasonic TH-42PH20E Service Manual

High definition plasma display
Hide thumbs Also See for TH-42PH20E:

Advertisement

Quick Links

All manuals and user guides at all-guides.com
Service Manual
High Definition Plasma Display
A
1 Safety Precautions------------------------------------------------- 3
8 Disassembly and Assembly Instructions---------------- 20
2 W arning---------------------------------------------------------------- 4
3 Service Navigation------------------------------------------------- 6
4 S pecifications------------------------------------------------------- 9
5 Operating Instructions------------------------------------------ 10
6 Service M ode-------------------------------------------------------12
7 Troubleshooting Guide----------------------------------------- 16
Panasonic

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic TH-42PH20E

  • Page 1 Service Manual High Definition Plasma Display 1 Safety Precautions------------------------------------------------- 3 8 Disassembly and Assembly Instructions---------------- 20 2 W arning---------------------------------------------------------------- 4 3 Service Navigation------------------------------------------------- 6 4 S pecifications------------------------------------------------------- 9 5 Operating Instructions------------------------------------------ 10 6 Service M ode-------------------------------------------------------12 7 Troubleshooting Guide----------------------------------------- 16 Panasonic...
  • Page 2 All manuals and user guides at all-guides.com 9 Measurements and Adjustm ents------------------------- 14 Exploded View and Replacement Parts List------------93 10 Block Diagram --------------------------------------------------- 11 Wiring Connection Diagram--------------------------------- 12 Schematic Diagram--------------------------------------------- 13 Printed Circuit Board...
  • Page 3 All manuals and user guides at all-guides.com Note: Measuring network for TOUCH CURRENTS _ L Cs= 0.22| 1 - ------- 500Q = 0 .022| j F ( V ) ---------------...
  • Page 4 All manuals and user guides at all-guides.com Caution...
  • Page 5 All manuals and user guides at all-guides.com Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb w ill refer to Lead solder, and PbF w ill refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
  • Page 6 All manuals and user guides at all-guides.com...
  • Page 7 All manuals and user guides at all-guides.com Note:...
  • Page 8 All manuals and user guides at all-guides.com Video inp ut (VIDEO)
  • Page 9 All manuals and user guides at all-guides.com...
  • Page 10 All manuals and user guides at all-guides.com...
  • Page 11 All manuals and user guides at all-guides.com GPH13D chassis series have special function and operation setting facility called Option Menu. This Option Menu is use­ ful for special function required customers. This should be set at the installation stage. Note:...
  • Page 12: Iic Mode

    All manuals and user guides at all-guides.com < AUTO ASPECT OFFTlltR SFRIP □ POSJSIZE PICTURE SOUND SETUP Volume down - button ~ ~ t T --------г -------- R " O^r-vO- RECALL button CAT mode ID mode 6.1.1. IIC mode Up/Down button Action button Subject Up/Down...
  • Page 13 All manuals and user guides at all-guides.com 6.1.2. CD mode Up/Down button Mute button MON ITOR-MCU MONITOR-EEPROM MONITOR-EEPROM Change Addr Data PANEL-MCU PANEL-EEPI EEPROM PANEL-DCC PANEL-PDROM SLOT BOARD EEPROM SLOT BOARD — PTCT Up/Down buttons Left/Right buttons VOL Up/Down buttons R button 6.1.3.
  • Page 14 All manuals and user guides at all-guides.com 6.1.4. MS mode Up/Down button Mute button 5 6 . 0 1 M a rk e t s e l e c t г R button Caution: Market Select should be set after exchange of DN-Board. Destination number 6.1.5.
  • Page 15 All manuals and user guides at all-guides.com...
  • Page 16: Display Indication

    All manuals and user guides at all-guides.com 7.1.1. Display Indication volume down OFF-TIMER Note:...
  • Page 17: Power Led Blinking Timing Chart

    All manuals and user guides at all-guides.com 7.1.2. Power LED Blinking timing chart About blinking LED ш — Щ Щ Щ...
  • Page 18 All manuals and user guides at all-guides.com...
  • Page 19 All manuals and user guides at all-guides.com...
  • Page 20 All manuals and user guides at all-guides.com...
  • Page 21 All manuals and user guides at all-guides.com Note:...
  • Page 22 All manuals and user guides at all-guides.com...
  • Page 23 All manuals and user guides at all-guides.com...
  • Page 24: Removal Of Front Glass

    All manuals and user guides at all-guides.com 8.15.1. Removal of Front Glass Note: when fixing fixed Angle (upper-rear, bottom- rear) Note: when Front Glass is exchanged Note: when fixing Handle Fixing Metal (L, R) Note...
  • Page 25 All manuals and user guides at all-guides.com 8.15.2. Removal of V1-Board and V2-Board 8.15.3. Removal of Cabinet Assy...
  • Page 26 All manuals and user guides at all-guides.com The C1, C2 Boards are connected with the plasma display panel for the repair.
  • Page 27 All manuals and user guides at all-guides.com r > j » . n » n , i-m , n « r^.mj Ш Щ Щ Note: when fixing Handle Fixing Metal (L, R)
  • Page 28 All manuals and user guides at all-guides.com 9.1.1. Vsus selection Caution: Procedure Volume down / - button RECALL button V su s se le c tio n in IIC m ode...
  • Page 29: Rgb White Balance Adjustment

    All manuals and user guides at all-guides.com 9.2.1. RGB white balance adjustment...
  • Page 30 All manuals and user guides at all-guides.com...
  • Page 31 All manuals and user guides at all-guides.com 9.2.2. YUV white balance adjustment...
  • Page 32 All manuals and user guides at all-guides.com...
  • Page 33: Block Diagram

    All manuals and user guides at all-guides.com 10 Block Diagram 10.1. Main Block Diagram...
  • Page 34 All manuals and user guides at all-guides.com...
  • Page 35: Block (2 Of 5) Diagram

    All manuals and user guides at all-guides.com 10.3. Block (2 of 5) Diagram...
  • Page 36: Block (3 Of 5) Diagram

    All manuals and user guides at all-guides.com 10.4. Block (3 of 5) Diagram...
  • Page 37: Block (4 Of 5) Diagram

    All manuals and user guides at all-guides.com 10.5. Block (4 of 5) Diagram...
  • Page 38: Block (5 Of 5) Diagram

    All manuals and user guides at all-guides.com 10.6. Block (5 of 5) Diagram...
  • Page 39 All manuals and user guides at all-guides.com © © © © © (D (D © © © © © © © © © © • • • • I I I I I I I I I I I I I I I I I I I •...
  • Page 40 All manuals and user guides at all-guides.com...
  • Page 41 All manuals and user guides at all-guides.com Notes: R e sisto r C a p a cito r ( / )
  • Page 42 All manuals and user guides at all-guides.com R em arks:...
  • Page 43 All manuals and user guides at all-guides.com...
  • Page 44 All manuals and user guides at all-guides.com...
  • Page 45: P-Board (3 Of 4) Schematic Diagram

    All manuals and user guides at all-guides.com 12.4. P-Board (3 of 4) Schematic Diagram...
  • Page 46: P-Board (4 Of 4) Schematic Diagram

    All manuals and user guides at all-guides.com 12.5. P-Board (4 of 4) Schematic Diagram...
  • Page 47 All manuals and user guides at all-guides.com 12.6. HX, V1, V2 and S1-Board Schematic Diagram...
  • Page 48: Ds-Board (1 Of 2) Schematic Diagram

    All manuals and user guides at all-guides.com 12.7. DS-Board (1 of 2) Schematic Diagram...
  • Page 49 All manuals and user guides at all-guides.com C0DBAYY00727 SOS BLOCK...
  • Page 50: Ds-Board (2 Of 2) Schematic Diagram

    All manuals and user guides at all-guides.com 12.8. DS-Board (2 of 2) Schematic Diagram...
  • Page 51 All manuals and user guides at all-guides.com 12.9. A-Board (1 of 16) Schematic Diagram...
  • Page 52 All manuals and user guides at all-guides.com 12.10. A-Board (2 of 16) Schematic Diagram...
  • Page 53 All manuals and user guides at all-guides.com 12.11. A-Board (3 of 16) Schematic Diagram <13-...
  • Page 54 All manuals and user guides at all-guides.com 12.12. A-Board (4 of 16) Schematic Diagram...
  • Page 55 All manuals and user guides at all-guides.com 12.13. A-Board (5 of 16) and H3-Board Schematic Diagram...
  • Page 56 All manuals and user guides at all-guides.com 12.14. A-Board (6 of 16) Schematic Diagram...
  • Page 57 All manuals and user guides at all-guides.com 12.15. A-Board (7 of 16) Schematic Diagram...
  • Page 58 All manuals and user guides at all-guides.com 12.16. A-Board (8 of 16) Schematic Diagram...
  • Page 59 All manuals and user guides at all-guides.com 12.17. A-Board (9 of 16) Schematic Diagram...
  • Page 60 All manuals and user guides at all-guides.com 12.18. A-Board (10 of 16) Schematic Diagram...
  • Page 61 All manuals and user guides at all-guides.com 12.19. A-Board (11 of 16) Schematic Diagram (A 3 SCX1 VDD18(1.8V)
  • Page 62 All manuals and user guides at all-guides.com 12.20. A-Board (12 of 16) Schematic Diagram...
  • Page 63 All manuals and user guides at all-guides.com 12.21. А-Board (13 of 16) Schematic Diagram SCX1_LVDS...
  • Page 64 All manuals and user guides at all-guides.com...
  • Page 65 All manuals and user guides at all-guides.com 12.22. A-Board (14 of 16) Schematic Diagram...
  • Page 66 All manuals and user guides at all-guides.com 12.23. A-Board (15 of 16) Schematic Diagram...
  • Page 67 All manuals and user guides at all-guides.com 12.24. A-Board (16 of 16) Schematic Diagram Q9900 9 ls Q9901 и - 2 _ I I a I C2-BOARD (C21) S 1 } § = , 1 *, i = , 1 6 §...
  • Page 68: C1 -Board Schematic Diagram

    All manuals and user guides at all-guides.com 12.25. C1 -Board Schematic Diagram...
  • Page 69 All manuals and user guides at all-guides.com...
  • Page 70: C2-Board Schematic Diagram

    All manuals and user guides at all-guides.com 12.26. C2-Board Schematic Diagram...
  • Page 71 All manuals and user guides at all-guides.com 12.27. SN-Board (1 of 9) Schematic Diagram P-BOARD...
  • Page 72 All manuals and user guides at all-guides.com 12.28. SN-Board (2 of 9) Schematic Diagram...
  • Page 73 All manuals and user guides at all-guides.com 12.29. SN-Board (3 of 9) Schematic Diagram...
  • Page 74 All manuals and user guides at all-guides.com 12.30. SN-Board (4 of 9) Schematic Diagram IPVSCN C0DBEYY00114 C0CBADE00049 I SHUNT REG I €■ >...
  • Page 75 All manuals and user guides at all-guides.com 12.31. SN-Board (5 of 9) Schematic Diagra ш\ • • Ш ■ E Isi Is 18 B E l U i l i s U i § a 4 ■ 4 1 i l i l i т...
  • Page 76 All manuals and user guides at all-guides.com 12.32. SN-Board (6 of 9) Schematic Diagram...
  • Page 77 All manuals and user guides at all-guides.com 12.33. SN-Board (7 of 9) Schematic Diagram г1 1 Р " Ц |ш :: ш? 1 ш ш ^ s а ![ ![ l[ I I ![ ![ I | i f ![ Ц I ![ ![ Ц f | ![ I l| l[ I I i f ![ if if if If If If if If if I l| if If I f I f If If if If If If Is Is Is Is Is Is Is le Is 1: Is lg Ij lg lg 1= lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg lg| B 1 B 2...
  • Page 78 All manuals and user guides at all-guides.com 12.34. SN-Board (8 of 9) Schematic Diagram Ш ! Ш i l i Ш Ш £ a Is l a is s s в Is lg E lg g Ijj 1 I s I s 1| ■...
  • Page 79 All manuals and user guides at all-guides.com 12.35. SN-Board (9 of 9) Schematic Diagram...
  • Page 80: Ss-Board (1 Of 2) Schematic Diagram

    All manuals and user guides at all-guides.com 12.36. SS-Board (1 of 2) Schematic Diagram P-BOARD (P11)
  • Page 81: Ss-Board (2 Of 2) And Ss2-Board Schematic Diagram

    All manuals and user guides at all-guides.com 12.37. SS-Board (2 of 2) and SS2-Board Schematic Diagram PANEL SUSTAIN ELECTRODE PANEL SUSTAIN ELECTRODE...
  • Page 82 All manuals and user guides at all-guides.com P-BOARD (FOIL SIDE) LSEP1288LMHB С...
  • Page 83: Parts Location

    All manuals and user guides at all-guides.com Parts Location...
  • Page 84 All manuals and user guides at all-guides.com Parts Location...
  • Page 85 All manuals and user guides at all-guides.com P-BOARD (COMPONENT SIDE) LSEP1288LMHB...
  • Page 86 All manuals and user guides at all-guides.com .2. HX-Board HX-BOARD (FOIL SIDE) TZTNP021AEE...
  • Page 87 All manuals and user guides at all-guides.com HX-BOARD (COMPONENT SIDE) TZTNP021AEE Л TNPA5110 C R N O 3 D D 0 Pb FJ ------ > » J 4 * < --- J K 5 1 1 J K 5 0 9...
  • Page 88 All manuals and user guides at all-guides.com 13.3. S1 and H3-Board МЛ, М2, V2-B0ARD(F0IL SIDE) TNPA5163 V2-B0ARD(C0MP0NENT SIDE) TNPA5163 V1-B0ARD(F0IL SIDE) V1-B0ARD(C0MP0NENT SIDE) TNPA5162 TNPA5162 S1-B0ARD(F0IL SIDE) S1-BOARD(COMPONENT SIDE) TNPA5164 TNPA5164...
  • Page 89 All manuals and user guides at all-guides.com Ш H3-B0ARD(F0IL SIDE) H3-B0ARD(C0MP0NENT SIDE) TNPA5111 TNPA5111 *— * Ш 3|H37|1 Щ...
  • Page 90 All manuals and user guides at all-guides.com 13.4. DS-Board В С...
  • Page 91 All manuals and user guides at all-guides.com DS-BOARD (COMPONENT SIDE) TZTNP031CEE...
  • Page 92 All manuals and user guides at all-guides.com 13.5. A-Board A-BOARD (FOIL SIDE) TZTNP011AEE...
  • Page 93 All manuals and user guides at all-guides.com...
  • Page 94 All manuals and user guides at all-guides.com 13.6. C1-Board C1-BOARD (FOIL SIDE) TXNC111BEK C1-BOARD (COMPONENT SIDE) TXNC111BEK...
  • Page 95 All manuals and user guides at all-guides.com C2-BOARD (FOIL SIDE) TXNC211BEK C2-BOARD (COMPONENT SIDE) TXNC211BEK 1 71 О * ф □ li :□ h - t ic.1 2° . iz a...
  • Page 96 All manuals and user guides at all-guides.com...
  • Page 97 All manuals and user guides at all-guides.com...
  • Page 98 All manuals and user guides at all-guides.com А В...
  • Page 99 All manuals and user guides at all-guides.com SS-BOARD (FOIL SIDE) TXNSS11BEK C R N o . 1 6 □ □ □ TN P A 5 0 7 2 (T) [SS| рь 1 1 i x 1 i X X I X X X ' П...
  • Page 100 All manuals and user guides at all-guides.com...
  • Page 101 All manuals and user guides at all-guides.com SS-BOARD (COMPONENT SIDE) TXNSS11BEK...
  • Page 102: Replacement Parts List Notes

    All manuals and user guides at all-guides.com Please click the radio button for “ Diagrams ll/Parts List” on the menu bar. 14.2.1. Replacement Parts List Notes RTL (R etention Tim e L im ited ) Note:...
  • Page 103: Electrical Replacement Parts List

    All manuals and user guides at all-guides.com 14.2.2. Electrical Replacement Parts List Note: Safety Ref. Part No. Part Name & Remarks Description Safety Ref. Part No. Part Name & Remarks C111 ECJ1VB1H102K 1000PF, K, Description C113 F1J1E225A209 2.2 UF LSEP1288LMHB CIRCUIT BOARD P (RTL) C114...
  • Page 104 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C616 ECJ1VB1H103K C 0.001UF, K, C2309 F1J1E105A231 1 UF C617 ECJ1VB1H103K C 0.001UF, K, C2310 F1G1H102A730 1000UF, C2311...
  • Page 105 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C2387 F1J1A106A087 C 0.010UF, K, C3004 F1H1H103A970 C 0.001UF, K, C2388 F1G1C104A116 0.10UF, K, C3005 F1H1C105A145 0.01UF, K, C2389...
  • Page 106 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C3202 F1G1H10 3A735 0.01UF, C3259 F1G1C104A116 0.10UF, K, C3204 F2G1C470A022 47UF, C3261 F1K1C106A126 10UF, C3205 F1G1C104A116 0.10UF, K, C3262...
  • Page 107 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C4032 F1G1C104A116 0.10UF, K, C4209 F1G1C104A116 0.10UF, K, C4034 F1G1C104A116 0.10UF, K, C4210 F1G1C104A116 0.10UF, K, C4035 F1H0 J475A041 4.7UF, K, 16V...
  • Page 108 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C4404 F1G1C104A116 0.10UF, K, C4515 F1G1C104A116 0.10UF, K, C4405 F1G1C104A116 0.10UF, K, C4517 F1G1C104A116 0.10UF, K, C4406 F1G1C104A116 0.10UF, K,...
  • Page 109 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C4565 F1G1C104A116 0.10UF, K, C4631 F1G1C104A116 0.10UF, K, C4567 F1G1C104A116 0.10UF, K, C4632 F1G1C104A116 0.10UF, K, C4569 F1G1C104A116 0.10UF, K,...
  • Page 110 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C4964 F1H1C104A144 0.1UF, K, 16V C9315 F1G1C104A116 0.10UF, K, C4965 F1H1C105A145 0.01UF, K, C9316 F1J1A10 6A087 C 0.010UF, K, C4966 F1K1E106A136...
  • Page 111 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C9815 F1K0J226A008 22UF, K,6.3V C16101 F1L2J1020001 1000UF, K,6.3V C9816 F1H1E104A129 0.1UF, C16102 F1L2J562A022 5600UF, C9817 F1J1A106A087 C 0.010UF, K, K,6.3V...
  • Page 112 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description C16602 F1H1H220A971 22PF, K, 50V C17208 ECJ1VB1A105K 0.01UF, Z, C16603 F1K2J102A014 1000UF, 6.3V C17209 ECJ1VB1A105K 0.01UF, Z, C16604 F1K2J102A014...
  • Page 113 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description DZ2J039M0L DZ2J056M0L D1554 ZENER DIODE PAVCCZ D4374 ZENER DIODE D2301 B0BC03200003 ZENER DIODE D4663 MA152K DIODE D2302 B0BC03200003...
  • Page 114 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description TAXA0024 D16522 B0ECHR000001 DIODE FL3512 LC FILTER D16534 B0ECHR000001 DIODE FL3513 TAXA0024 LC FILTER D16536 B0ECHR000001 DIODE FL3514...
  • Page 115 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description IC4281 C0JBAA000377 ERJ6GEY0R00V 0 OHM J 1/10W IC4282 C0JBAB000715 ERJ6GEY0R00V 0 OHM J 1/10W IC4301 C1ZBZ0003985 ERJ6GEY0R00V 0 OHM J 1/10W...
  • Page 116 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description L4087 J0JYC0000068 CHIP INDUCTOR K1KA03A00608 3P CONNECTOR L4101 J0JYC0000068 CHIP INDUCTOR K1KA10AA0082 10P CONNECTOR L4102 J0JYC0000068 CHIP INDUCTOR K1KA03AA0193...
  • Page 117 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description Q3004 DSC200100L TRANSISTOR Q9900 DSC200100L TRANSISTOR Q3005 B1DHDC000028 TRANSISTOR Q9901 DSC200100L TRANSISTOR Q3006 DSC200100L TRANSISTOR Q16001 B1JBEN000002 TRANSISTOR...
  • Page 118 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R115 D0BF6R8JA035 6.8OHM,J, R302 ERJ8GEYJ220V 22 OHM, J,1/ 0.5W R116 ERJ8GEYJ153 15KOHM, J,1/ R303 ERJ8GEYJ220V 22 OHM, J,1/ R117 ERJ8GEYJ153...
  • Page 119 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R623 ERJ3GEYJ104 M 100KOHM,J,1/ R733 ERJ6GEYJ4R7 M 4.7 OHM,J,1/ R624 ERJ6GEY0R00V 0 OHM J 1/10W R734 ERJ6GEYJ101V M 100 OHM,J,1/...
  • Page 120 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R788 ERJ 6GEYJ101V M 100 OHM,J,1/ R927 ERJ6ENF2003 M 200KOHM, R789 ERJ3GEYJ334 M 330KOHM,J,1/ R928 ERJ6ENF2202 M 2.2KOHM, R790...
  • Page 121 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R2352 D1BB2322A055 M23.2KOHM, R2431 D0GA101JA015 M 100 OHM, J,0.063W R2354 D1BB2322A055 M23.2KOHM, R2432 D0GB102JA041 1KOHM,J,1/ R2356 D1BB2322A055 M23.2KOHM,...
  • Page 122 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R3015 ERJ6GEY0R00V 0 OHM J 1/10W R3109 D0GB473JA057 47KOHM,J, 1/ R3016 D0GB104JA041 M 100KOHM J 1/ R3110 ERJ3GEYJ223 22KOHM,J,1/...
  • Page 123 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R3230 D0GB560JA041 OHM,J,1/ R3296 D0GB102JA041 1KOHM,J,1/ R3231 D0GB560JA041 OHM,J,1/ R3400 ERJ6GEYJ103V 10K OHM J 1/ R3232 D0GA272JA015 M 2.7KOHM,...
  • Page 124 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R4022 D0GA101JA015 M 100 OHM, R4109 D0 GA4 73 JA015 M 47KOHM, J,0.063W J,0.063W R4023 D0GA47 3JA015 M 47KOHM, R4111...
  • Page 125 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R4237 D0GA470JA015 M 47 OHM, R4315 D0GA101JA015 M 100 OHM, J,0.063W J,0.063W R4238 D0GA272JA015 M 2.7KOHM, R4316 D0GAR00Z0001 0 OHM,...
  • Page 126 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R4378 D0GAR00Z0001 0 OHM, R4455 D1BB3300A055 M 330 OHM, 0.063W R4381 ERJ2GEJ102X 1KOHM, R4456 D1BB1270A055 127 OHM, 1/ PAVCCZ J,0.063W...
  • Page 127 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R4622 D1BA1001A014 1KOHM, R4708 ERJ2GEJ103 10KOHM, 0.063W J,0.063W R4623 D0GA101JA015 M 100 OHM, R4709 D0GA101JA015 M 100 OHM, J,0.063W J,0.063W...
  • Page 128 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R4757 D0GA272JA015 M 2.7KOHM, R4831 ERJ2GEJ103 10KOHM, J,0.063W J,0.063W R4758 D0GA101JA015 M 100 OHM, R4834 EXB38VR000V RESISTOR ARRAY J,0.063W...
  • Page 129 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R4922 D1BA1912A014 M1.91KOHM, PAVCCZ R9072 ERJ2GEJ103 10KOHM, 0.063W J,0.063W R4923 D0GA154JA015 M 150KOHM J R9104 EXB38V101JV RESISTOR ARRAY 0.063W...
  • Page 130 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description M 56KOHM, R9206 D0GA563JA015 R9871 ERJ2GEJ103 10KOHM, J,0.063W J,0.063W R9207 D0GA243JA015 M 24K OHM J PAVCCZ R9872 D1BB3301A055...
  • Page 131 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R14965 ERJ6GEYJ331V 330 OHM J 1/ R16319 ERJ6RBD242 M 2.4KOHM,J,1/ R14973 EXB38V470J RESISTOR ARRAY R16320 ERJ14YJ683 68KOHM, 1/2W...
  • Page 132 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R16531 ERJT06J100V R16674 ERJT08J102V 1KOHM,J, OHM,F,0.25W 0.33W R16533 D0GB473JA057 47KOHM,J,1/ R16675 ERJ3GEYJ472 M 4. 7KOHM,J, 1/ R16534 ERJT08J5R6V M 5.6...
  • Page 133 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Safety Ref. Part No. Part Name & Remarks Description Description R16802 ERJ6RBD3322 M33.2KOHM,F,1/ PAVCCZ R16934 D1BB6801A055 M 6.8KOHM, R16804 ERJ8GEYJ112 M 1.1KOHM, J,1/ R16935 ERJ6GEYJ512 M 5.1KOHM,J,1/ R16822 ERJ6ENF8202...
  • Page 134 All manuals and user guides at all-guides.com Safety Ref. Part No. Part Name & Remarks Description K1KY03BA0236 3P CONNECTOR SS11 K1KY03B00006 3P CONNECTOR SS23 K1KY06AA0719 6P CONNECTOR SS53A K1MY13BA0376 13P CONNECTOR PAVCCZ SS55A K1MY13BA0376 13P CONNECTOR PAVCCZ А SW061 K0F162B00002 SWITCH SW1550 EVQPLHA15...
  • Page 135 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Important Safety Notice...
  • Page 136 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Exploded View...
  • Page 137 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Cabinet part location...
  • Page 138 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Fan part location...
  • Page 139 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Flat cable...
  • Page 140 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Packing and Accessories (1)
  • Page 141 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Packing (2)
  • Page 142: Parts List

    All manuals and user guides at all-guides.com Model No. : TH-42PH20E Parts List R e f . Safety Part No. Part Name & Description Q'ty Remarks K2CN3YY00004 AC CORD K2CT3YY0 0 016 AC CORD & L6FAYYYH0095 FAN(80MM-T25) MD42H13C2Z PLASMA DISPLAY PANEL 1 PAVCCZ &...
  • Page 143 All manuals and user guides at all-guides.com Model No. : TH-42PH20E Parts List R e f . Safety Part No. Part Name & Description Q'ty Remarks TQB0E0 9 93B-G INSTRUCTION BOOK (DUTCH) 1 PAVCCZ TQB0E0 9 93C-G INSTRUCTION BOOK (ITALIAN)

Table of Contents
