Magicfx CO2 Dominator User Manual

Hide thumbs Also See for CO2 Dominator:
Table of Contents

Advertisement

Quick Links

Download this manual
PRODUCTCODE
VERSION
DATE
: MFX1150
: 1.1
: 03.06.2012

Advertisement

Table of Contents
loading

Related Manuals for Magicfx CO2 Dominator

Summary of Contents for Magicfx CO2 Dominator

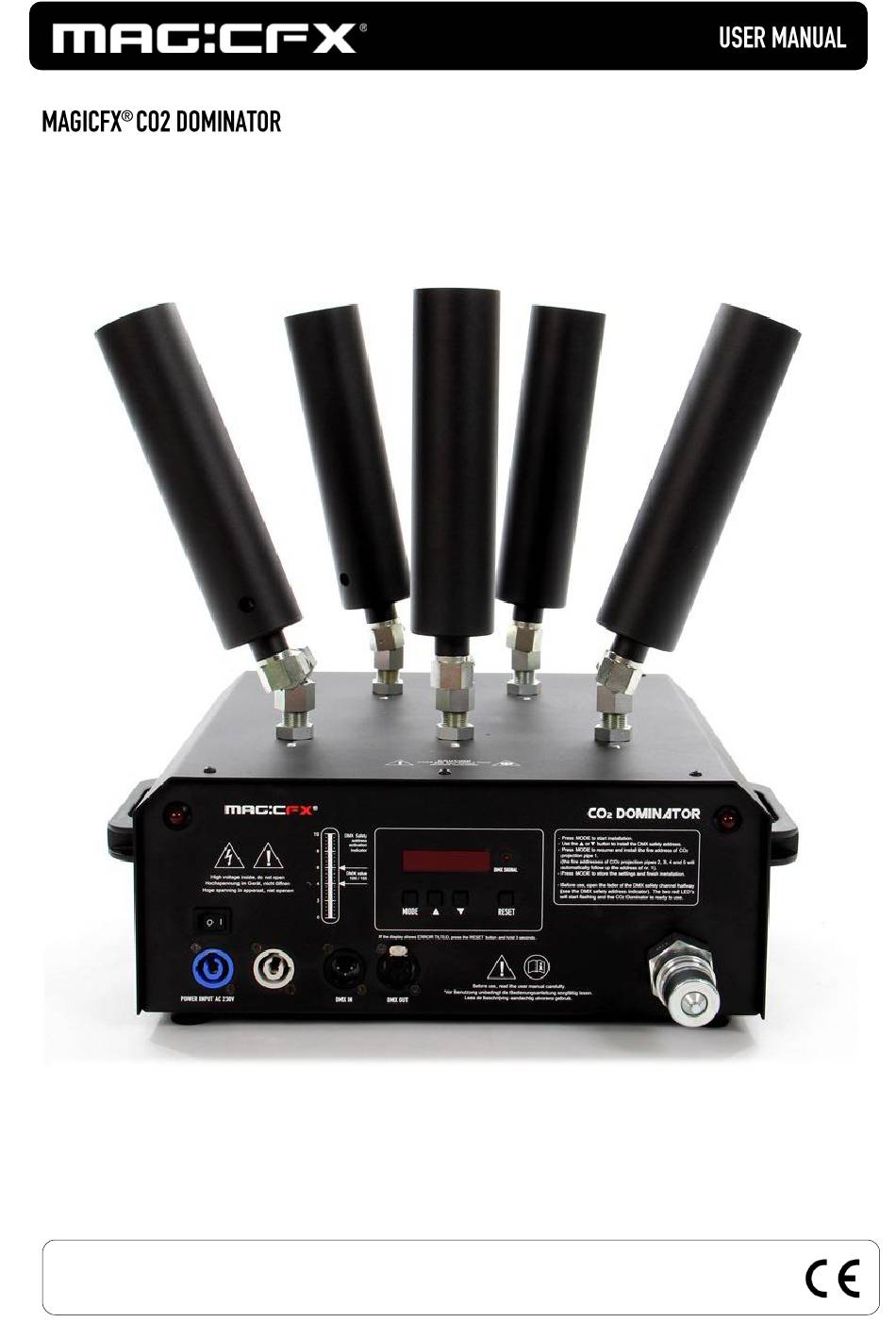

  • Page 1 PRODUCTCODE : MFX1150 VERSION : 1.1 DATE : 03.06.2012...

  • Page 2: Congratulations

    Directive. MAGIC FX handles the entire production in-house from concept to finished product. We take care of the design, prototyping and manufacturing process. MAGICFX® products are used by special effects professionals around the world and distributed by a dealer network across more than 80 countries.

  • Page 3: Ce Marking

    Unauthorized removal of safety covers and/or safety devices. Improper use of the machine. MAGIC FX B.V. is not liable for any damages due to failures of the CO2 Dominator. © Copyright 2012 All rights reserved. No part of this manual may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise without the prior written permission of MAGIC FX B.V.

  • Page 4: Declaration Of Conformity

    User Documentation MAGICFX® CO2 Dominator 3. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY (according to Annex IIA of the Machinery Directive) With respect to the Machinery Directive. MAGIC FX B.V. Industrieweg 16 5281 RW Boxtel The Netherlands Hereby declares under our sole responsibility: We are the manufacturer of the product: ®...

  • Page 5: Foreword

    This manual provides pertinent information about the MAGICFX® CO2 Dominator. The information in this manual is important with respect to the proper and safe operation of the CO2 Dominator. If you are not familiar with the installation, operation, preventive maintenance, etc., of the CO2 Dominator then read this manual in its entirety.

  • Page 6: Table Of Contents

    CE MARKING ....................2 DECLARATION OF CONFORMITY ..............3 FOREWORD ....................4 INTRODUCTION ....................6 DESCRIPTION OF THE CO2 DOMINATOR AND ITS USAGE ..........6 NECESSARY ACCESSORIES ....................6 SAFETY ......................7 INTRODUCTION ........................7 GENERAL SAFETY RULES ....................7 WARNINGS ..........................

  • Page 7: Introduction

    The CO2 Dominator is a device specifically designed for producing cryogenic fog plumes as a special effect on a stage. The CO2 Dominator is intended solely to be placed on a flat surface or stage and produce brief upward cryogenic fog plumes of CO2.

  • Page 8: Safety

    Ensure that the CO2 Dominator is not accessible to children, unauthorized persons, or animals! Do not touch the CO2 Dominator when it is operational or turned on. Even if the device is not in operation it might be ready to activate.
  • Page 9 Version 1.1 Icon Explanation A warning for danger from a cold surface must be indicated using the PIC 323 icon. This is located on the top of the CO2 Dominator. PIC 323 Low temperature Page 8...

  • Page 10: Parts

    User Documentation MAGICFX® CO2 Dominator 7. PARTS 12 13 1. Power on/off switch 8. MENU button 2. DMX input 9. UP button 3. DMX output 10. DOWN button 4. Powercom input 11. RESET button 12. Warning Led’s 5. Powercon output 6.

  • Page 11: Accessories

    E. info@magicfx.eu 9. PREPARATION FOR USE Unpack the CO2 Dominator. Dispose of packaging material without causing harm to the environment. Check the device for any possible damage. You must report any damage to the device to MAGIX FX. Page 10...

  • Page 12: Installing

    This indicates that the equipment may be damaged if procedures are not carried out in the proper manner. DANGER WARNING: The MAGICFX® CO2 Dominator may only be installed by authorized adults. Prepare the CO2 Dominator for use as follows: Place the CO2 Dominator on a flat and stable surface.
  • Page 13 Version 1.1 Connect a 3 pin DMX cable to theCO2 Dominator. If preffered you can connect a next unit by connecting another 3 pin DMX cable to the DMX out connector. Connect the other side of the DMX cable (the male plug) to a professional DMX controller.
  • Page 14 Push the Power Switch in the ONN position to switch on the CO2 Dominator. Now that the CO2 Dominator is connected well and safely, the machine can be installed.

  • Page 15: Usage

    DANGER WARNING: The MAGICFX® CO2 Dominator may only be operated by authorized adults. The CO2 Dominator may only be operated if all parts are entire and in good working order and properly connected/installed. Page 14...
  • Page 16 Make sure that the area around the CO2 Dominator will be free of persons, animals and objects before using. Keep clear sight on the CO2 Dominator and if someone enters the safety area, shut down the unit by closing the safety channel immediately.

  • Page 17: Turning Off

    Version 1.1 12. TURNING OFF Turn off the CO2 Dominator as follows: Close the CO2 bottles. Activate the CO2 Dominator one more time to remove all the remaining CO2 and pressure out of the hoses. When there is no gas / pressure left in the hoses, disconnect them from the distribution block.
  • Page 18 User Documentation MAGICFX® CO2 Dominator Disconnect the CO2 Dominator from the power supply. Page 17...

  • Page 19: Troubleshooting

    0,5 Kg/s (1.1 lbs/s) 15. MAINTENANCE To prolong the life of the CO2 Dominator for as long as possible, you must regularly clean it and test that it functions properly. Regardless of the reason, contact MAGIC FX if the CO2 Dominator does not work properly DANGER WARNING: Never replace parts yourself.
