Labelmate RRC-330 Quick Start Manual

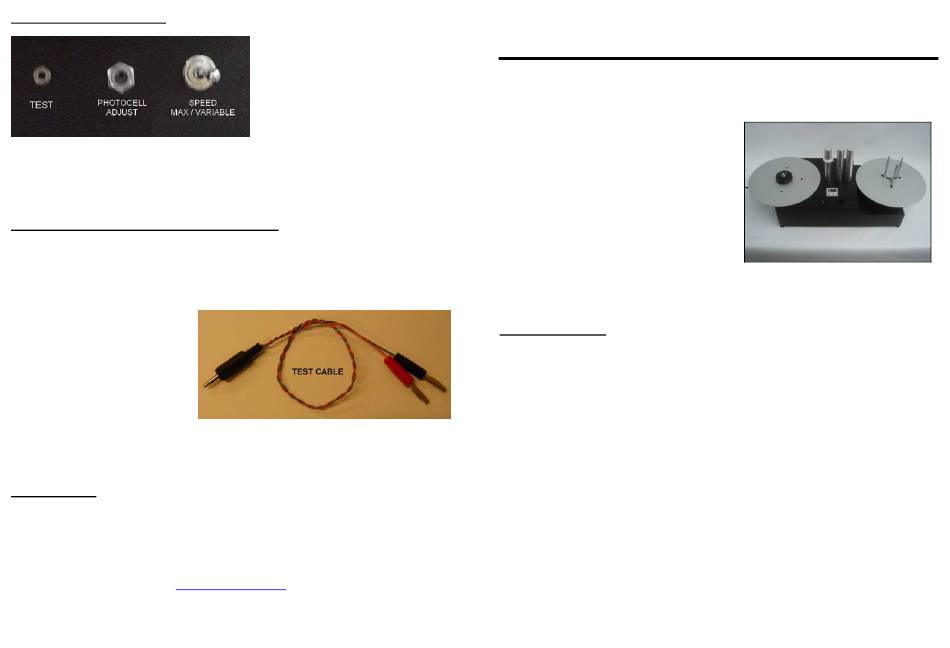

LEFT SIDE CONTROL PANEL:
is about 10% lower than the speed obtained in the "MAX" Speed position of the Speed
Switch. When the printing is correct, the unit can be used at MAX. Speed at all times.
PHOTOCELL ADJUST: Potentiometer.
TEST: Connector
ADJUSTING THE LABEL DETECTOR PHOTOCELL:
The label detector photocell has been adjusted at the factory (potentiometer fully CCW)
and requires no adjustment for a large variety of labels. However, some specific labels
(very transparent or relatively opaque backing paper) might require adjustment of the
photocell.
Using a voltmeter, you can do a
more accurate adjustment of the
photocell. Connect the provided test
cable to the "TEST" connector on
the side of the machine and
connect the leads to a DC voltmeter
with a range of +/- 20V. Load a roll
of labels on the machine, and
position the backing paper in front
of the photocell. Make sure that the labels are tensioned when doing the test. Set the
voltage with the potentiometer to around 5V, now put a label in front of the photocell; the
voltage should now be 10V or more. The reference voltage in the machine is set at 7.5V,
below 7.5V the machine sees no label, and above 7.5V the machine sees a label.
MAINTENANCE:
Your RRC-330 requires no maintenance.
LABELMATE LLC
69 AVENUE ALPHONSE XIII, 1180 BRUSSELS, BELGIUM
TEL: +322.375.69.60 – FAX: +322.375.38.96
brussels@labelmate.com
www.labelmate.com
© LABELMATE – User_RRC-330 – 09/10
SPEED VARIABLE or MAXIMUM: A
two (2) position Selector Switch allows
the user to select maximum (MAX)
speed (not adjustable) or adjustable
speed set by the front panel Speed
Control Knob. The maximum speed in
the "VARIABLE" position with the
SPEED potentiometer fully clockwise

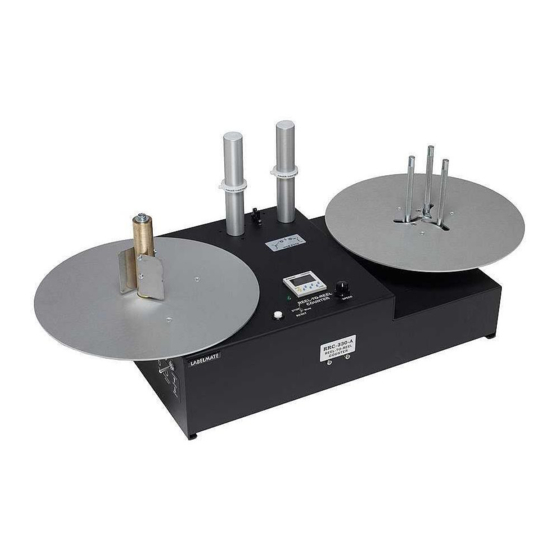

RRC-330
Reel-to-Reel Counter
•
Variable Speed Control
•
6-Digit Digital Pre-set Counter
•
330mm (13") Roll Diameter
Remove all parts from the shipping container and verify contents.
Package Contents
•
User Manual (this document)
•
RRC-330 Unit
•
Power Supply Module
•
Separate User Manual for Counter Unit
Retain the Shipping Container and Packaging for Storage and Transport
● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●
