Sealey IWMH1555 Instructions

Thank you for purchasing a Sealey product. manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ ThESE INSTRUCTIONS CAREFULLY. NOTE ThE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS.
USE ThIS PRODUCT CORRECTLY, AND WITh CARE FOR ThE PURPOSE FOR WhICh IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE ThE WARRANTY.
1. SAFETY INSTRUCTIONS
1.1 ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:

You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also
recommend that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are
plugged into a supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual
Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1 and 1.1.2
and use a Portable Appliance Tester.
1.1.4 Ensure that cables are always protected against short circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs etc. for wear or damage and check all connections to ensure that none are loose.
Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that a correctly rated fuse is fitted.
1.1.6
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified
electrician.
1.1.9 Installation should always be carried out by a qualified electrician or a competent person in accordance with current electrical regulation,
protected by a suitably rated isolator and fuse or type 3 mcb.
1.1.10 This heater is IP55 rated and is suitable for outdoor use. To maintain the protection rating all connections to the mains must be done with
a minimum of IP55 equipment.
1.1.11 The mains lead is made from high temperature cable, not a standard PVC cable and as such should not be replaced without consulting a
suitable qualified electrician.
1.1.12 Ensure that the mounting bracket is adequately earthed.
1.1.13 Use of an extension cord is not recommended.
1.2 GENERAL SAFETY INSTRUCTIONS
Familiarise yourself with the applications and limitations of the heater.

Ensure the heater is in good order and condition before use. If in any doubt do not use the unit and contact an electrician.

Only use recommended attachments and parts. To use unauthorised parts may be dangerous and will invalidate your warranty.

Check that element guards are in place, undamaged and firmly attached.

Keep tools and other items away from the heater when it is in use.

Keep the work area clean and clear of unnecessary items.

Keep children and unauthorised persons away from the heater, as it gets very hot.

Disconnect from mains and allow to cool before moving or attempting any cleaning or maintenance.

DO NOT subject the heater to prolonged exposure to water. The product is IP55 rated.

DO NOT locate the heater below the power outlet.

DO NOT move the heater whilst in operation or even when still warm.

DO NOT touch the heater element, even when cold.

DO NOT disassemble the heater for any reason. This heater must be checked by qualified personnel only.

DO NOT use this heater to perform a task for which it has not been designed.

WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating.

When not in use, store the heater carefully in a safe, dry, child proof location.

WARNING! Never touch the element directly with fingers. Use a soft cloth, otherwise the tube may get damaged.

WARNING! Ensure the heater is at least 1m from any object.

INSTRUCTIONS FOR:

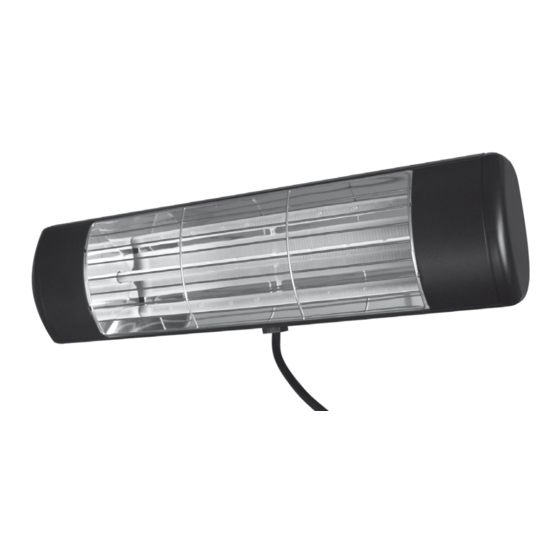

INFRARED hEATER 1500W
mODEl No
Original Language Version
IWMh1555
:
IWmH1555 Issue: 2 - 15/04/10
