Rapsodo HITTING 2.0 User Manual
Hide thumbs
Also See for HITTING 2.0:
- User manual (17 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Rapsodo HITTING 2.0
Summary of Contents for Rapsodo HITTING 2.0
- Page 1 HITTING 2.0 USER MANUAL Powered by: Rapsodo...
-
Page 2: Table Of Contents
What’s Inside the Box Rapsodo Cloud + Diamond App Product Overview Operating the Monitor Understanding the Monitor LED Displays Operating the Rapsodo Computing Engine (RCE) Understanding the RCE LED Displays Charging the Devices Pairing the RCE and Diamond App Device Placement and Setup... -
Page 3: What's Inside The Box

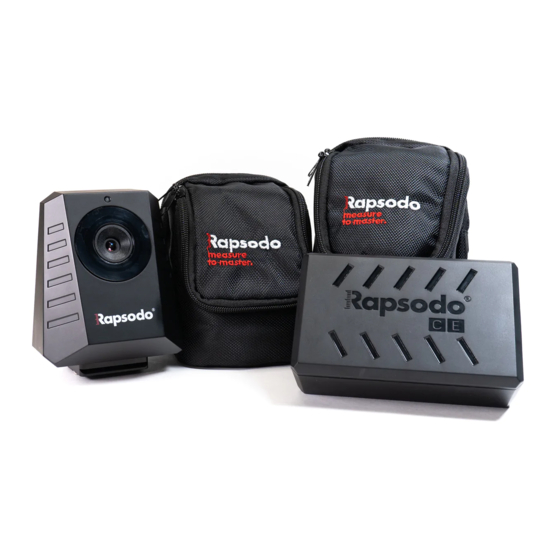

What’s Inside the Box Monitor Protective Tank & RCE USB Cables & Charger Measuring Tape Monitor Clip Protective Cases... -
Page 4: Rapsodo Cloud + Diamond App
Rapsodo CLoud + Diamond App Create a coach account and player profiles at cloud.rapsodo.com. Log in Credentials will be the same for Cloud & Diamond App Rapsodo Diamond App must be downloaded in order to use HITTING 2.0 Go to the Apple App Store and search... -
Page 5: Product Overview
PRODUCT Overview Monitor Clip Tank... -
Page 6: Operating The Monitor
OPERATING THE MONITOR Turning the Monitor ON To turn the monitor on, press the power button. The front LED display will show indicating the monitor is on but not ready to measure. The rear LED will show when ready to connect. Turning the Monitor OFF Press the power button. -
Page 7: Understanding The Monitor Led Displays
understanding the monıtor led dısplays Front LED Display Rear LED Display The front LED display provides information on the The rear LED display provides information on Green light” monitor status, and will give the “ to hit connectivity and battery. This display will be when the device is ready to measure. -
Page 8: Operating The Rapsodo Computing Engine (Rce)
OPERATING THE RAPSODO COMPUTING ENGINE (RCE) Turning the RCE ON To turn the RCE on, press the power button. After 10-15 seconds the power LED will turn on and the RCE will be ready to connect to the monitor. Turning the RCE OFF Press the power button. -
Page 9: Understanding The Rce Led Displays
understanding the rce led dısplays Power Battery Monitor Connection to App RCE and monitor connected. RCE and monitor connected to application, needs calibrated or on ‘Pause Mode’ . Ready to record data. Data processing. RCE switched off and charging. Warning for low battery, please recharge monitor. RCE turned on, not connected to app and monitor. -
Page 10: Charging The Devices
Charging the devices Charging the Monitor The battery can be charged by connecting the included Micro-USB cable into the port on the rear monitor panel. The rear LED will show AMBER indicating the monitor is charging. The rear LED will switch off indicating the device has been sufficiently charged. The LED indication will FLASH RED indicating the battery charge is getting low and the... -
Page 11: Pairing The Rce And Diamond App
PAIRING THE rce and Diamond app Connect the RCE to the monitor via USB to Micro-USB. Press the power button on the monitor and RCE. Connect to Rapsodo Wi-Fi in iPad settings. Rapsodo Diamond App Open and press the Wi-Fi Connection button. -
Page 12: Device Placement And Setup
DEVICE PLACEMENT AND SETUP NOTE: Rapsodo HITTING 2.0 operates in a tank. Correct positioning is important to get accurate results. Internal Tank Set-Up 1.1. Attach monitor to mount plate. 1.2. Place RCE in housing. 1.3. Connect USB from monitor to RCE. - Page 13 calıbratıon Select recalibrate from devices tab in bottom right-hand corner. Adjust monitor angles to 20 degrees and 90 degrees. To calibrate the monitor have a person stand on the center of home plate. The red line in the azimuth view should go directly down the middle of home plate.
-
Page 14: Troubleshooting Table
Troubleshooting Table App shows low Charge RCE and monitor separately. monitor battery Results seem Make sure the tank is placed at 14’ and you have correctly calibrated the monitor. inaccurate Can’t connect Disconnect and reconnect to Wi-Fi and Diamond App, make sure monitor is green. -
Page 15: Specifications
Specifications Launch Angle Exit Velocity Exit Velocity is the speed of the ball as Launch Angle is the vertical angle at which the ball leaves the bat after con- it comes off the bat after contact. tact. Direction Spin Rate The direction, plotted on a diamond, The rate at which the ball spins during that an in-play ball takes in flight. -
Page 16: Diamond App
APP Requirements: Rapsodo Diamond App. Rapsodo Team Membership. iPads: iPad Pro 2nd Generation or newer. Most recent iOS software. After adding your player roster in Diamond App cloud.rapsodo.com (See Page 2), continue with the following. Starting a Session: See Pairing the RCE & Diamond App (Page 9) and Calibration (Page 11) section of user manual. - Page 17 dIAMOND APP Tee: Stationary setting where pitch speed is 0 mph. Soft Toss: Front toss setting where pitch speed is under 35 mph. Batting Practice: Multi-option function where you can switch from Tee, Soft-toss, and Live within the same session. Pitching Machine: Used only in Live/BP mode where incoming pitch speed is over 35 MPH.
- Page 18 Finish session in bottom right-hand corner Connect to Internet (Wi-Fi) Open Rapsodo Diamond App go to Settings > Upload Progress > and select the arrows in the top left corner. Arrows will start spinning, leave app open and awake until all files have been uploaded in the progress bar.
-
Page 19: Game Mode
Minimum iPads: iPad Pro, iPad 7th generation, iPad 8th generation, iPad 9th generation Getting Started - Linking Unit to Game Mode License HITTING 2.0 Turn on but do not connect to Rapsodo Wi-Fi. While connected to Internet (Wi-Fi), open Rapsodo Diamond App. Go to Settings > Subscription > License > Link Device Once Link Device is selected, your RCE will be in the available devices. - Page 20 GAME MODE GAME MODE How to connect to Game Mode: Connect to Rapsodo Wi-Fi Rapsodo Diamond App > Play > Refresh Open Once sessions appear, scroll and select Game Mode. Screen should switch to all blue. Do not exit out of...
-
Page 21: General Information
You need to be aware of these Warranty detailed information and return policy can be kinds of products in the environment where Rapsodo found online at HITTING 2.0 is used, as they may cause interferences. www.rapsodo.com/pages/return-policy. Use In Well-Lit Environments Regulatory notice: Waste electrical and electronic equipment Rapsodo HITTING 2.0 should be used in well lit... -
Page 22: Support/Contact
Support/Contact If you have any questions or need any assistance, please reach out to your dedicated account manager, or contact us at: support@rapsodo.com 1.844.772.7763 www.rapsodo.com...
