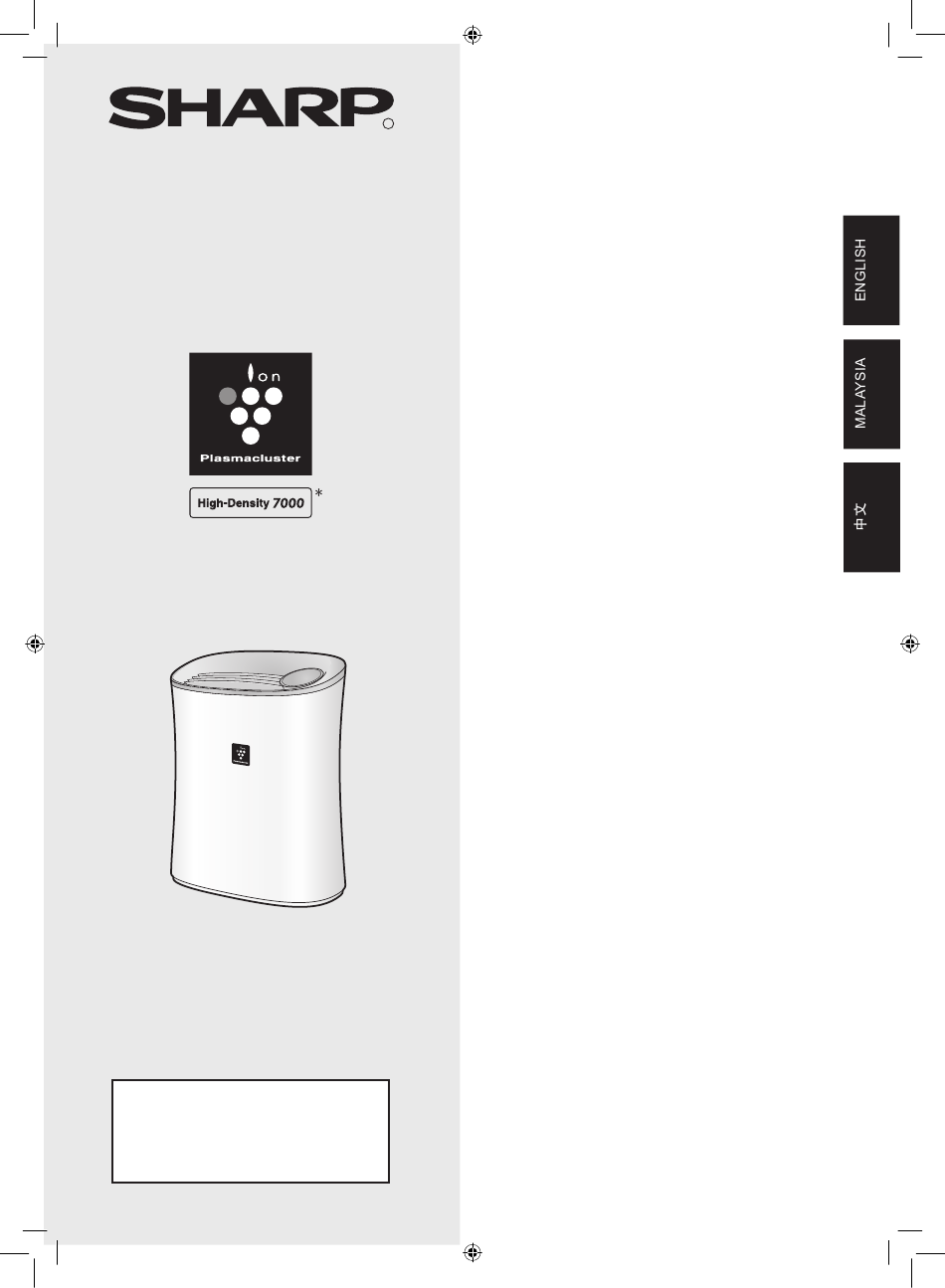

FP-F30E
FP-F30L
"Plasmacluster" and "Device of a cluster of grapes" are
trademarks of Sharp Corporation.
*The number in this technology mark indicates an
approximate number of ions supplied into air of 1 cm
which is measured around the center of a room with
the "high-density plasmacluster 7000" applicable floor
area (at 1.2 m height above the floor) at the medium
wind volume in air purifying mode, when an air purifier
using the high-density plasmacluster ion evolving
device is placed close to a wall. This product is
equipped with a device corresponding to this capacity.
Free standing type
Jenis berdiri sendiri
站立式
OM_FP-F30E_EN_MA_CS.indb 1
R

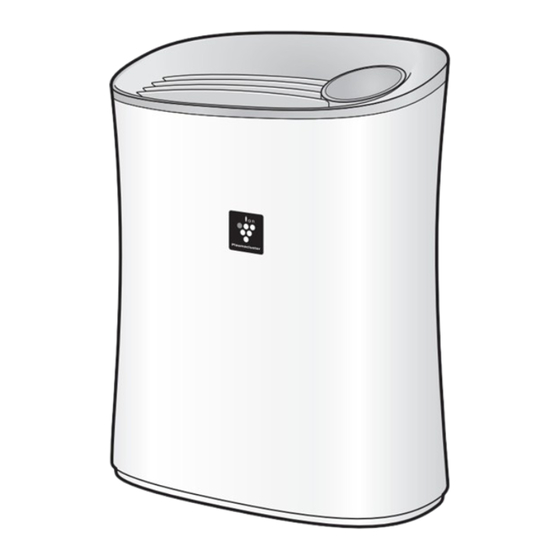

AIR PURIFIER
OPERATION MANUAL
PEMBERSIH UDARA
BUKU PANDUAN OPERASI
空气净化器操作手册
,
3
2/9/2558 BE 4:24 PM
Advertisement
Related Manuals for Sharp FP-F30E
Summary of Contents for Sharp FP-F30E
- Page 1 BUKU PANDUAN OPERASI 空气净化器操作手册 “Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation. *The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm which is measured around the center of a room with the “high-density plasmacluster 7000”...
- Page 2 Please read before operating your new Air Purifier The air purifier draws in room air from the air intake, passes the air through a pre- Filter, a HEPA Filter inside of the unit, then discharges the air through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the filter.
-
Page 3: Table Of Contents
*When air is drawn through the filter system. Thank you for purchasing the SHARP Air Purifier. Please read this manual carefully. Before using this product, be sure to read the section: “Important Safety Instructions.”... -
Page 4: Important Safety Instructions
• Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior. • Only a Sharp Authorized Service Centre should service this air purifier. Contact the nearest Service Centre for any problems, adjustments, or repairs. - Page 5 CAUTIONS CONCERNING OPERATION • Do not block the intake and/or air outlet. • Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam. • Do not lay the unit down when using. •...
-
Page 6: Part Names
PART NAMES FRONT BACK Main Unit HEPA Filter Air Outlet Upper Tabs Fan Speed Indicator Lights (green) Back Panel (Pre-Filter) MODE Button / LIGHT ON/OFF Button Bottom Tabs (Press 3 sec.) Plasmacluster Ion Indicator Light (blue) Handle Plasmacluster Ion ON/OFF Button Date Label POWER ON/OFF Button Power Cord... -
Page 7: Filter Installation
FILTER INSTALLATION Be sure to remove the power plug from the wall outlet. To maintain the quality of the filter, it is installed in the main unit and packed in plastic bag. Be sure to remove the filter from the plastic bag before using the unit. Replace the Back Panel to the Remove the Back Panel. -
Page 8: Operation
OPERATION CLEAN AIR START STOP • Select the desired fan speed. • Unless the power cord has been unplugged, the operation starts in the previous mode it was operated in. HAZE The unit operates at HIGH fan speed for 60 minutes and then alternates between Low and High level for 20 minutes each. - Page 9 Light Control You can set the Plasmacluster Ion Indicator to OFF when the Plasmacluster Ion Indicator is bright. NOTE • When the unit starts operation, the more 3 sec. more 3 sec. Plasmacluster Ion Indicator always lights. • In SLEEP mode, Light Control button doesn’t operate.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE To maintain optimum performance of this air purifier, please clean the unit including the filter periodically. Be sure to disconnect the power cord from the wall outlet before performing any maintenance. BACK PANEL (Pre-filter) Gently remove dust from the back panel, using a vacuum cleaner attachment or similar tool. - Page 11 Be sure to remove the power plug from the wall outlet. FILTER REPLACEMENT GUIDELINES Replacement timing About 2 years after operating Do not wash and reuse the filter The filter life and replacement period are based on the condition of smoking 5 cigarettes per day and the dust collection power is reduced by half compared with that of new filter.
-
Page 12: Troubleshooting
TROUBLESHOOTING Before calling for repair, please review the list below, since the problem may not be a unit malfunction . SYMPTOM REMEDY (not a malfunction) Dust and smoke are not removed. • Clean or replace the filter if they appear to be heavily soiled. -
Page 13: Specifications
SPECIFICATIONS Power supply 220-240V 50-60Hz Fan Speed Adjustment SLEEP Speed Rated Power Operation Fan Speed 180m /hour 120m /hour /hour Recommended Room Size ~21m 2 *1 High density Plasmacluster ion recommended room size ~16m 2 *2 Cord Length 2.0m Dimensions 400mm(W)x182mm(D)x463mm(H) Weight 4.0kg... - Page 14 Sila baca sebelum mengendalikan Pembersih Udara baru anda Pembersih udara ini akan menyedut udara bilik dari salur masuk udara, mengalirkan udara melalui Prapenapis, iaitu Penapis HEPA di dalam unit, kemudian mengeluarkan udara tersebut melalui salur keluar udara. Penapis HEPA boleh menyingkirkan 99.97% habuk sekecil 0.3 mikron yang dapat melepasi penapis.
- Page 15 *Apabila udara dialirkan keluar melalui sistem penapisan. Terima kasih kerana membeli Pembersih Udara SHARP ini. Sila baca manual ini dengan teliti. Sebelum menggunakan produk ini, pastikan anda membaca bahagian: “Arahan Keselamatan Penting.” Selepas membaca manual ini, simpan ia di lokasi yang mudah dicari untuk rujukan pada masa akan datang.
- Page 16 • Sila berhati-hati semasa membersihkan unit ini. Bahan pencuci yang kuat mengakis boleh merosakkan bahagian luar unit. • Hanya Pusat Servis Sharp yang Sah boleh menservis pembersih udara ini. Sila hubungi Pusat Servis yang berdekatan bagi sebarang masalah, pelarasan atau pembaikan.
- Page 17 AMARAN BERKAITAN OPERASI • Jangan halang salur masuk dan/atau salur keluar udara. • JANGAN gunakan unit bedekatan objek panas, seperti dapur masak atau alat pemanas atau di mana ia mungkin terkena wap air. • Jangan baringkan unit semasa menggunakannya. • Sentiasa pegang pemegang di bahagian belakang unit apabila mengalihnya. •...
- Page 18 NAMA-NAMA BAHAGIAN DEPAN BELAKANG Unit Utama Penapis HEPA Salur Keluar Udara Tab Atas Lampu Penunjuk FAN SPEED (hijau) Panel Belakang (Prapenapis) Butang MOD / Tab bawah LAMPU ON/OFF (Tekan 3 saat) Lampu Penunjuk Ion Plasmacluster (biru) Pemegang Butang Ion Plasmacluster ON/OFF Label Tarikh Butang POWER ON/OFF Kord Kuasa...
- Page 19 PEMASANGAN PENAPIS Pastikan anda menanggalkan palam kuasa dari soket dinding. Untuk mengekalkan kualiti penapis, ia dipasang di unit utama dan dibungkus di dalam beg plastik. Pastikan anda mengeluarkan penapis daripada beg plastik sebelum menggunakan unit ini. Pasang semula Panel Belakang Tanggalkan Panel Belakang.
- Page 20 OPERASI CLEAN AIR MULA BERHENTI • Pilih laju kipas yang diingini. • Kecuali jika kord kuasa sudah dicabut, operasi akan bermula dalam mod yang sama dengan operasi sebelumnya. JEREBU Unit ini beroperasi pada kelajuan kipas yang tinggi selama 60minit, kemudian ia akan berselang-seli antara tahap Rendah dan Tinggi selama 20minit setiap satunya.
