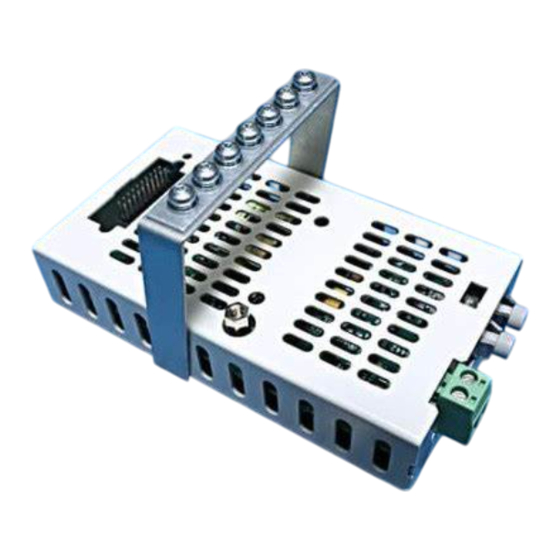

- Page 1 ABB Drives User’s manual FEA-01 F-series Extension Adapter 3AUA0000071412 REV A Effective: 2010-01-08 © 2010 ABB Oy. All rights reserved.
-
Page 3: General Safety Instructions
FEA-01 user’s manual 3 FEA-01 user’s manual Safety instructions Overview The chapter contains the safety instructions that you must follow when installing and operating the FEA-01 F-series Extension Adapter. Read the safety instructions before you work on the unit. In addition to the safety instructions given below, read the complete safety instructions of the specific drive you are working General safety instructions WARNING! Ignoring the following instructions can cause... - Page 4 ) cables (max. length 200 m). HCS cables allow longer connection distances because of their ® lower attenuation. HCS is a registered trademark of SpecTran Corporation. The optical component types used in ABB drive equipment are presented in Settings and connections.
-
Page 5: Power Supply
FEA-01 user’s manual 5 Settings and connections Layout The following figure shows the layout and dimensions of the FEA-01, indicating the F-series module connector and front components such as the diagnostic LED, fiber-optic transmitter (V1), receiver (V2) and power supply connector. F-series module connector 68 mm [2.7 in]... -
Page 6: Diagnostic Led
6 FEA-01 user’s manual Diagnostic LED The green diagnostic LED on the circuit board of the FEA-01 unit can be viewed on the front of the metal housing. The LED is lit when the FEA-01 is powered. If the LED is off when power is applied, there is a fault. -
Page 7: Mechanical Installation
FEA-01 user’s manual 7 Mechanical installation The housing of the FEA-01 unit has two spring-loaded fasteners for vertical or horizontal 35 × 7.5 mm DIN rail mounting. The mounting rail must be earthed to a noiseless earth. If the rail is not mounted on a properly earthed base, a separate earthing conductor must be used. - Page 8 8 FEA-01 user’s manual Technical data Housing: Painted and zinc-plated sheet steel Dimensions: 67 × 120 × 68 mm Mounting: Onto 35 × 7.5 mm DIN rail Power supply connection • Voltage: 24 V DC ±10% • Current consumption: Refer to I/O extension module’s User’s Manual.
-
Page 9: Product Training
Product and service inquiries Address any inquiries about the product to your local ABB representative, quoting the type designation and serial number of the unit in question. A listing of ABB sales, support and service contacts can be found by navigating to www.abb.com/drives selecting Sales, Support and Service network. - Page 10 Contact us ABB Oy ABB Inc. ABB Beijing Drive Systems Drives Automation Technologies Co. Ltd. P.O. Box 184 Drives & Motors No. 1, Block D, FI-00381 HELSINKI 16250 West Glendale Drive A-10 Jiuxianqiao Beilu FINLAND New Berlin, WI 53151 Chaoyang District Tel +358 10 22 11 Beijing, P.R.
