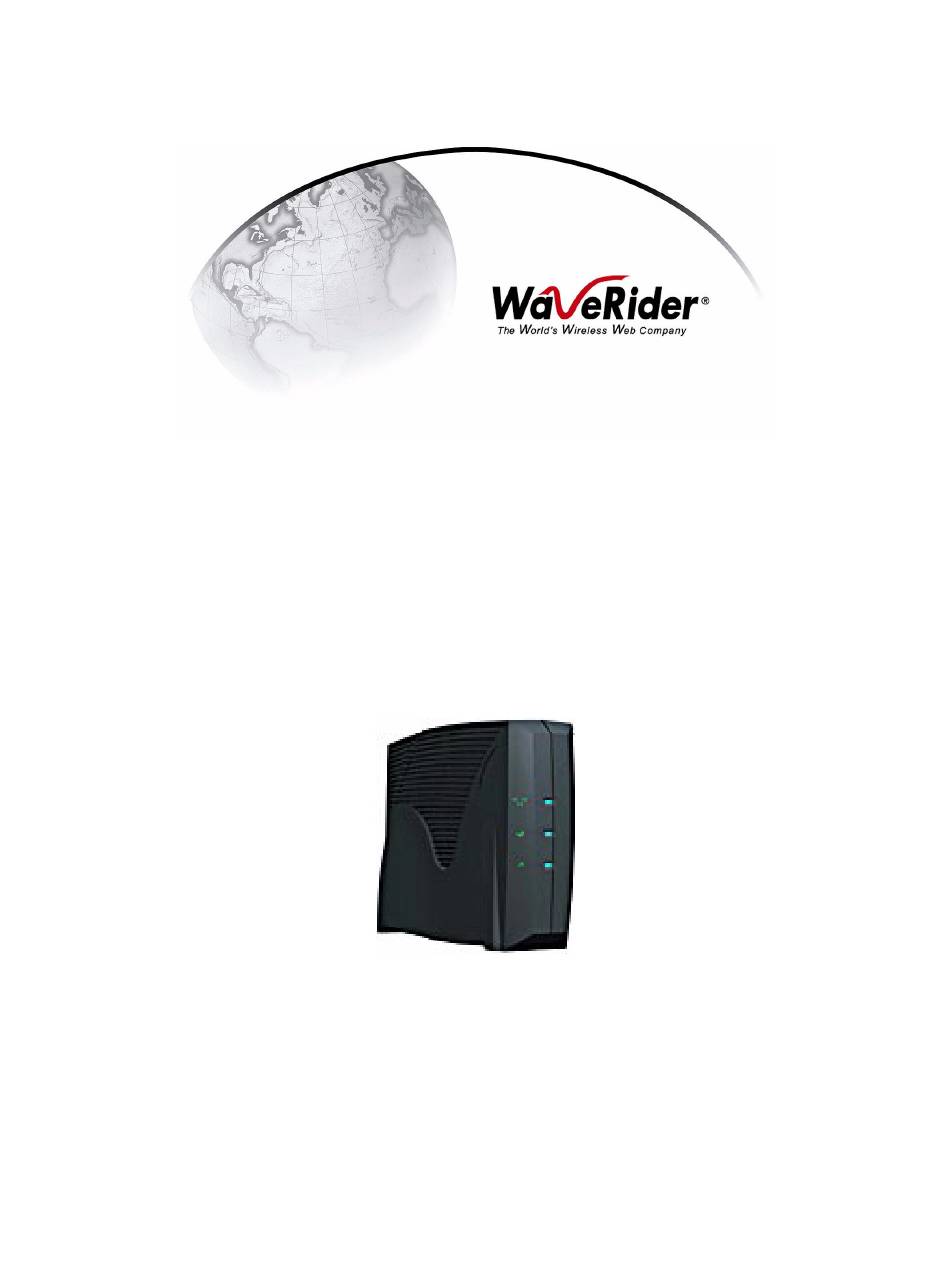

- Page 1 EUM3000 Quick Start Guide Version D...
- Page 2 — — This page is intentionally left blank...
-
Page 3: Table Of Contents
Connecting Kit Components ......7 Testing Your EUM3000 ......11 Mounting the Antenna . - Page 4 — — This page is intentionally left blank...
- Page 5 Tables Table 1 User Connectivity LED Status Displays ..12 Table 2 RSSI LED Status Displays ....12 Table 3 Antenna Mount Guidelines .
- Page 6 — — This page is intentionally left blank...
- Page 7 Figures Figure 1 EUM3000 Components ..... . 2 Figure 2 Connecting the EUM3000 Components ..7 Figure 3 Connect the DC Power Cord to the EUM3000 .
- Page 8 — — This page is intentionally left blank...
-
Page 9: Opening The Box
Opening the Box Before you install the EUM3000, verify that your kit includes the following items: • End user modem • Antenna with pre-connected 3-metre cable • Flush-mountable antenna bracket • Two antenna-mount suction cups, two drywall plugs and two screws •... -
Page 10: Figure 1 Eum3000 Components
NOTE: The antenna-mount suction cups, drywall plugs and screws are not shown in Figure WARNING! Before installing operating EUM3000 modem, you must familiarize yourself with the contents of this guide. WaveRider assumes liability problems resulting from a failure to adhere to these procedures, or other recognized general safety precautions. - Page 11 The RF connector on the EUM carries a DC voltage, and permanent equipment damage may occur without the use of a DC blocking device. For the EUM3000, the WaveRider proprietary antenna acts as a DC blocking device. Connect the antenna to the EUM unit before operating the EUM3000 system.
- Page 12 — — This page is intentionally left blank...
-
Page 13: Choosing A Location
Choosing a Location The location of the EUM and the antenna directly affects the performance of your EUM3000 system. Before you connect all the components, follow the guidelines in this section to choose the best position for the EUM and the antenna. - Page 14 — — This page is intentionally left blank...
-
Page 15: Connecting Kit Components
EUM: • The Antenna • Your Home Computer • The DC converter When you have completed the above tasks, connect the DC converter to the AC power supply. Figure 2 Connecting the EUM3000 Components APCD-LM013-D... -
Page 16: Figure 3 Connect The Dc Power Cord To The Eum3000
Connecting Kit Components To Connect the EUM3000 Components 1. Hand-screw the antenna cable onto the corresponding connector at the back of the EUM3000 (refer to pointer 1 in Figure 2). Do not use wrenches or pliers. Do not cross-thread or overtighten. -
Page 17: Figure 4 Connect The Ac Power Cord
DC power cable from the EUM. Your EUM3000 uses a custom antenna cable and connector. If you need to extend this cable, contact your Wireless Internet Service Provider (WISP). - Page 18 — — This page is intentionally left blank...
-
Page 19: Testing Your Eum3000
Testing Your EUM3000 Check the the LED (Light Emitting Diode) indicators on the front of the modem to ensure that your EUM3000 is functioning properly and receiving an adequate signal. User Connectivity LED RSSI LED Power LED Figure 5 EUM3000 Front Panel LEDs... -
Page 20: Table 1 User Connectivity Led Status Displays
Testing Your EUM3000 To Verify Proper EUM3000 Function 1. Check the User Connectivity LED to test the link to between the EUM3000 and your computer. Refer to Table 1 for an explanation of the different User Connectivity status displays. Table 1 User Connectivity LED Status Displays The link to your computer is not functioning. -
Page 21: Mounting The Antenna
Figure 6 Rear View of Antenna Bracket NOTE: Bending the antenna cable too sharply can degrade your EUM3000 performance. Never allow more than a 1.25 cm (0.5 in.) bend radius. If a quarter (25-cent piece) fits into the curve, the bend is acceptable. -
Page 22: Table 3 Antenna Mount Guidelines
Mounting the Antenna Your EUM3000 Kit includes suction cups, drywall plugs, and screws to allow a variety of mounting options: Table 3 Antenna Mount Guidelines Use on flat, smooth surfaces, such as Suction Cups glass, plastic, laminates or metal. Remove all grease, oil and grit before attaching suction cups. -
Page 23: Table 4 Surface Mounting Options For The Antenna
Mount the antenna on solid furniture (a Bottom Mount desk or shelf) or on a window sill. WARNING! The EUM3000 has been designed and manufactured to meet FCC RF exposure standards mobile transmitting devices. To comply with these standards... -
Page 24: Figure 7 Mounting The Antenna In The Bracket
Figure 7 Mounting the Antenna in the Bracket NOTE: The location, position and orientation of the EUM3000 affects the strength and stability of your Internet connection. Pointing the antenna at buildings or other obstacles often impedes communications, but some surfaces may provide desirable ’signal bounce’. -
Page 25: Troubleshooting
Q: My EUM3000 keeps shutting off automatically. How can I prevent this? A: Your unit may be overheating due to inadequate ventilation. Lightly touch the casing of your EUM3000. If the casing is hot, find a new location where the EUM can stand upright and away from other APCD-LM013-D... - Page 26 Troubleshooting objects that may block airflow through its vents. If these measures have no effect, discontinue using the EUM3000, and contact your WISP. APCD-LM013-D...
-
Page 27: Regulatory Notices
Regulatory Notices Industry Canada The EUM3000 has been designed and manufactured to comply with IC RSS-210. The IC certification number for the EUM3000 is TBD (certification pending). Federal Communications Commission The EUM3000 has been designed and manufactured to comply with FCC Part 15. - Page 28 Telephone: +1 416–502–3161 Fax: +1 416–502–2968 Email: techsupport@waverider.com URL: www.waverider.com...
