INSTALLATION AND MAINTENANCE INSTRUCTIONS
FW-RM(A) Wireless Relay Module
SPECIFICATIONS
Maximum Operating Voltage:
Maximum Current Draw:
Average Operating Current:
Maximum Transmit RF Power:
Radio Frequency Range:
Temperature Range:
Humidity:
Battery Type:
Battery Life:
Battery Replacement:
Dimensions:
Accessories:
RELAY CONTACT RATINGS:
CURRENT RATING
2 A
3 A
2 A
0.46 A
0.7 A
0.9 A
0.5 A
0.3 A
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the control panel installation manual and the SWIFT® Wireless Manual for
detailed system information. If the modules will be installed in an existing
operational system, inform the operator and local authority that the system
will be temporarily out of service. Disconnect power to the control panel be-
fore installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
The FW-RM(A) Relay Module is intended for use with a wireless gateway or
wireless fire alarm control panel (FACP). It allows a compatible control panel
to switch discrete contacts by code command. The relay contains one isolated
set of Form-C contacts, which operate as a SPDT switch and are rated in ac-
cordance with the table in this manual. A single relay module may be used
to activate only one output device. Circuit connections to the relay are not

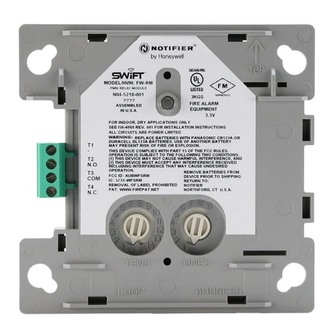

FIGURE 1. CONTROLS AND INDICATORS
3.3 VDC
5.0 mA (LED on)
210uA
17dBm
902-928 MHz
32°F to 120°F (0°C to 49°C)
10% to 93% Non-condensing
4 Panasonic CR123A or 4 Duracell DL123A
2 year minimum
Upon TROUBLE BATTERY LOW display and/or during annual maintenance
4¼in. H x 4¼in. W x 1½in. D
SMB500(-WH) electrical box (preferred mounting option)
MAXIMUM VOLTAGE
25 VAC
30 VDC
30 VDC
30 VDC
70.7 VAC
125 VDC
125 VAC
125 VAC
C1095B-00
LOAD DESCRIPTION
PF = 0.35
Resistive
Resistive
(L/R = 20ms)
PF = 0.35
Resistive
PF = 0.75
PF = 0.35
supervised by the module. The device communicates through a robust, bi-di-
rectional mesh network to the gateway and/or FACP. Rotary dial switches are
provided for setting the module's address. The module has a panel controlled
LED indicator. (See Figure 1.)
FACEPLATE
The faceplate includes a magnet for activation and tamper resistance. (See
Figure 2.) The faceplate magnet activates communication to the panel, there-
fore, the faceplate must be installed for the module to work properly. The
magnet also activates a supervisory tamper fault at the panel if the nameplate
is removed. Do NOT remove this magnet. The faceplate for a wireless module
CANNOT be replaced with the faceplate of a standard wired module.
FIGURE 2. FACEPLATE INTERIOR
1
