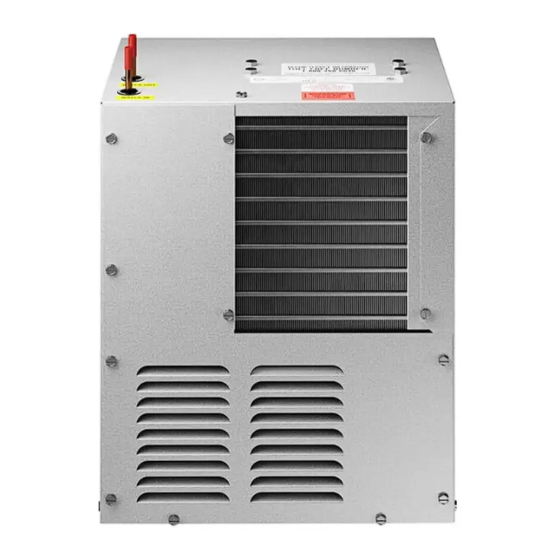

- Page 1 SJ8QGRN_1C SJ8GRN Refrigeration Package INSTALLATION, CARE AND USE MANUAL (630) 574-8484 Halsey Taylor Page 1 2000000697 (Rev. A - 07/22)
- Page 2 General ......3 SJ8GRN Series......7 Safety Alert Symbol.
-
Page 3: Think Safety
1.1 General injury. The signal word that CAUTION Halsey Taylor cannot anticipate every possible indicates a hazard with circumstance that might involve a potential hazard a low level of risk which, if not avoided, could result in during the installation of this product. The warnings minor or moderate injury. and instructions in this Installation / Use & Care The signal word that indicates manual are, therefore, not all-inclusive. -
Page 4: Personal Protection
Placing fingers in or around the cutting blades Prior to any maintenance, make sure the unit is could result in serious personal injury. unplugged and circuit breakers are turned OFF. Halsey Taylor (630) 574-8484 Page 4 2000000697 (Rev. A - 07/22) -
Page 5: General Information
USA/Canada Customer Care a properly ventilated, non-visible location. Phone: 800.476.4106 This manual contains Installation, Use & Care Email: CustCare@HalseyTaylor.com instructions for the SJ8GRN series Remote Chiller International Customer Care units. Followed carefully, these instructions will Phone: 630.575.4755 result in trouble-free installation of this Halsey Taylor Email: IntlCare@HalseyTaylor.com product. - Page 6 338mm LEGEND A = 1/4" O.D. TUBE WATER OUTLET B = 1/4" O.D. TUBE WATER INLET C = TEMPERATURE ADJUSTMENT D = ELECTRICAL 3 3/8" 87mm 16 3/4" 426mm Halsey Taylor (630) 574-8484 Page 6 2000000697 (Rev. A - 07/22)
-
Page 7: Tools And Supplies
• If inlet pressure is above 100 psig (0.69 MPa), Protective gloves a pressure regulator must be installed in water Hex driver supply line. Any damage caused by the water pressure outside its rated pressure is not covered by warranty. 5. Ratings 5.1 SJ8GRN Series Description SJ8GRN Electrical 115VAC, 60Hz, (See nameplate for Amperage), 1 phase Ambient Air Temp. 50-90 °F (10-32 °C) Water Pressure 20-100 psig (0.14-0.69 MPa) -
Page 8: Installation: Electrical Connection
This chiller is manufactured in such a manner that it does not in any way cause Ground taste, odor, color or sediment problems. Wire 8. Connect chiller to building supply with a shut-off valve and install the in-line strainer between the valve and chiller. 9. Electrical: Make sure power supply is identical in voltage, cycle, and phase to that specified on chiller serial plate. Never wire the compressor directly to the power supply. Halsey Taylor (630) 574-8484 Page 8 2000000697 (Rev. A - 07/22) -
Page 9: Service Adjustments
O-ring seal. To remove the plug from Chiller, relieve the water pressure, pull the collar towards the fitting and then pull the fitting from the tube. To install the plug, push the fitting straight onto the tubing until it reaches a positive stop, which should be approximately 3/4” (19mm). Refer page 10 for quick connect fittings. (630) 574-8484 Halsey Taylor Page 9 2000000697 (Rev. A - 07/22) - Page 10 IN POSITION TO RELEASE TUBE PUSHING TUBE IN BEFORE PULLING IT OUT HELPS TO Fig. 2 RELEASE TUBE Wiring Diagram COMPRESSOR OVERLOAD COLD CONTROL ( WATER ) RELAY CAPACITOR Fig. 3 Halsey Taylor (630) 574-8484 Page 10 2000000697 (Rev. A - 07/22)
- Page 11 4, 5 above water chiller or orders for repair parts MUST include model number and serial number of chiller, name and part number of replacement part. 11, 14 Fig.4 (630) 574-8484 Halsey Taylor Page 11 2000000697 (Rev. A - 07/22)
